Windows 10: New pc may use wrong DDR5 memory G.Skill F5-6400J3239G16GA2-TZ5RK at 64GB, works at 4800 &...

Roberts Xbox Series X · Sep 23, 2022

Hello Roberts Xbox Series X,How is your problem? Please let me know if there is any progress. Best Regards, Lenka Microsoft Community Support SpecialistI have a new pc built with the help of my dad, we put together a pc with an cooler master haf 700 evo case, my older computer that I posted here, still once and a while will ask me on bootup to reset it to default, I am guessing something in the older gigabyte desktop is failing but I don't know if it's the processor or memory in that pc, but so far my new one is working good, the only problem that I can tell the new pc has is with

:)

Macboatmaster · Sep 23, 2022

Bluescreen Memory Management Problems

Further to the above the ram is running 5200
Your system will run better with that ram at SPD which is
4800(JEDEC) MHz

Your ram
Controller0-DIMMA2
BankLabel : BANK 0
Manufacturer : G Skill Intl
MemoryType : DDR5
FormFactor : DIMM
Capacity : 16GB
Speed : 5200
Serial : 00000000
PartNumber : F5-5200J3636C16G
ECC : False
TypeDetail : {Synchronous}
and from
F5-5200J3636C16GX2-TZ5RKF5-5200J3636C16GA2-TZ5RK-G.SKILL International Enterprise Co., Ltd.

set SPD so that speed is 4800 and voltage is 1.10

NOTE
Not exactly the same but very similar
MSI Z690 Carbon DDR5 XMP and manual overclocks fail for XPG Lancer 5200 cas38 | MSI Global English Forum - Index

in my opinion you need to sort out the driver problem for the Nvidia card
Set the ram SPD and

IF all is ok leave it at that until MSI release the fully tested BIOS version update which at this time is only BETA
That BIOS update is mentioned in the link above and can be found here
AMI BIOS
Version
7D30v123(Beta version)
Release Date
2022-01-25
File Size
9.11 MB

Description
- Improving memory compatibility.
MPG Z690 CARBON WIFI

You currently have
SMBIOSBIOSVersion : 1.10
Manufacturer : American Megatrends International, LLC.
Name : 1.10
Version : ALASKA - 1072009
BIOSVersion : {ALASKA - 1072009, 1.10, American Megatrends - 50018}
ReleaseDate : 12/2/2021 7:00:00 PM

Brink · Sep 23, 2022

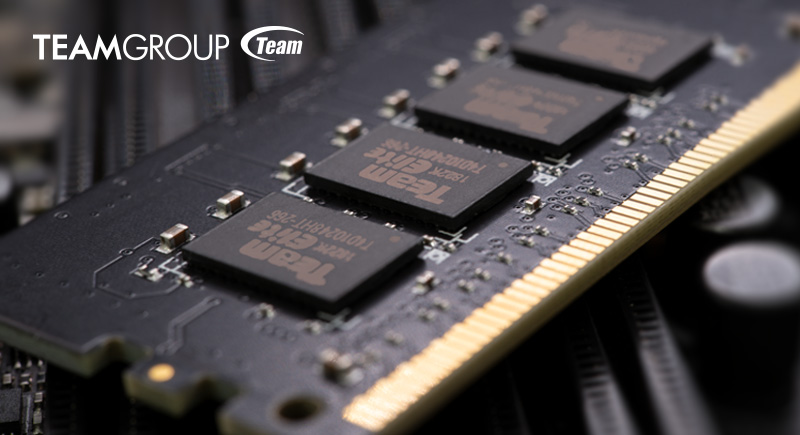

DDR5 memory by TEAMGROUP enters validation phase

Presently, TEAMGROUP is working hard at producing its first batch of DDR5 memory with the tentative specifications of 16GB, 4800MHz, and 1.1V for a single module. The company is cooperating with major motherboard manufacturers, such as ASUS, MSI, ASRock, and GIGABYTE, providing memory and working together with their R&D divisions to perform validation tests. Through the collaboration of R&D teams, TEAMGROUP was able to accelerate the development of its DDR5 memory by adjusting the initial parameters. The successful completion of the validation phase will confirm that the frequencies of standard DDR5 products surpass those of overclocked DDR4 products, and will represent another big step forward in the evolution of computer memory.

It is expected that consumers will not need to enter BIOS to enable the overclocking function as the DDR5 generation begins. After installing DDR5 memory, consumers can directly boot up their computers and experience the high performance without the overclocking step of DDR4. The powerful advantages of faster DDR5 will be instantly demonstrated and consumers will be able to effortlessly enjoy the extreme speed brought by the new generation.
Click to expand...

Source: TEAMGROUP Successfully Develops Consumer-Grade DDR5 Memory and Is First To Enter the Validation Phase With Motherboard Manufacturers-TEAMGROUP

Tweet

— Twitter API (@user) View on Twitter
Click to expand...

Brink · Sep 23, 2022

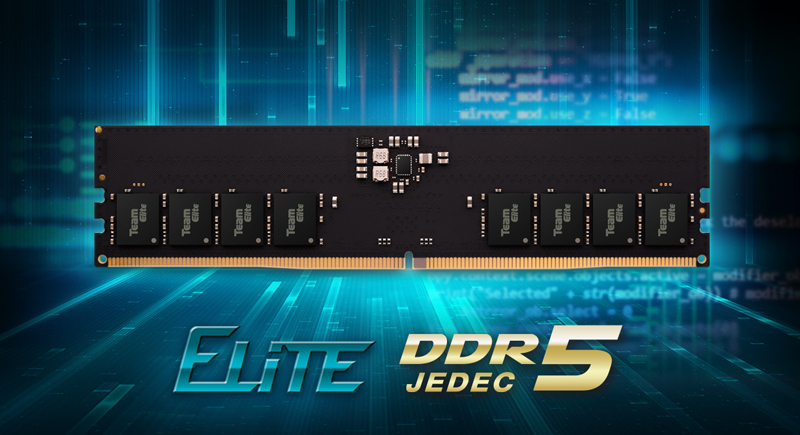

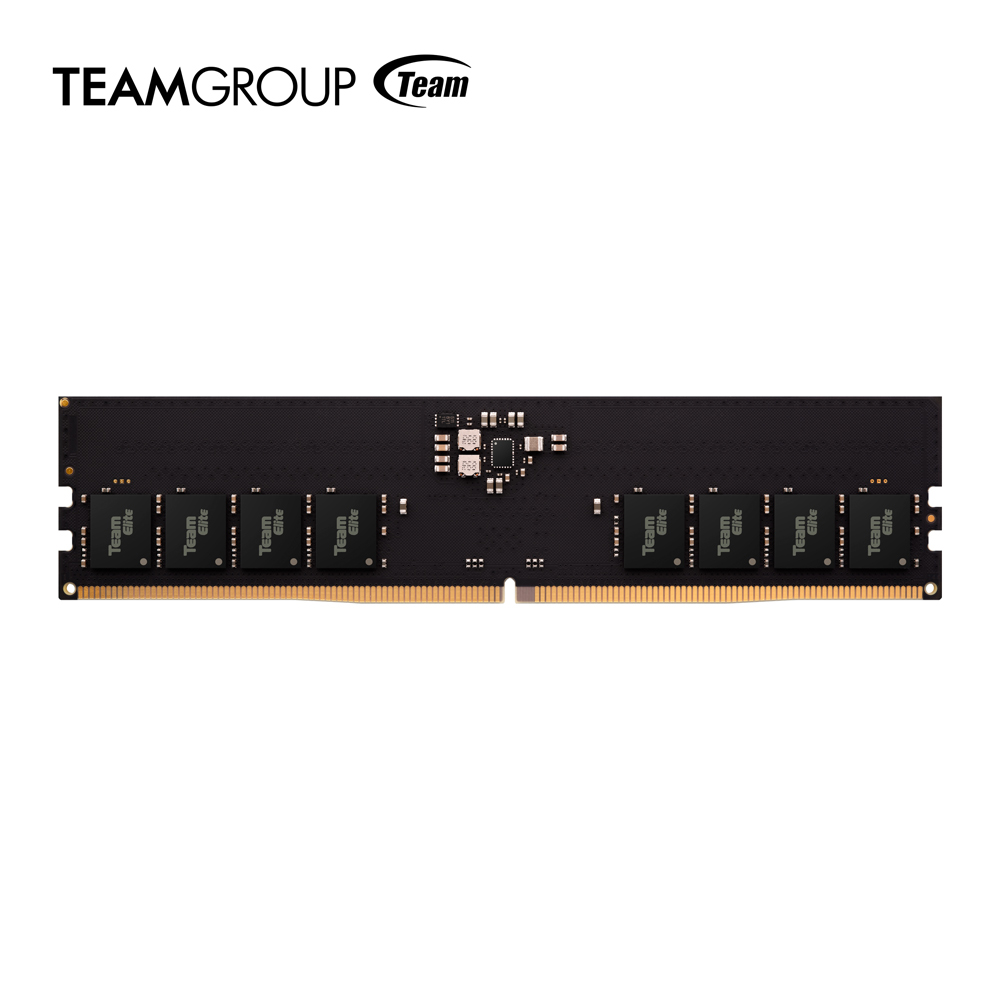

TEAMGROUP announcing Elite U- DIMM DDR5 memory module

At the end of 2020, TEAMGROUP reached a cooperation agreement with top DRAM wafer manufacturers and started working on DDR5 technology. Since then, TEAMGROUP has dedicated to the research and development of DDR5 modules, collaborating with various major motherboard manufacturers to ensure that each R&D stage undergoes comprehensive testing and to deliver products of the highest quality that the industry has ever seen. TEAMGROUP is leading the industry today as we announce our official launch of the world's first DDR5 memory module for desktops, the TEAMGROUP ELITE U-DIMM DDR5, which is estimated to be available on major EC platforms for consumers worldwide by the end of June and the beginning of July.

The initial launch of TEAMGROUP ELITE DDR5 memory module will support 16GBx2 of capacity at a frequency of 4800MHz, with a voltage of 1.1V CL40-40-40-77, which complies with the standard specifications defined by the JEDEC association. Compared to the maximum 3200MHz standard frequency in the DDR4 generation, the DDR5 is able to increase the speed to up to 50%. The low 1.1V voltage is also more energy efficient than its previous generation; to ensure minimum noise interference for the memory module, the power management is transferred from the motherboard onto the memory with an additional power management IC (PMIC) for more effective system load control. The most incredible feature of ELITE DDR5 is doubling the 16 banks of DDR4 to those of 32 in DDR5 to improve the IC structure, providing double access availability. An on-die ECC (error correction code) included in the DRAM IC is also available for self-recovery of the DRAM unit, ensuring that DRAM systems with DDR5 can obtain higher levels of stability.

The memory module is applicable for Intel 600 series motherboards with DDR5 compatibility. TEAMGROUP's DDR5 will be available globally at the end of June and the initial product launch will be hitting the shelves at Amazon US, Newegg, Amazon Japan, and various major EC platforms in Europe. Gamers, get ready for the first taste of the next generation and embrace the glory of the new DDR5 era with TEAMGROUP.

Click to expand...

Source: Leading the Pack: TEAMGROUP Steps into the New DDR5 Era Global Launch of the TEAMGROUP ELITE U- DIMM DDR5-TEAMGROUP
