Windows 10: NVMe SSD shown as two physical hard disks

I have just installed a Samsung 512 GB M.2 NVMe 970Pro SSD,.

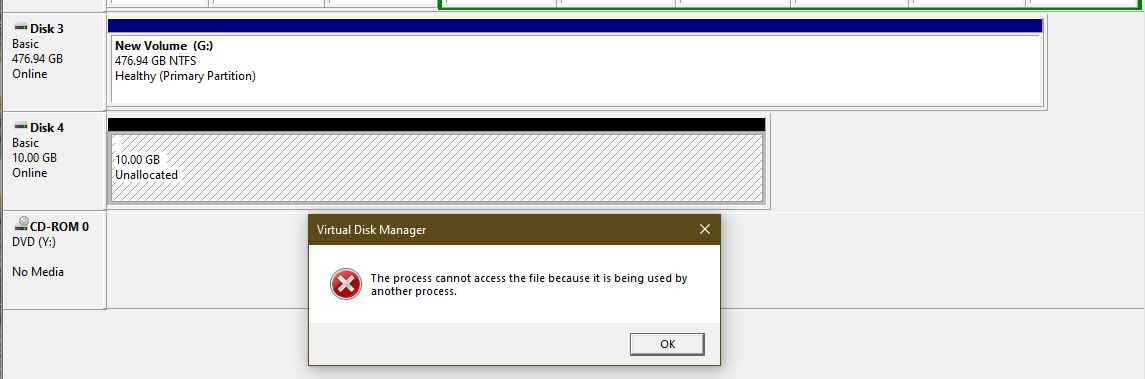

The system detected the new hardware, but to my surprise there are 2 Nos of Physical Hard disks, One 476.94GB/512, and the other 10GB/512.

Please see the attachment.



I formatted the bigger one, but could not do the same for the 10GB Partition.

Please help me manage this issue.

I want to make this SSD as the system drive - to have Windows installed on this.

My MOBO: ASUS ROG Strix B450-F Gaming

Processor: AMD Ryzen 5 2400 with Radeon Vega Graphics

RAM: 32 GB Corsair

:)



SSD not being shown in disk management

Western Digital got back to me and this solved my problem:

Thank you for your continued response.

Please perform the steps mentioned below to run Diskpart. Please note that following steps will erase all the data on the SSD including partitions and boot sector.

1. Open Command Prompt, Click on Start - Run - Type cmd and hit Enter.

2. Type diskpart, and then press ENTER to open the diskpart tool.

3. Type list disk, and then press ENTER. A list of available hard disks is displayed.

4. Type sel disk #number, and then press ENTER. Number is the number of the hard disk that you want to clean. The hard disk is now selected.

5. Type det disk, and then press ENTER. A list of partitions on the hard disk is displayed. Use this information to verify that the correct disk is selected.

6. Make sure that the disk does not contain required data, type clean all, and then press ENTER to clean the disk. All the partitions and all the data on the disk is permanently removed.

7. Type exit, and then press ENTER to close



Hard Rectangular Drive Could be the Hard Disk Answer to SSDs

You're probably right but until SSD's come down to a more reasonable price-level, I'm all for this kind of stuff. Can probably be a perfect stepping-stone from HDD to SSD.

If it ever gets to stores that is *Smile



Clone present nvme pcie ssd to replacement nvme pcie ssd?

I have a 500GB M.2 2280 NVMe PCIe SSD (boot drive) that I want to replace with a higher capacity M.2 card.

Where do I put the new SSD during the NVMe to NVMe cloning process? My mobo only has one M.2 slot for NVMe SSD's so do I want to use an external adapter for one of the M.2 cards? If so, do you have a recommendation?

If you have solved this issue for your desktop or laptop I would like your advice on if and what extra hardware you needed during the cloning.

please remember that I am dealing with PCIe NVMe drives ONLY. NO Sata is involved except possibly for a connecting cable from the desktop to an adapter. I am experienced with cloning SATA III drives but cloning NVMe is a little
new to me.

Computer: Dell XPS 8920, 32GB ram.

Present SSD: KXG50ZNV512G NVMe Toshiba 512GB

New SSD: CT13049074 Crucial P1 NVMe PCIe M.2 SSD 1TB (or 2TB if available soon) or similar storage device.

Windows 10 Pro for Workstations, version 1809.
