Windows 10: Random HDD Spikes after installing SSD

Hi everyone, I have a laptop with internal HDD inside and I was using that HDD for 2 years. It was running fine without 100% spikes, but accessing Windows, like start menu and search etc. was slow to open. So, I decided to buy a SSD only for OS and keeping HDD as external drive for games. So I got a WD 120GB 2.5" SSD and installed Windows without any problem. I did booted with SSD and everything was so fast as I expected. My friend was have a HDD Caddy and he gave it to me for setting my HDD as second storage. So, I put my 1TB WD HDD on it and replaced with my DVD Drive. And there was no problem after boot. I can access my files on HDD and launching my games without any problem. The real problem is, random spikes in HDD after installing this SSD. When I try to open start menu, search or notepad app, there's a sound coming from my HDD like it's turned off by itself and starting again and that menus & apps launching 3-4 seconds later after clicking. And this happening every time. Just like HDD is powers off after a time and starting again when launching something. I was checking constantly Task Manager to see what's the problem, then I saw some spikes in HDD part when this delays happens. So I put my SSD to caddy and HDD to internal port for testing, but it's same. I can't play games anymore. PC freezes for 2-3 seconds randomly. I don't know what to do, so I need some help. Thanks in advance.

HDD: Western Digital WD10JPCX-24UE4T0 - 1TB
SSD: Western Digital WDS120G2G0A Green - 120GB

PC Specs:
Windows 10 Home 64
Intel Core i5 - 6200u 2.3GHz to 2.8GHz
8GB RAM
Intel HD Grahpics 520 - AMD Radeon R5 M430

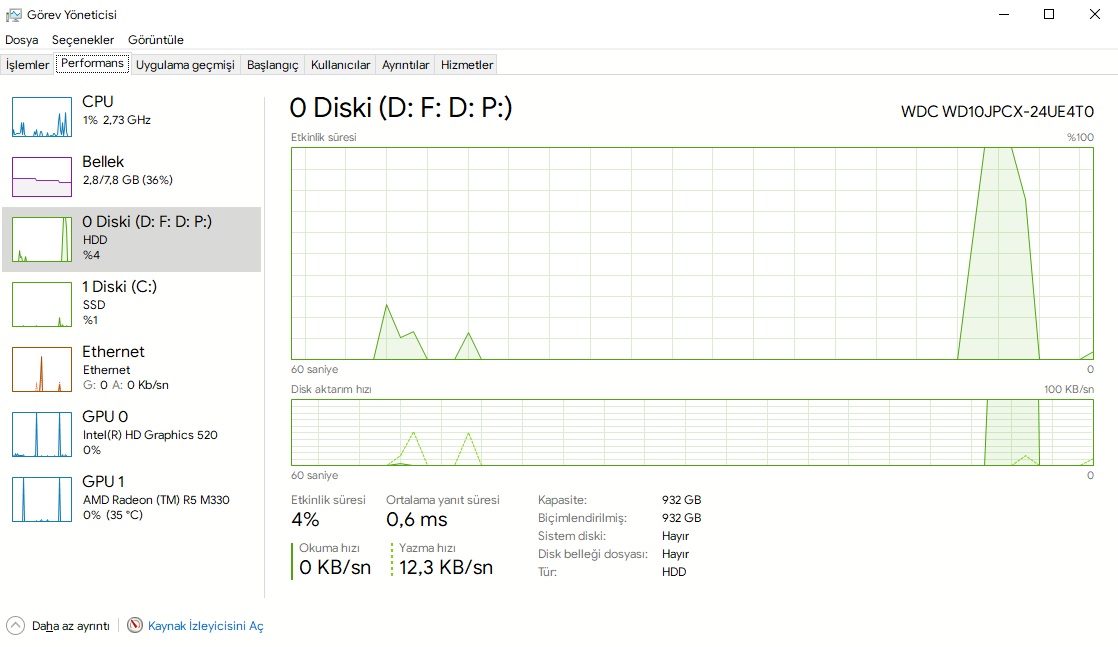

Here's a screenshot from Task Manager. This spikes happens randomly and causing my PC to freeze for 2-3 seconds.




:)



Lag Spikes with SSD and HDD

I've got a laptop running Windows 10 with programs and files split between a SSD and HDD. Windows is, at least supposed to be, solely on the SSD. While doing something like typing, selecting a browser tab, moving in a game, there will be a lag, I'll hear/feel
the HDD spin up, and then the lag will stop. This happens repeatedly during usage, and is always followed by the HDD spinning up. I don't know what I can do to fix this issue. My suspicion is Windows is loading something cached or stored on the HDD, but is
used to the SSD speeds for most operations, so it times the load as if it were loading off the SSD, but is actually loading off the much slower HDD.

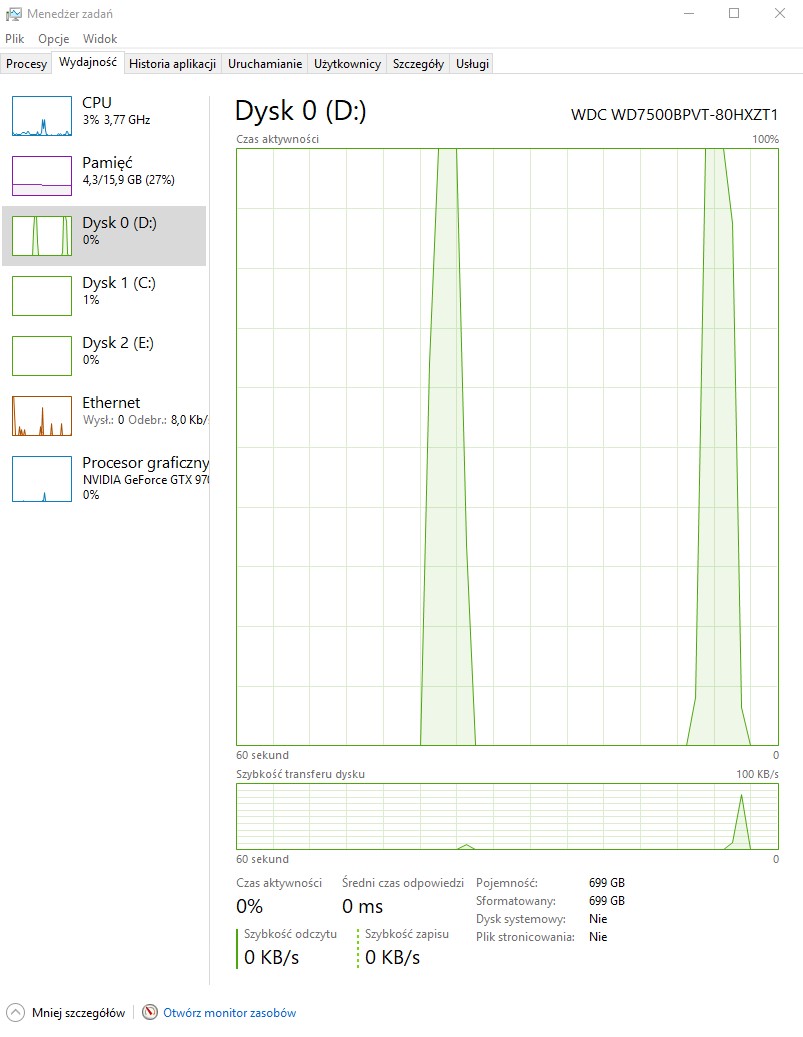

Random 100% HDD read spikes

Hi,

I'm experiencing system wide stuttering due to secondary disk usage. My primary disk is SSD.

Stuttering completelety freezes PC for 1-3 seconds. I've tried using Process Monitor from Sysinternals but did not found any process writing or reading from HDD during that spikes. Last time I had this issue I had to install Windows again. Don't wanna do that.

Did anyone experience something like this?

Cheers



OS on new SSD, keep existing data on HDD and use as external drive

Hi,

use steps you suggested, there should be no problem.

Just replace HDD with SSD first then run installation. Do not forget to remove Windows files from HDD after the end of a process.
