Windows 10: RDP Not Connecting from External Network

Error Message: 0x300005fOS: Windows 11 ProRDP Initiator: Microsoft Remote Desktop Apple App StoreIssue: Every attempt 100+ times now to initiate an RDP session using the public IP address, the Host PC name, the gateway IPv4 address, and username/domain name have failedI managed to get it to work on the LAN using the local private IPv4 address on the home network; however, attempting to RDP in from outside the network is not working.

:)



RDP and Network Connection Drops While on Ethernet

Sam,

1. Even without issuing the ping -t command I will experience a RDP drop and network bottleneck
2. RDP clients are the same version
3. No firewall setup
4. All connecting with the same cables from similar ports

winbox1 has full duplexTrue
winbox2 does not have duplex True

Pretty sure it's something with the network setup, I might reinstall the OS



RDP and Network Connection Drops While on Ethernet

I have the following setup:

2 x windows 10 and 1 X windows 7 computers connected to the same router through cable having 192.168.0.1 as the router gateway.

win7-box: 192.168.0.38
win10-box1: 192.168.0.211
win10-box2: 192.168.0.24

I am connecting from win7-box, which I'm using as the main machine, through RDP to the other 2 win10 machines.

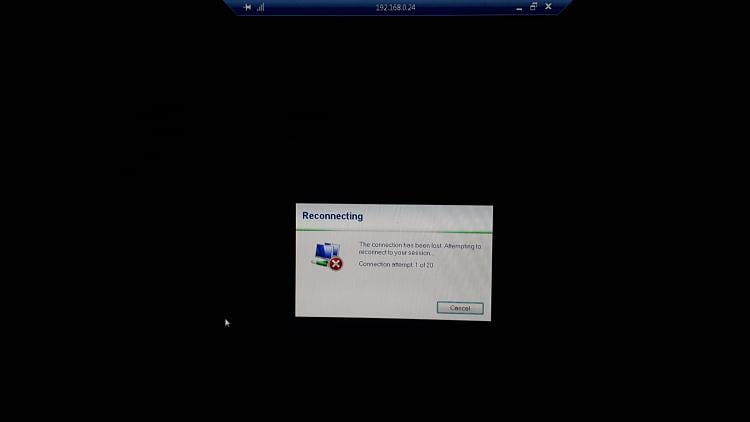

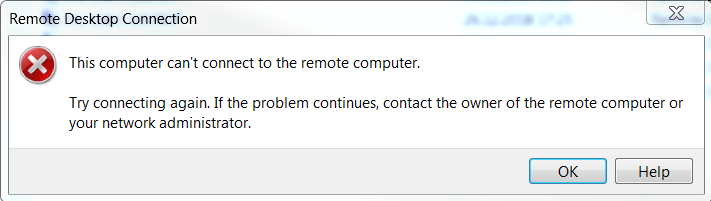

The connection to 192.168.0.211 runs smoothly but when I connect to 192.168.0.24, the connection gets interrupted after 30-60 seconds and I get the "This computer can't connect to the remote computer" error:

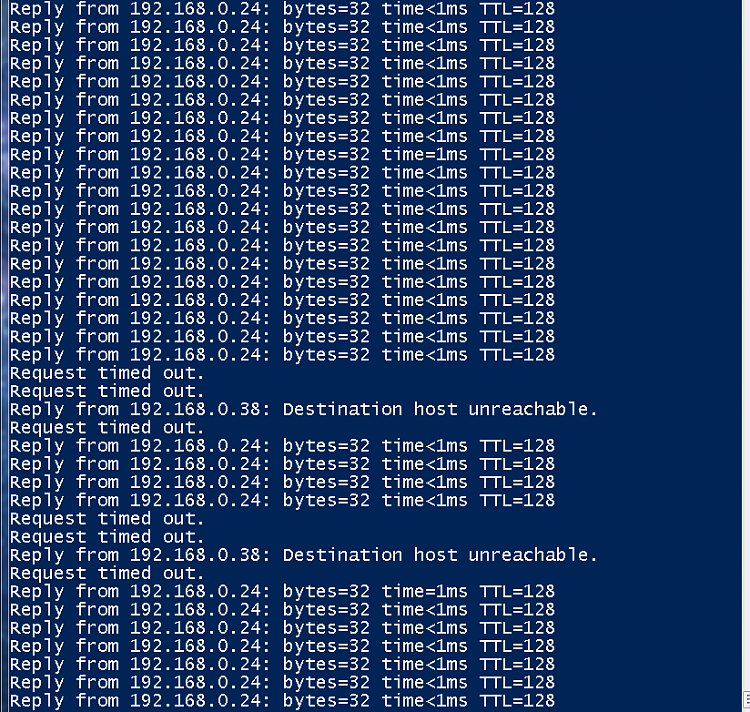

While ping 192.168.0.24 -t from 192.168.0.38 was running I got this:





Even if after the The connection has been lost error that corresponds to the Request timed out ping error - the connection seems to be restored (as ping is up again), if I try to RDP again I get the "Destination host unreachable" error.





Now I cannot RDP to 192.168.0.24 anymore until I manually log into this host by physically using its keyboard.

I also did a ping 192.168.0.1 -t on 192.168.0.24 and noticed the General Failure error that corresponds to the Request timed out from the win7-box

enter image description here

I also noticed that I get the General Failure error intermittently, even if don't try a RDP connection on this win10-box2 machine.

What I did:

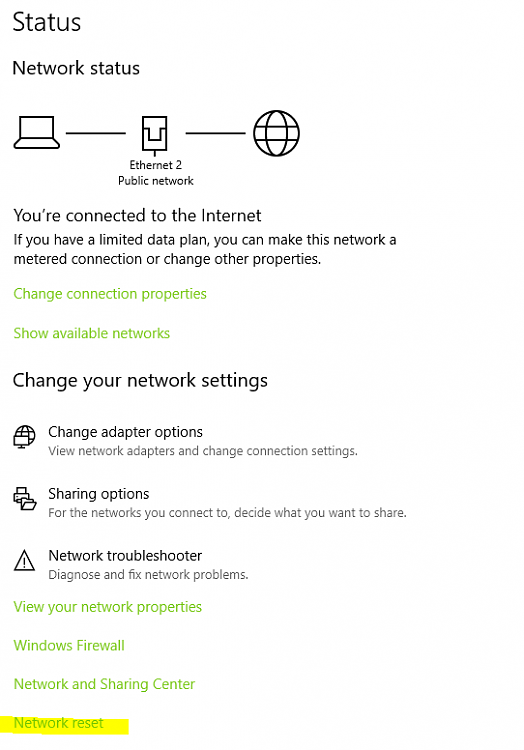

I tried a Network Reset from the Network&Internet settings:

• Tried switching the cable itself and the cable port on the router
• Tried using a different static ip, other than 192.168.0.24
• Tried using the wireless connection to the same router and noticed that even if do get some isolated Request timed out error when continuously pinging win10-box's ip, no issues are found and RDP connection is stable.

I assume this has to be something wrong in my current win10-box2 configuration as the router seems to be working fine on other devices.

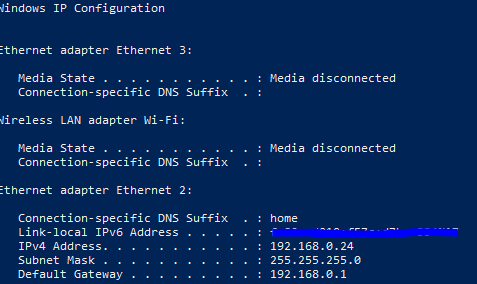

The network configuration on win10-box2 is as follows:





The question would be - what else should I try/check in order to solve this issue?



No network connection

Hello Graham,

To resolve your concern about wireless network issues, please click the link below and follow the suggested troubleshooting steps:

• Fix network connection issues in Windows 10

Let us know how it goes.
