Windows 10: Realtek HD Audio disappear in my Sound Output Devices and hidden in Device Manager

Dear Expert, Recently I lost my sound in PC Windows 10 and found Realtek HD Audio option was gone suddenly. I have tried to use Device Manager - Sound, Video and Games to view all hidden devices, I saw the Realtek HD Audio and attempted to update it to bring back to Sound Output Devices. It doesn't work. Would you please help me add the hidden device to Sound Output Devices to let it work? Thank you in advance.Best Regards,

:)



"Playback Device" not showing up in "Device advanced settings" in the Realtek HD Audio Manager

Hello Aditya,



Welcome to Microsoft Community.



It sounds like you're experiencing a common issue with Realtek HD Audio Manager where the front panel audio and back panel audio are treated as a single audio device instead of separate ones. Here are a few things you can try to fix the issue:

1. Update your Realtek audio drivers: Go to the Zebronics website and download the latest Realtek audio drivers for your motherboard model. Install them and see if the issue is resolved.

2. Check your audio settings in Windows: Open the Windows Sound settings by right-clicking on the speaker icon in the taskbar and selecting "Open Sound settings". Under the "Output" section, check if your headphones are listed as a separate playback device. If not, right-click in the window and select "Show disabled devices" and "Show disconnected devices". If your headphones appear, right-click on them and select "Set as Default Device".


If you already have Realtek HD Audio Manager installed on your device, the following steps may help:

1. Enable front and rear audio playback: Open the Realtek HD Audio Manager and click on the gear icon in the top right corner to access the settings. Under the "Device advanced settings" section, check the box next to "Make front and rear output devices playback two different audio streams simultaneously". This should enable separate playback for front and rear audio devices.

2. Disable front panel jack detection: In the Realtek HD Audio Manager, go to the Connector Settings tab and uncheck "Enable auto popup dialog, when device has been plugged in". This will disable the front panel jack detection and may enable separate playback for front and rear audio devices.


These steps involve the use of software from three parties, and since they are not Microsoft programs, my instructions may not be absolutely correct, and the solutions you find online may not be correct. Therefore, I suggest you consult the motherboard customer service for targeted guidance.

Hopefully, one of these solutions will help you resolve your issue.

If anything is unclear, please do not hesitate to let me know.



Best regards,

Mitchell - | Microsoft community support expert from MSFT



No Playback Device Option in Realtek HD Audio Manager

I would like to switch the audio output between front headset and rear speaker in Realtek HD Audio Manager. I remember before there was a "Playback Device" option in the software. Then, choose "make front and rear output devices playback two different audio streams simultaneously" But it missing.

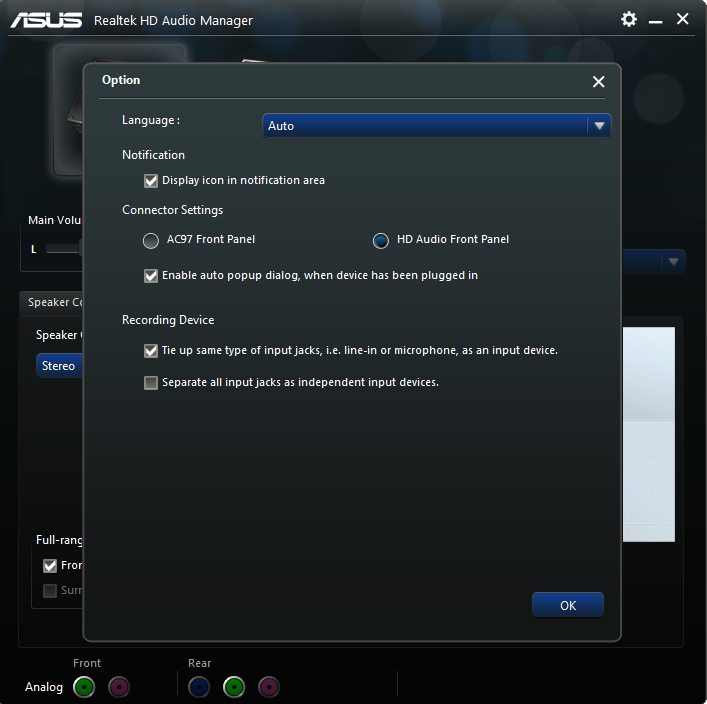

This my pic.

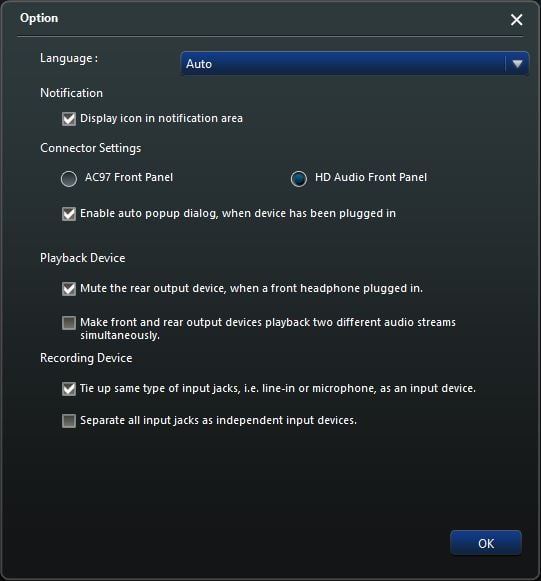

This what I need.




Thanks for any help.



No audio output device is installed

A screenshot of the Device Manager, Sounds section is still needed. Can't really offer a suggestion until I see what is showing there now.

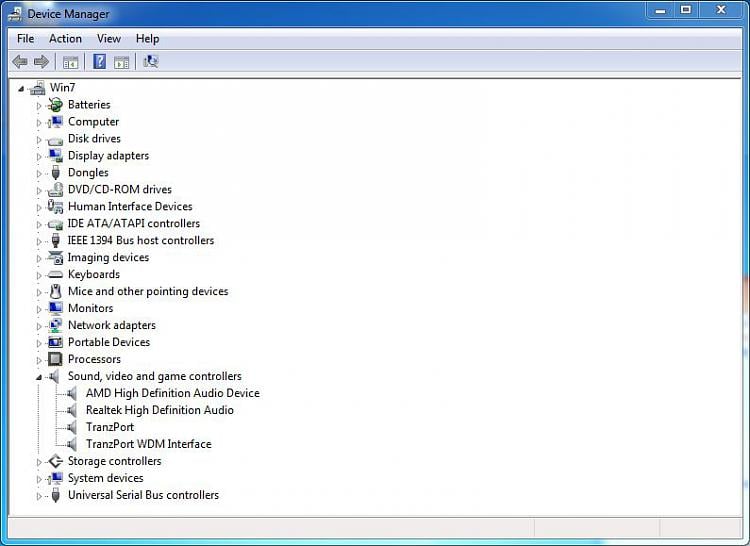

e.g this is mine It shows AMD which the audio for HDMI, Realtek and Tranzport which is a wireless controller for my recording studio program.
