Windows 10: Recurrent BSOD on new PC build part 2

Hey yall, recently had a PC built by Microcenter about 3 weeks ago and since then have had about 4-5 BSODs. Specs are:AMD Ryzen 7 7800 X3D ProcessorB650 X AX V2 AMD AM5 ATX MotherboardGeForce RTX 4070 Super GraphicsFlare X5 Series 32 GB RamInitially, the first BSOD was "Driver Power State Failure", and based on the advice from someone else on here, the minidump indicated that pci.sys was the source of the BSOD. They encouraged running the SFC scan now command which basically found no errors. They also recommended rolling back the driver to an older version. My NVIDIA driver was version

:)



New build part list

@Caledon Ken,

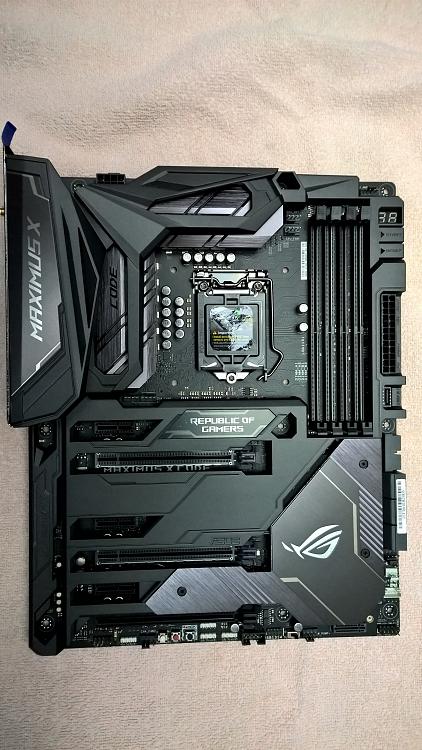

Here's the mobo showing the heatsink plate over the M.2 slot.

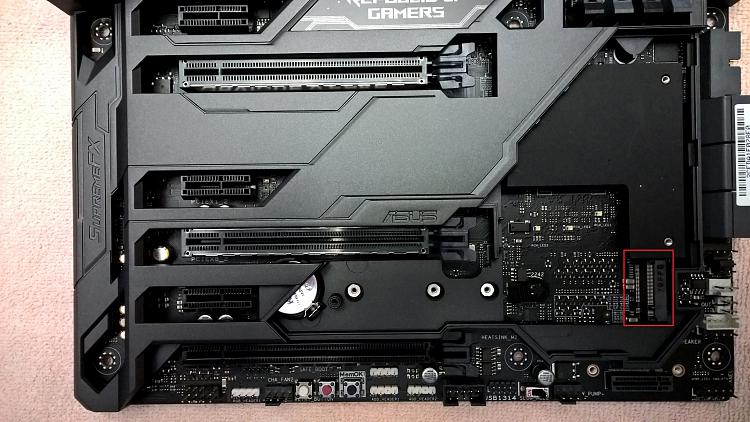

Here's the mobo with the heatsink plate removed showing the M.2 slot boxed in red under it.



New build part list

It has been put together. My system specs have been updated for the new build.

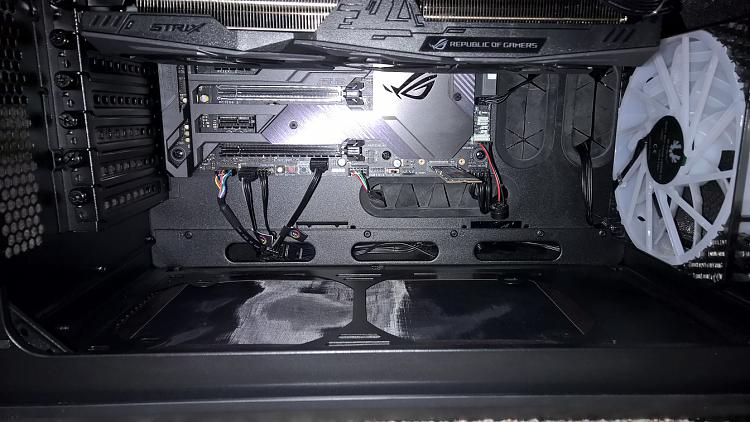

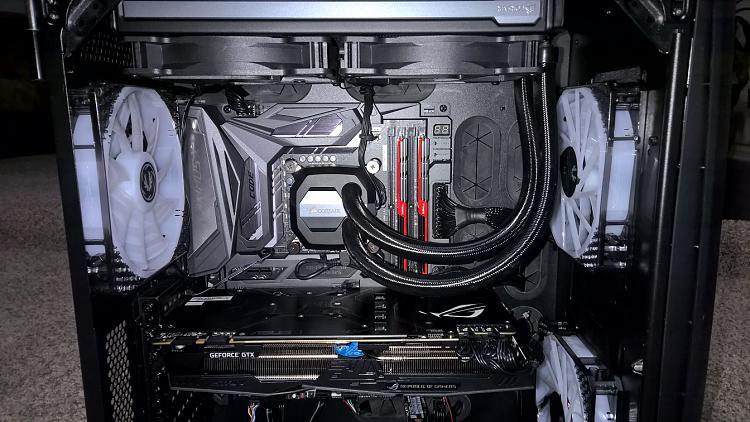

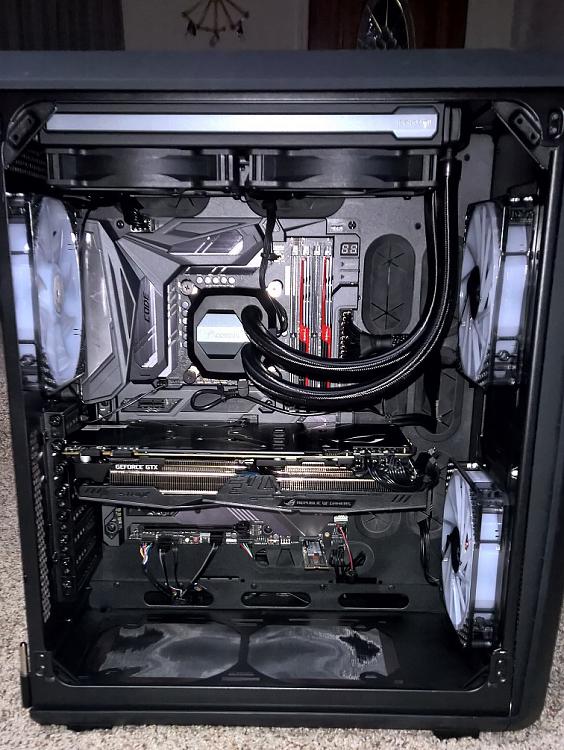

Here are some pics so far of it in a Corsair Air 740 case. I'm still tweaking and tuning everything.

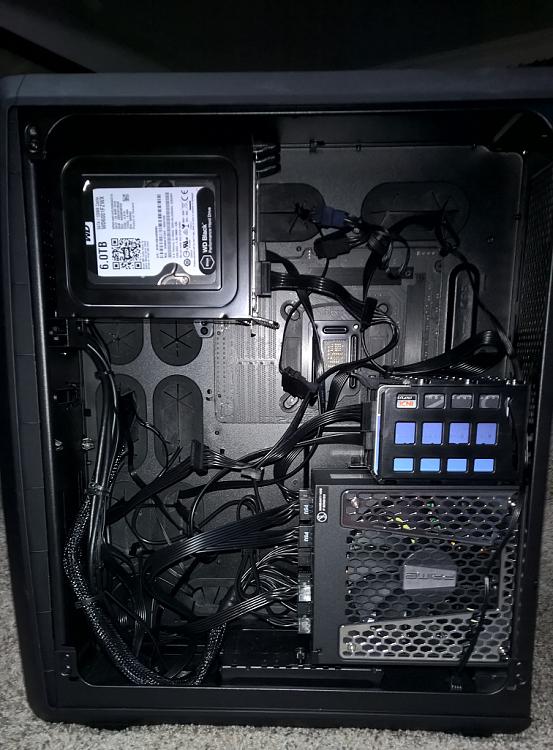

Right side:





Left side:

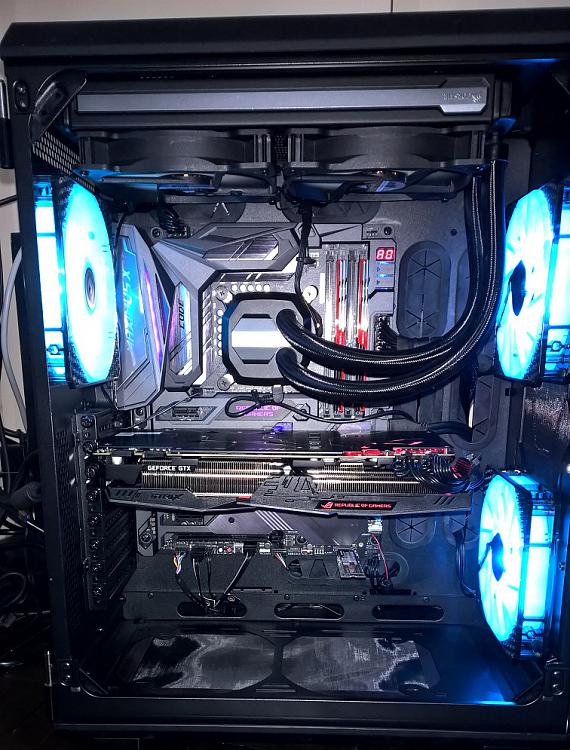

Powered up:



BSOD New PC build Part 2

Hi Morrell. I'm Greg, an installation specialist, 10 years awarded Windows MVP, and Volunteer Moderator, here to help you.

I will give you all possible steps to troubleshoot Windows installation failure which work in about 90% of cases. If not we'll go from there:

Follow the illustrated Clean Install steps in this tutorial which compiles the best possible install that will stay that way as long as you stick with the tools and methods given:

http://answers.microsoft.com/en-us/windows/wiki...

Make sure all other drives and peripherals are unplugged. Update the BIOS or UEFI firmware to latest, or reset to Defaults, making sure (if you have it) UEFI is enabled, CSM or Legacy BIOS disabled, Windows Boot Manager set first to boot, if necessary disable
Secure and Fast Boot until after install, set SATA controller to AHCI, Save changes and Exit. Access BIOS/UEFI Setup as shown here:

https://www.mydigitallife.net/comprehensive-lis...

https://www.groovypost.com/howto/reset-pc-bios-...

Create the latest Windows 10 Installation Media by installing Media Creation Tool and following the directions here:

http://windows.microsoft.com/en-us/windows-10/m.... If you're using another PC to do this uncheck the box for Recommended Settings to choose the exact version and bit rate for the target PC only.

Insert media, boot it by powering up PC while pressing the BIOS Boot Menu Key:
https://www.sysnative.com/forums/hardware-tutor...

If the media won't boot you may need to enter BIOS/UEFI Setup (pressing key given in chart in link above) to turn off Fast Boot or Fast Startup first. If you can start Windows enter UEFI firmware here:

http://www.isunshare.com/windows-password/four-...

The media may also be bad, so confirm it boots and queues up per these steps in another PC, or else recreate it. You can also try a DVD, or the alternate download site from MS TechBench here:
TechBench by WZT (v4.1.1). Burn to DVD using WIndows Image Burner or create bootable flash using one of the options here:

https://www.tenforums.com/tutorials/2376-create...

Choose the boot device as a UEFI device if offered, on first screen press Shift + F10 to open a Command Prompt, type the following commands, each followed by Enter key:

DISKPART

LIST DISK

SEL DIS # (replace # with the disk # of the Windows disk from list in previous command)

CLEAN

EXIT

Close Command Box, on second screen choose Install Now, then Custom Install, then at the drive selection screen choose Unallocated Space, click Next to let it create needed partitions and start install - this makes it foolproof.

Make sure to follow the setup steps in the first link tutorial to complete your install. Drivers are important enough that those steps are printed in red.

You will get and keep the best possible install to the exact extent you stick with the steps, tools and methods in the first linked tutorial. It's a better install than any amount of money could buy and a great learning experience that will make you the master
of your PC.

If all else fails you can move the hard drive to another PC to do the install with it plugged in alone. Windows 10 is remarkably adaptive to new hardware without needing adaptive restore. If it will start it will swap out all drivers requiring several restarts.
You can also try applying a same-version System Image to the intact SSD/hard drive.

I hope this helps. Feel free to ask back any questions and let us know how it goes. I will keep working with you until it's resolved.
