Windows 10: Remote Desktop connection using VPN connection

Hello there,


Can anyone help me with the below issue please,

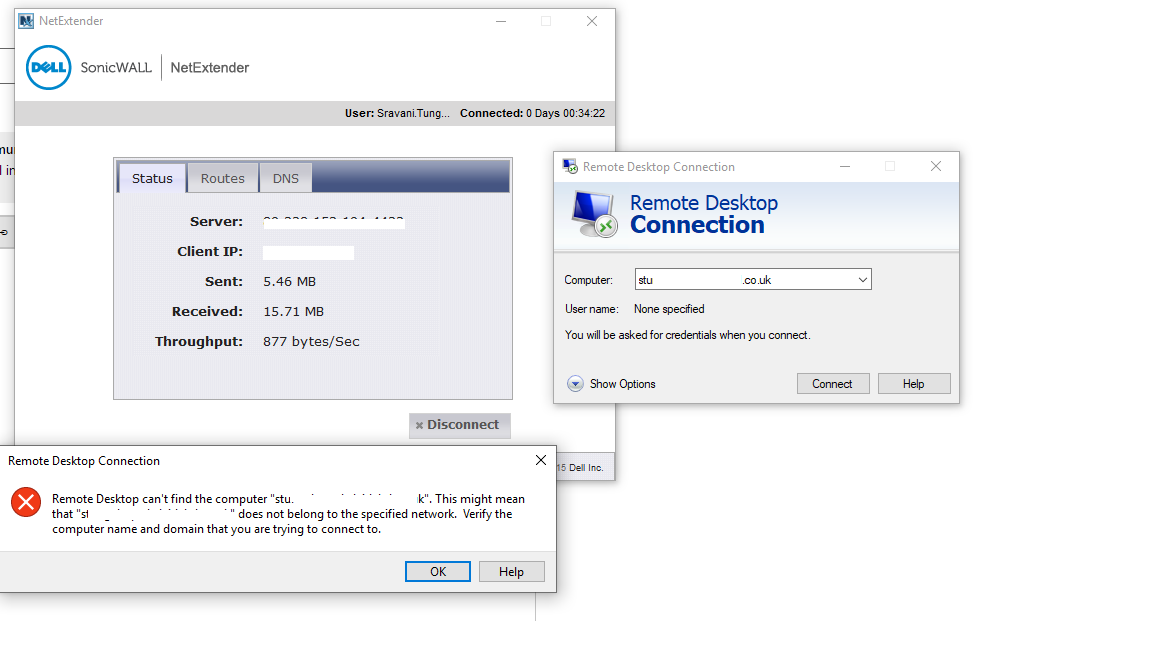

For some reason, i couldn't connect to my work remote desktop computer. However, i can connect this from my laptop. Recently got a new Desktop so, wanted to connect to my work virtual computer from my desktop.

Can someone please help me.



:)



Remote Desktop Connection problems


Have you tried Remote Desktop Connection, to connect from your Windows 10 laptop to your Windows 7 desktop? Try it first, post back and tell how it went.

Some additional help because you mentioned you are a remote newbie *Wink. The windows 7 related tutorials from our sister site the Seven Forums:

1. On Windows 7 desktop, set network location to either Home or Work (I recommend Work):
   • Network Location - Set as Home, Work, or Public Network - Windows 7 Help Forums
2. On Windows 7 desktop, allow incoming remote connections:
   • Remote Desktop Connection (RDC) - Network - Windows 7 Help Forums
3. On Windows 7 desktop, find out its IP address:
   • IP Address - Locate and Find for Your Computer - Windows 7 Help Forums
4. On Windows 10 laptop, start the Remote Desktop application and connect to the Windows 7 desktop using the IP address from step 3 above (see Part Three in the tutorial):
   • RDC - Connect Remotely to your Windows 10 PC - Windows 10 Forums
   • Notice that although the tutorial is written for Windows 10, it also applies to Windows 7

Try the above, post back how it went.



Need help Windows 10 VPN and Remote Desktop Connection

When your using a VPN connection to create an remote desktop connection to your work PC

The RRAS (Routing and Remote Access Server) vill assign you a uniqe port number.

That port number is between 49152 - 65535.

So in order for the remote desktop connection to work, you need to add that port range allong with port 3389, in your firewall allow list

Here is how it works, and the port numbers:

Home PC----3389---VPN ---3389---Company Router/Firewall---3389---RRAS---49152-65535---Work PC



WM6.5 - Remote desktop over VPN

So i am trying to access a server on my network using my MW6.5 remote desktop over a VPN-connection

These are the issues i have:

• Remote desktop connects locally but not remote
• VPN is working for Active Sync but not Remote Desktop
• I have tried to access the remote client using only Remote desktop, and also tried to start the VPN-connection manually but there is no go

Remote desktop works perfectly locally but as soon as i am outside the network it don't work.
I use the same VPN-settings as for my Active Sync (pushmail from my exchange) and i am also trying to access the exchange server... that is, the same IP is used for both Active Sync and Remote Desktop.

I would guess that since Active Sync activelly start the VPN-connection when it tries to sync my email Remote Desktop would do the same when i use it - but no!

I am using a localized HTC HD Mini (swedish), we have a cisco VPN-concentrator, server is running Windows Server 2008 R2. I would like to know how to make this work.
(if i missed some info needed i will supply what is asked for)
