Windows 10: Removing old EFI System partition and converting 3 partitions into 1.

I recently upgraded my PC by installing an m.2 SSD which upon I reinstalled Windows 10. The PC works great, load times are almost nonexistent and I'm very happy.
My problem is now with the old regular SSD. It was set into 3 partitions, a ~370MB reserved drive partition 1, a 100MB EFI System Partition partition 2 and the rest of the 223GB as data partition 3. I formatted the drive and that emptied out partition 3. Then, after reading a few of these Ask Microsoft questions, I used diskpart to delete partition 1.

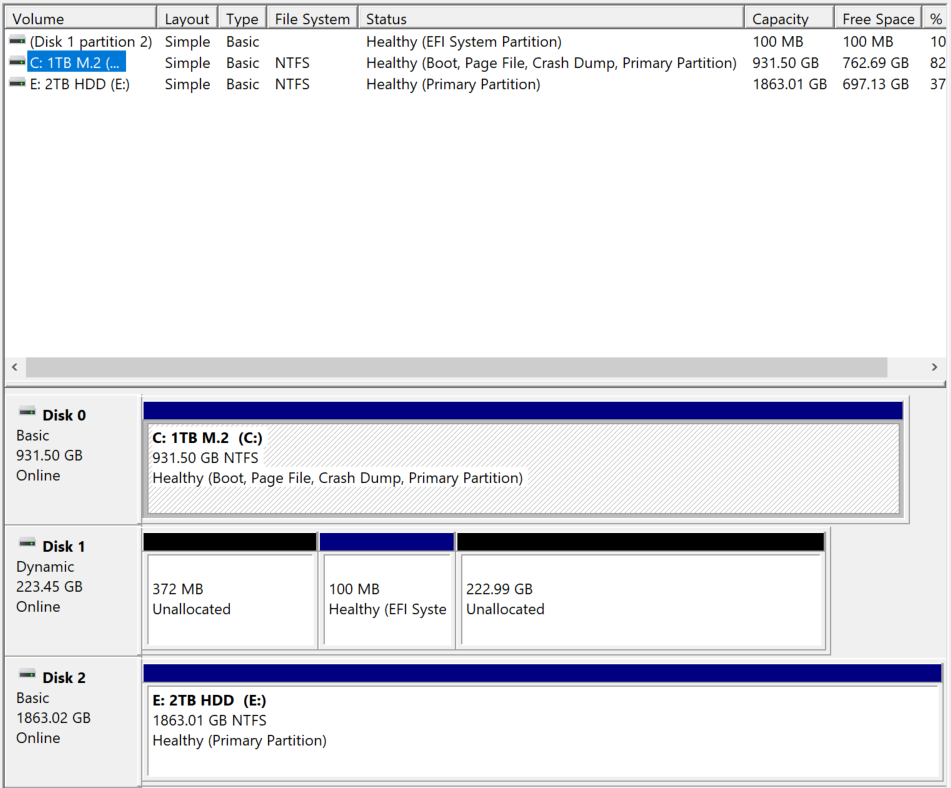

The drive now looks as follows.




When I use diskpart to try to delete partition 2 using

delete partition override

I get the error message "The operation is not supported by the object." Diskpart lists the partition type as "system".


I don't want to just ignore the 100MB allocation as it's no longer a boot drive and not necessary at all. It's more principle at this point. But even if I did, I can't seem to merge the two remaining drive partitions 1 & 3 either.
One suggestion from another page was create a volume on one of the unallocated volumes and use the extend command to push it into the other unallocated space. Right clicking on the disk 1 and selected properties tells me that the drive has a capacity of 228,809MB with 228,709MB unallocated. Makes sense. Creating a simple volume from the right hand unallocated space gives me a max size of 228,335MB capacity. After it finishes formatting it, I try to use the Extend Volume command to add 370MB, I get this message: -


The operation you selected will convert the selected basic disks to dynamic disks. If you convert the disks to dynamic, you will not be able to start installed operating systems from any volume on the disks except the current boot volume. Are you sure you want to continue?"

I don't fully understand the difference between a basic volume and a dynamic one, but as I don't have any booting operating systems on this drive at all, I select "Yes".

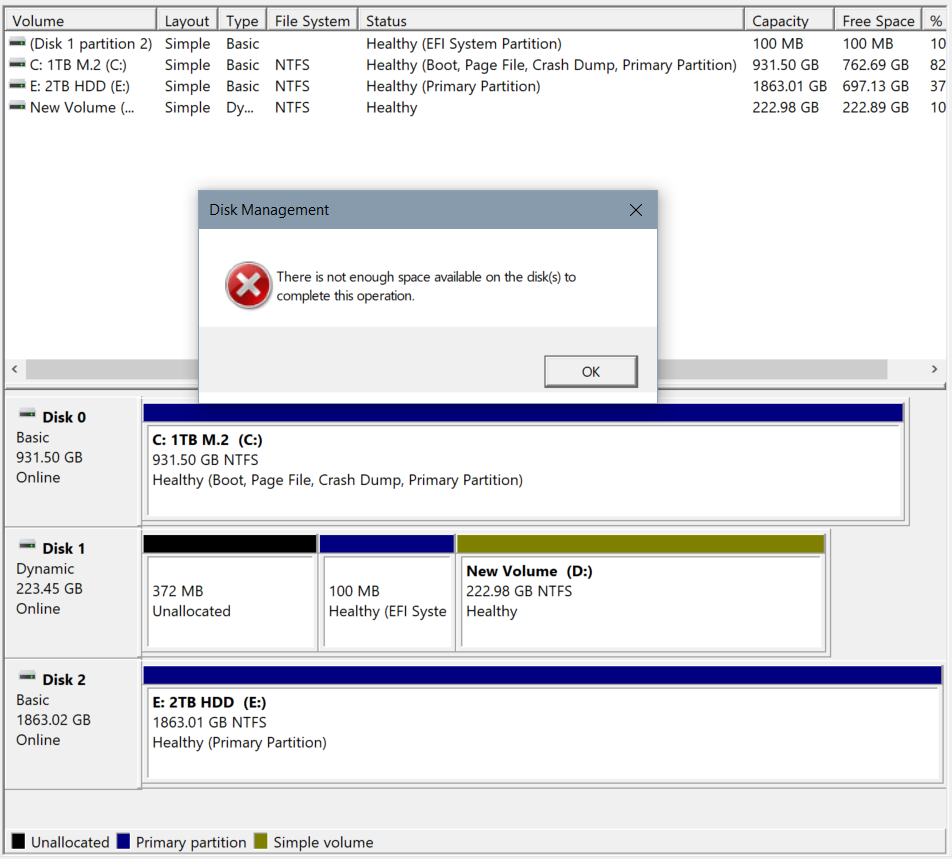

After converting the drive to dynamic and turning it's header bar from blue to an olive colour, I get this error message: -




Doing the same with the left hand unallocated space first has the same problem. Extending tries to switch the drive to a dynamic one before telling me there isn't enough space to extend. Even if I try just extend by 500MB as a test. It still won't.

There is nothing on this drive I want to keep at this point. I'd just like to use it to install software and games. Is there anyway to completely reset the partitions and reclaim 100% of the space back? Is there a boot command that can do this so there's no chance my current windows on my now C: drive isn't interfering with it thinking it has a workable windows on it?


Many thanks in advance for your replies,
Matt

:)



converting ntfs partition to efi partition

Actually I want to update my laptop bios and which needed efi partition.

I want to convert ntfs partition to efi partition.

Can you please help me out regarding.

I am not getting the right way to do this

My laptop is Acer Aspire A515-51G-56K9.



Formating Efi system partition as FAT32

During an install you can remove all the critical partitions, of which the EFI System partition is one. You do not have to pre-format a drive during an install. Just remove the Critical partitions ( MSR, EFI, Recovery and OS)and leave unallocated space.
The install will take care of the rest.

You can delete the partition and use the Diskpart create partition EFI command with qualifiers, if necessary. If you have already created the partition, try using Diskpart from a command prompt (Shift+F10 during the install) and format.

If you need to convert a drive from MBR to GPT or vice versa, you need to remove ALL partitions.



Efi partition between two partitions

Hi,

I have an asus tuf fx55dt laptop with a 256gb ssd that has windows installed on it and a 1 tb hard drive as well.

I am going to list the series of events that took place :

1) I installed ubuntu by creating a 300gb partition on my hdd.

2) ubuntu was not booting up without my charger connected so i decided to remove it.

3)ubuntu was installed in a 292gb parttion and a 500 mb efi partiton was also made on my hdd.

4) i deleted the ubuntu partition and an unallocated space of 292gb was made.

Then i tried to extend my 640gb partition in order to have my full hdd space back. But my 640gb partition did not extend to take up the 292gb unallocated space because the 500 mb efi partition is in between the two major partitions. Also my 640 gb partition
turned into a simple volume from a primary one.

So now i have a c drive(ssd) with my windows installed and having a seperate efi partition of its own and a d drive(hdd) that has no os on it but has a 500 mb efi partition in between my major partitions.

Also i think my booting still takes place through the d drive efi partiton becuase whenever i boot into my pc first grub shows up followed by the windows bootloader.

I need to get my hdd space back. Please help.
