Windows 10: Samsung 970 EVO SSD suddenly disappears from Windows.

Specs:OS: Windows 11 Home 23H2 22631.3447CPU: Core i5-8250USSD: Samsung 970 EVO M.2 NVMe PCIe 500gb SSDHDD: Seagate ST1000LM035-1RK172After downloading some files onto the SSD, the entire disk disappeared from Windows completely. Event viewer showed Reset to device, \Device\RaidPort0, was issued and that Disk 1 the SSD has been surprised removed from the PC. The BIOS showed that the SSD was still present, but Samsung Magician for the SSD stopped receiving data from the SSD itself.

:)



Samsung 860 EVO 2TB SSD

Thanks for your reply.

There is no driver software with the drive. The box only has the SSD and an information booklet. I did go to the Samsung website to find drivers but the only ones there are drivers that
support Samsung NVMe SSDs: SSD 970 PRO, 970 EVO, 970 EVO Plus, 960 PRO, 960 EVO and 950 PRO.

Also, the Samsung Magician software fails to recognize the drive. According to page 8 of the installation guide: "3) Magician shows only volumes mounted with letter." Since
I can't assign a drive letter that is of no use.

On another message board there is the suggestion to use a SATA to USB adapter which I'm going to try when the adapter comes in on Thursday. After that is third party formatting software.



Samsung SSD 970 EVO M.2

Hi

I recently installed Samsung SSD 970 EVO M.2 on my Dell Inspiron 3268. Using Samsung Data migration tool, I copied my OS to SSD and wanted to make SSD as my boot drive, but is not getting shown up in BIOS as boot option.

I can see PCI as loaded in BIOS, can also see SSD in the maintenance of BIOS.

What am I missing?



Clone Boot disk ( Samsung SSD 850 EVO 250 GB) to Samsung 970 EVO PLUS

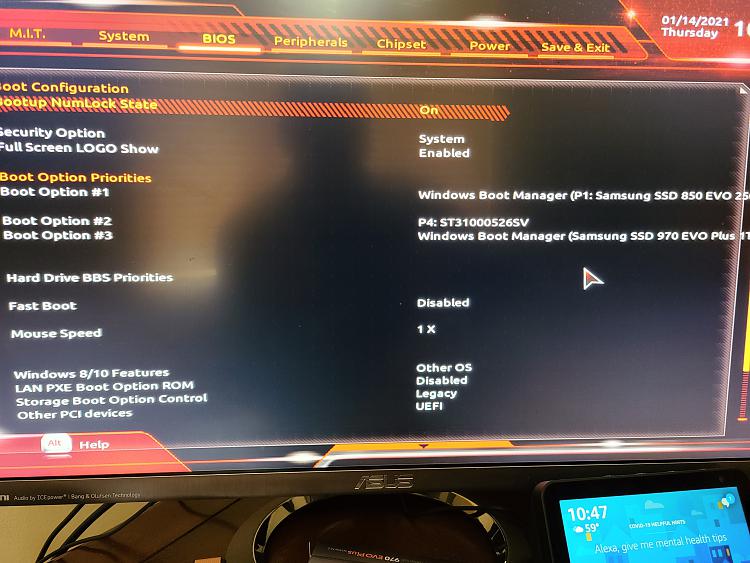

To clarify, this is the present BIOS. The Storage Boot Option Control is "Legacy", and the system boots from the Samsung SSD 850 EVO 250 GB fine.

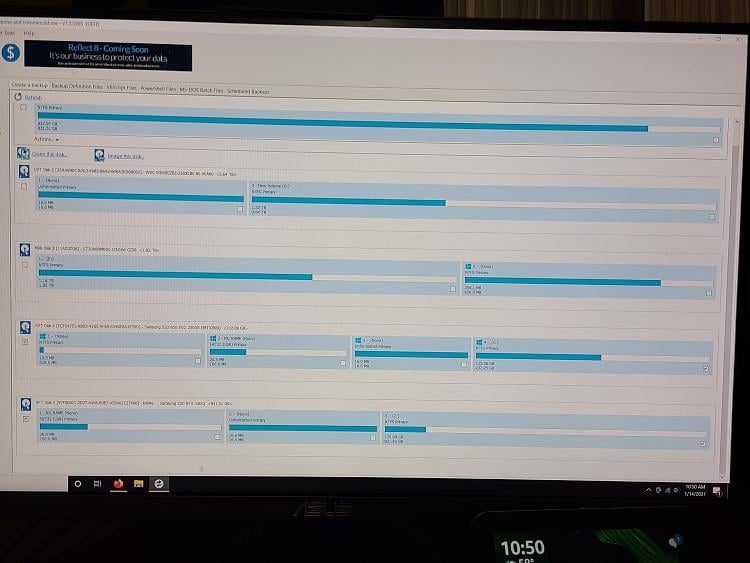

Above is what presently shows up when I load Macrium.

If I understand you correctly, use Macrium to clone the entirety of Disk 4 (SSD 850) to Disk 5 (970 EVO). Set DISK 5 as the Z:\ drive. The clone from DISK 4 to DISK 5 should wipe the prior data during the clone.

Then when I reboot, set the boot order to DISK 5 or Z:\ (970 EVO).

Last two questions:
When in the BIOS during reboot, should the STORAGE BOOT OPTION CONTROL be set to UEFI?

Do I skip or follow the last step:
Code:
reagentc /enable <- this will re-enable the Windows Recovery Environment but it will not be in a recovery partition, it will stay on the new C: drive
reagentc /info <- this will show you where the Windows Recovery Environment is

Thank you so much NavyLCDR!!!
