Windows 10: Samsung SSD 980 Pro NVMe, on mother board MSI Z390 Godlike fails to be seen in Disk...

I am adding Samsung SSD 980 Pro NVMe, mother board MSI Z390 Godlike in available Me2 slot. fails to be seen in Disk Manager. The first event seen is Event 219, kernel-PnP. I returned the first memory device thinking it was the issue. Still same problem. Below are Event logs from fresh startup with new ssd in available ME2 slot. Please advise, thanks!

:)



Upgrading a Mother board

I have a question regarding mother board upgrade, do i have to reinstall windows if i upgrade my mother board MSI b250m pro-vh to a motherboard that support 8th and 9th gen motherboard?

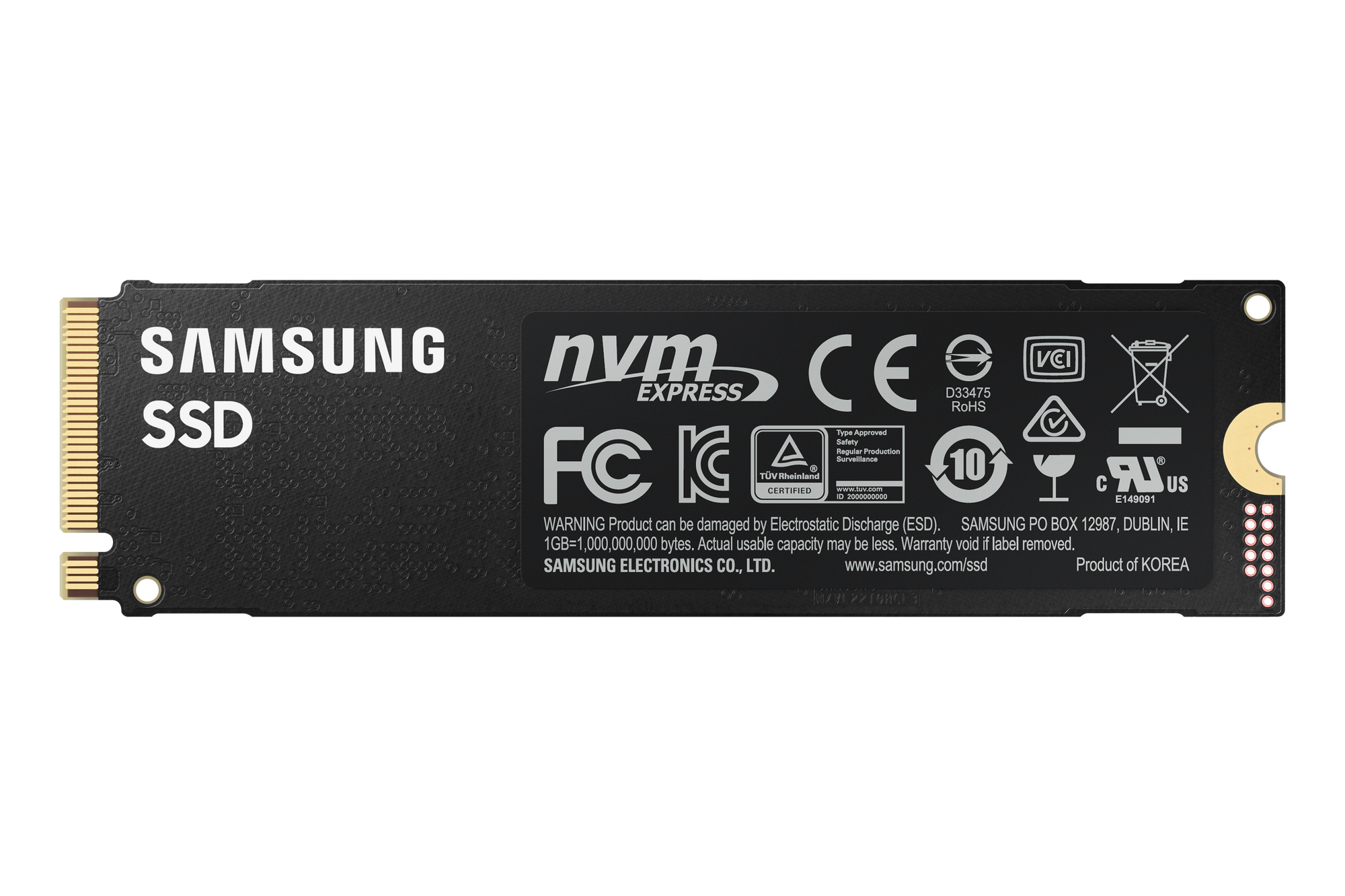

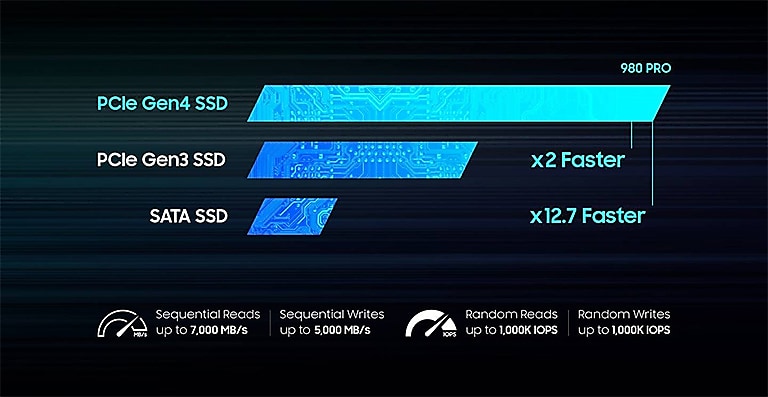

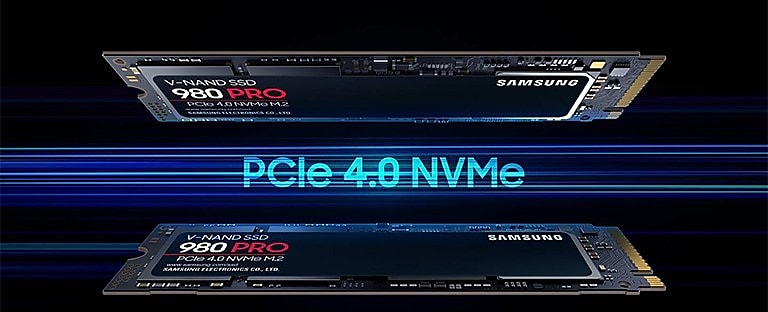

New Samsung 980 PRO SSD with PCIe 4.0 support up to 7,000 MB/s speeds

Source: Samsung Delivers Next-Level SSD Performance with 980 PRO for Gaming and High-End PC Applications – Samsung Global Newsroom

Amazon: SAMSUNG 980 PRO SSD | Amazon

Best Buy: https://www.bestbuy.com/site/samsung...?skuId=6431939

newegg: SAMSUNG 980 PRO M.2 2280 1TB PCI-Express 4.0 x4, NVMe Samsung V-NAND Internal Solid State Drive (SSD) MZ-V8P1T0B/AM - Newegg.com


See also:

• 980 PRO PCIe 4.0 NVMe SSD 1TB Memory & Storage - MZ-V8P1T0B/AM | Samsung US
• Samsung Delivers Next-Level SSD Performance with 980 PRO for Gaming and High-End PC Applications - Samsung US Newsroom

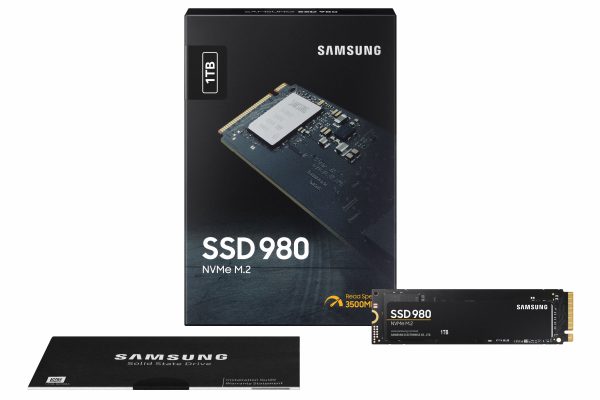

New Samsung 980 NVMe SSD without DRAM now available

Samsung Electronics America, the world leader in advanced memory technology, today announced the 980 NVMe SSD[1], the companys first consumer drive without DRAM. Delivering the highest performance among DRAM-less SSDs[2], the new 980 makes blazing NVMe speeds more accessible to a wider range of users.

Through both hardware and software innovations, our new 980 SSD brings greater value without compromising the high-end NVMe performance, said KyuYoung Lee, vice president of Memory Brand Product Business team at Samsung. The 980 offers an excellent blend of speed, power efficiency and reliability, making it suitable for everyday PC users and gamers as well as content creators.





Previously, DRAM-less designs have presented a disadvantage in speed without the short-term memory at hand for fast access to data. Samsungs 980 utilizes Host Memory Buffer (HMB) technology, which links the drive directly to the host processors DRAM to overcome any performance drawbacks. This technology, coupled with the companys latest sixth-generation V-NAND as well as optimized controller and firmware, enables the 980 to provide NVMe performance with six times the speed of SATA SSDs. Sequential read and write speeds come in at up to 3,500 and 3,000 MB/s, while random read and write performances are rated as high as 500K IOPS and 480K IOPS[3], respectively.

The newly upgraded Intelligent TurboWrite 2.0 also offers significantly enhanced sustained performance over the previous iteration[4] by allocating a much larger buffer storage area inside the drive.

For users working with extremely large files or running graphics-heavy games, the new Full Power Mode added to Samsungs Magician 6.3 software allows the drive to continuously run at peak performance for uninterrupted work and play.
Additionally, consumers will no longer have to worry about their drive overheating, thanks to its advanced thermal designs. Users can enjoy stable and reliable performance even during prolonged use thanks to the same Dynamic Thermal Guard technology, nickel-coated controller and heat spreader label solutions available in Samsungs high-end 980 series.

The SSD also features improved power efficiency of up to 56% when compared to the previous 970 EVO,[5] allowing laptop users to better manage power usage.

The Samsung 980 SSD is available for a manufacturers suggested retail price of $49.99 for the 250GB, $69.99 for the 500GB and $129.99 for the 1TB. For more information, please visit samsung.com/SSD or samsungssd.com.

Key Specifications

[table][tr]Category Samsung 980 NVMe SSD [/tr] [tr][td]Interface[/td] [td]PCIe Gen.3.0 x4, NVMe 1.4[/td] [/tr] [tr][td]Form Factor[/td] [td]M.2 (2280)[/td] [/tr] [tr][td]Capacity[/td] [td]1TB, 500GB, 250GB[/td] [/tr] [tr][td]Sequential Read/Write Speed[/td] [td]Up to 3,500 / 3,000 MB/s[/td] [/tr] [tr][td]Random Read/Write Speed (QD32)[/td] [td]Up to 500K IOPS / 480K IOPS[/td] [/tr] [tr][td]Management Software[/td] [td]Samsung Magician[/td] [/tr] [tr][td]Data Encryption[/td] [td]AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)[/td] [/tr] [tr][td]Total Bytes Written[/td] [td]600TBW (1TB) 300TBW (500GB) 150TBW (250GB)[/td] [/tr] [tr][td]Warranty [6][/td] [td]Five-year Limited Warranty [7][/td] [/tr] [/table]


Source: Samsung’s 980 NVMe SSD Combines Speed and Affordability to Set a New Standard in Consumer SSD Performance - Samsung US Newsroom

See also: 980 PCIe 3.0 NVMe Gaming SSD 1TB Memory & Storage - MZ-V8V1T0B/AM | Samsung US
