Windows 10: SMBus controller not recognized error in Windows 11/10

​

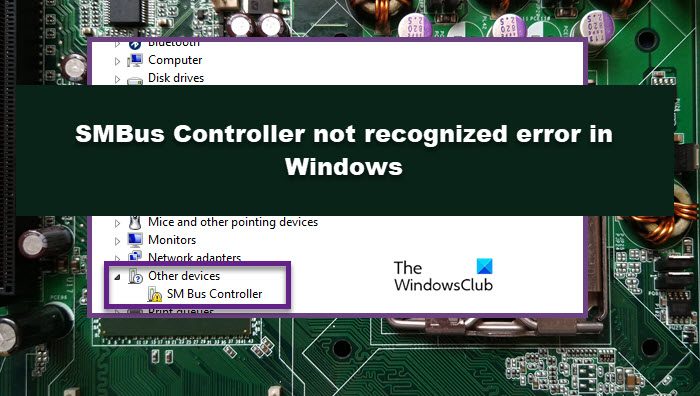

According to some users, the Device Manager shows an exclamation mark in front of the SMBus Controller, this means that the SMBus controller is not recognized. In this article, we are going to see what you need to do to resolve the issue. What is an SMBus controller? SMBus or SM Bus Controller is an […]

This article SMBus controller not recognized error in Windows 11/10 first appeared on TheWindowsClub.com.

read more...



SMBus controller

Needs to be enabled, it's fairly important! its the System Management Bus and processes mainly low level information on the motherboard, a breif description is:

The System Management Bus (abbreviated to SMBus or SMB) is a simple two-wire bus used for communication with low-bandwidth devices on a motherboard, especially power related chips such as a laptop's rechargeable battery subsystem (see Smart Battery Data). Other devices might include temperature sensors and lid switches.

A device can provide manufacturer information, indicate its model/part number, save its state for a suspend event, report different types of errors, accept control parameters, and return status. The SMBus is generally not user configurable or accessible.

The bus was defined by Intel in 1995. It carries clock, data, and instructions and is based on Philips' I²C serial bus protocol. Its clock frequency range is 10 kHz to 100 kHz. Its voltage levels are different from those of I²C, but devices belonging to the two systems are often successfully mixed on the same bus. The SMBus has an extra optional signal called ALERT#, which can be used by slaves to send an interrupt request to the controller.

Linux, Windows 2000, and Windows XP support SMBus devices, but Windows 98 does not.

It also has linkage to the Mobo BIOS and other stuff, if you wanna be a real swot readthis link talking about its functions in relation to Mobo/BIOS processes.

http://www.sbs-forum.org/marcom/sbexpo_feb02/01 SBD Access under ACPI.PDF#search="smbus driver"



SMBus controller

I checked my bios's settings and i found that SMBus controller is disabled. Is that good or bad? Should i enable it? What is SMBus and what does it do exactly?*Confused



SMBus Controller

On the Asus support website, did you click on the "Show All" link under chipset drivers and actually install the second one on the list?
