Windows 10: Strange disk storage problems Update.

Check my older Strange disk storage problems. question to know what is happening. That still happens I even deleted previous Windows installions to increase storage to 68GB and after that it jumped to 72GB and it was like that for a few days but it started decreasing days before the newest update. Then the storage had a few points where it stayed at the same numer and also changed a bit then the update was installing it decreasing quite a few gigabytes after update it came back to 65GB but then it changed to 66GB then it dropped to 65GB but it changed just hundreds of megabytes but it droppe

:)

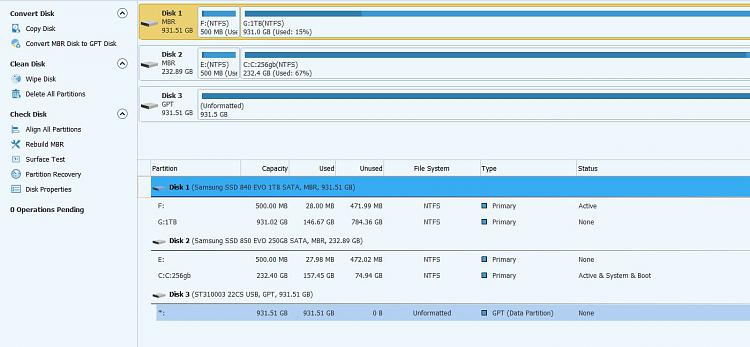

Strange boot problem

I am trying to get my head round the 6 steps above before having a go. If you can expand on them it may give me a bit more confidence. I cant lose the whole contents of my PC.
Have attached details as you suggested.



Conflicting information on my Storage Space...

From disk management, it does report the same storage and used space as from explorer.
May I ask did you try to create a storage pool or something ? if so, you should not mess with this.

Is this disk an external disk connected via USB ? WD or Seagate branch ?

I have the feeling that this disk is formatted with GPT type using 512K emulation so Windows get confused. To verify:

1. Right click on Disk 6 ->Properties->Volumes. What does it show on partition styles ? GPT ?
2. Download Best Free Partition Manager for Windows | MiniTool Partition Free, install then run. What does it show on disk 7 ? MBR ?

If step 1 shows GPT and step 2 shows MBR then definitely the disk was formatted using 512K emulation. The reason they did this so that it would be recognized by WinXP or if you connect it to a TV.

Windows Updates failed is another problem you have. First, it tried to updates from 1703 -> 1709 and failed so any subsequent updates to 1803 also failed.



Disk management console view is not up-to-date

i dont know how to fix your disk management, but i can fix your partition problems...




open up Command Prompt with admin rights. (Right click, run as admin)


enter in
DISKPART
list disk

then find the Disk number for your Raid array... lets call it number 7 ( you can tell what disk is what by the total size)
type in

Select Disk 7
List Partition (will give you a list of all the partitions..)
Select Partition 1 (im assuming you only have 1 partition on Disk 7) repeat this step if you have more partitions.
ASSIGN


that should get the array up and running ready to use.


EDITED.

any problems, post back ^^


Still EDITING *Stick Out Tongue

side question, have you tried restarting the PC?
