Windows 10: Strange partitions after hardware repair

Hello everyone,

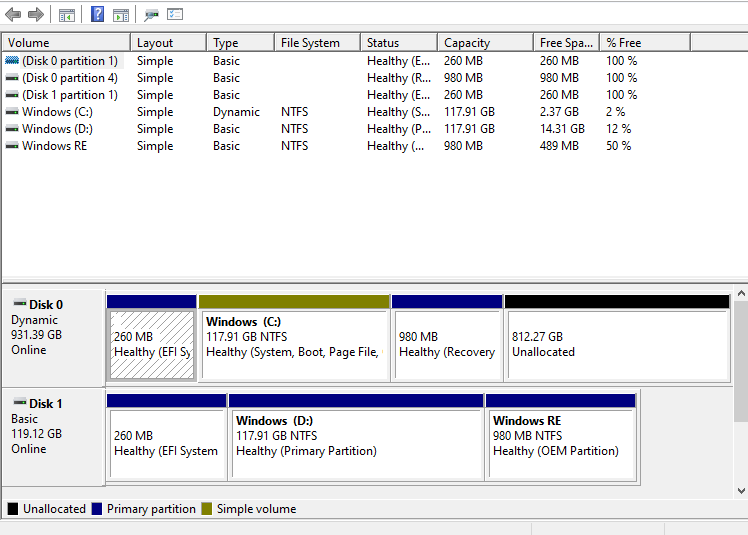

I repaired my computer for damaged hardware, once I got it back my hard drive was partitioned strangely and I'm not sure how to fix it without paying for annoying hard drive management software. There are two instances of windows, they were copies of each other before I started using the one that is on disk 0. My plan is to delete all the data on disk 1 and then turn it into a storage disk. However first I would like to extend the windows installation on disk 0 to fill the unallocated space.


Thank you in advanced

:)



W7 Hard drive partition issue

to get rid of that 100 meg windows partition that setup creates for you on a new install on a blank hdd:

- press shift+f10 when on the partition management screen in setup <-- this opens a command prompt
- diskpart <-- start the windows command line partition management tool
- list disk <--- list the installed hdds in this computer for the next step
- select disk 0 <- might have to replace 0 with the number of the correct disk
- clean <-- this will erase all data on the disk you selected one step up- dont use the wrong disk!
- create partition primary <- creates a primary partition taking up all space on the drive, adjust the command if necessary
- exit, exit to exit diskpart and the command prompt
- click refresh in partition manager and select your newly created partition and install to that



Move Win7 64 image from a partition NTFS to a new drive

EDIT: After reading your first post again, is there any reason that you would now need GPT? Are you just trying to move the windows install to a new disk or is there a new motherboard involved?

If you are already booting to an NTFS partition, then it makes me wonder if after copying to the new drive, the partition isn't getting marked as Active.

Following the same steps I posted above for startup repair, you can get to a command prompt and use diskpart to see if this is the case.

Code: In the command prompt: diskpart list disk select disk 0 (disk number may be different if you have other disks connected.) list partition select partition 0 (partition number number may vary, but you want to see the boot partition which is the same as your windows partition according to the screenshot on the OP) detail partition (This should have Active: Yes or No. If it says no, since we have the partition selected, you can just use the following command in diskpart) active[/quote]



Programs not working


In post 26 there were steps listed to fix the operating system corruption.
Are you able to follow them?
In post 29 was the suggested dism repair command.
