Windows 10: Stuck in Creating a Virtual Hard Disk Window Hyper-V.

I have an external hard disk. I am trying to create shared virtual hard disk in it with Hyper-V. Whenever I select the VHDSet option; the bar is stuck at %100. This situation is not different in Powershell too.

:)



Can't remove Hyper-V Virtual Hard Drive partition

Hi Robert,

Thank you for writing to Microsoft Community Forums.

I understand that you are facing an issue when you are trying to remove the Hyper-V Virtual Hard Drive partition. This partition is just a virtual partition that is created by using the space within your physical hard disk, so that
it can be used within Hyper-V. Since you are no longer using Hyper-V and you wish to remove the Virtual Hard Drive partition, I would suggest you to follow the steps below and check if it is helpful to you.

Steps to remove the Virtual Hard Drive partition using Disk Management:

1. Press the Windows key and
   R key, this will open the Run dialogue box for you.

2. Type diskmgmt.msc and press
   Enter, this will open the Disk Management Window for you.

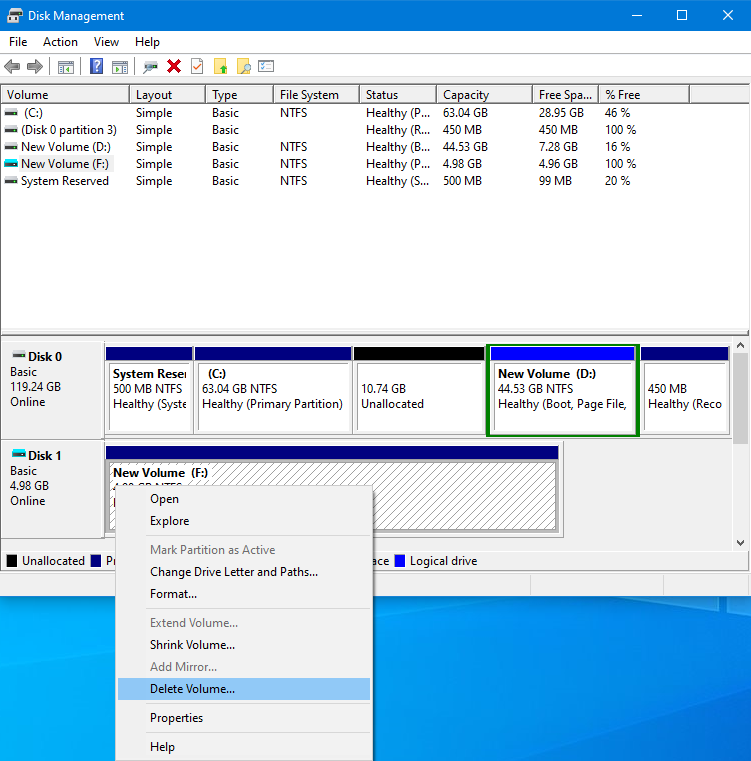

3. Your Virtual Hard Drive will be indicated by a ‘blue’ drive beside the
   Disk n (n is the disk number to which the VHD is associated), select the allocated
   Volume, right-click and select Delete Volume. You can check the picture below for your reference.




4. You will receive a prompt, click on
   Yes. This will delete the volume allocated to the Virtual Hard Drive and the space allocated will now be turned into an
   Unallocated space.

5. To detach the Virtual Hard Drive completely,
   right-click on the Disk and select Detach VHD.

6. You will receive a prompt, you may click on the check box to
   Delete the virtual hard disk after removing the disk. Click on
   OK.


This will remove the Hyper-V Virtual Hard Drive partition from your system.

If the issue still persists, I would suggest you to post your query in IT Pro

TechNet forums, where we have support professionals who are well equipped with the knowledge on the issues with Hyper-V and Virtual Hard Drive to assist you with your query.

Regards,

Aaron Summith

Microsoft Community - Moderator



Hyper V Import Virtual Machine

There is separate default folders for Virtual Machines and Virtual Hard Disks

C:\ProgramData\Microsoft\Windows\Hyper-V

This folder contains all settings for each Virtual machines.

Have you changed that folder?

C:\Users\Public\Documents\Hyper-V\Virtual Hard Disks

This folder contains only virtual disks. On your case it's changed to E:\HyperV\...

When you want import VM you need to search it from that first location.

You can check this location from Hyper-V settings.

If you can't import existing VM's you can create 3 new Virtual Machines.

When creating those select option Use existing Virtual Disk and point disks from E:\HyperV\...



Where is the Hyper V Manager, How to I start it ?

I am trying to setup an XP virtual Machine on Windows 10 Pro.

I followed the steps in Neil Peterson article of 5/9/2016.

System Requirements - done - ok

Install Hyper-V - done - ok

Create a Virtual Switch - skip

Create a Virtual Machine

Create a Virtual Machine with Hyper-V Manager

These steps walk through how to manually create a virtual machine and deploy an operating system to this virtual machine.

•
  In Hyper-V Manager, click Action > New >
  Virtual Machine to bring up the New


Uhhhhhhhhh - this step obviously implies one knows

1) Where the Hyper-V Manager is

2) How to start the Hyper-V Manager

Isn't that odd ?
