Windows 10: System Image Backup Failed In Windows 10

Today I wish to share this solution that I found from this community credited by Syed Abdul Jabbar that he answered this issue long time ago.(Replied on September 21, 2015) In case you did not see it. However, First before you will do this step, I would like to share a trick to I have done and finally I can solve this issue Please follow me

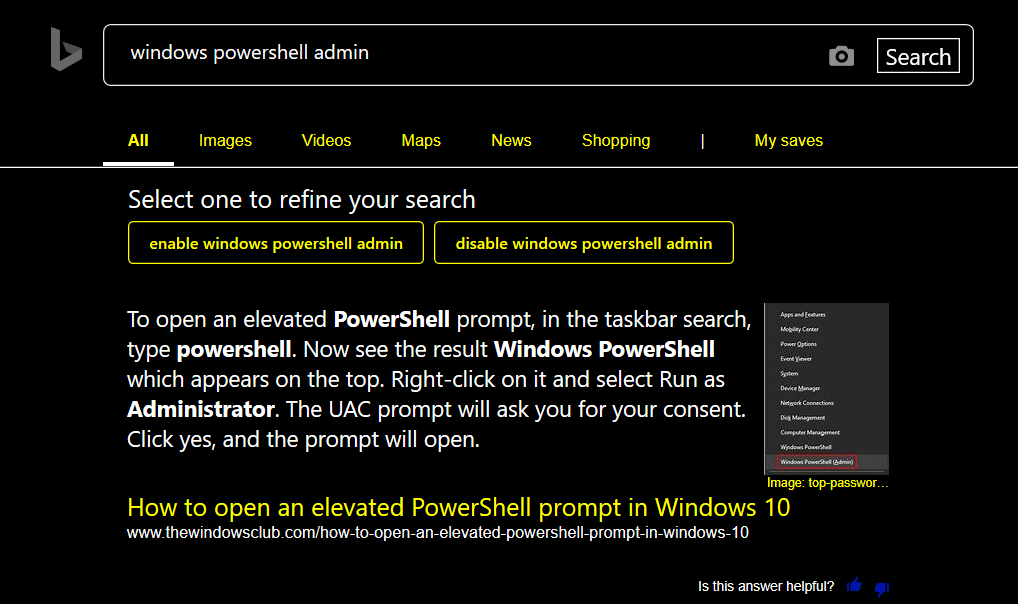

1 open windows powershell admin

2 type chkdsk /r system will inform you that it will scan and fix disk when next restart

3 sign out and restart

4 I wait system fix about 3 house ago! however it have been fixed successful finally

5 I follow Syed Abdul Jabbar steo as below


Step by Step on how to fix the "The backup failed. New bad clusters were found on the source volume. These clusters were not backed
up. (0x8078007D)" error.

Close Backup and Restore.
Delete the Image Back folder (WindowsImageBackup) located in the destination drive.
Open Disk Management. (Start/Computer/Manage/Disk Management.
Note the size in GB for the partition (typically C Windows is installed on.
Right click on the Windows partition (typically C and select ‘Shrink Volume’.
In the ‘Enter the amount of space to shrink in MB’ box enter the value: 1024 (1.0GB) as shown above.
Click the ‘Shrink’ button. When the process has completed you will see ‘Unallocated’ space equal to 1.00 GB as shown below.
Right click on the Windows partition and select ‘Extend Volume’
Click on the ‘Next’ button in the ‘Extend Volume Wizard’ window. The ‘Maximum available space in MB’ value should be 1024 minus 1 (1023, see step 6 and image below). Click the ‘next’ button to reclaim the unallocated space.

Click the ‘Finish’ button.
Disk Management should now report the size of the Windows partition equal to what you observed in step #4.
That’s it, you’re done. You can now run the ‘Backup and Restore’ feature.

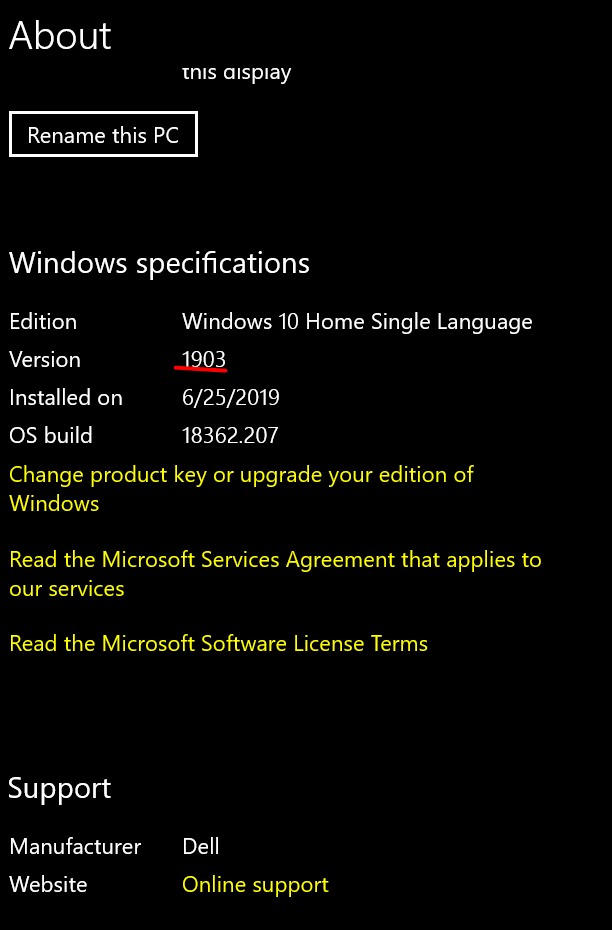

This solution may apply to windiws 10 version 1903

:)



Windows 10 System Image Backup fails

I have not tried this resolution because of the initial steps I listed in my question. As mentioned in my original statement, I performed a clean install of Windows 10, yet when I tried to restore the computer from a System Image Backup it failed. As I just
got the computer up and running again with Windows 7, I didn't want to go back and try this fix as I didn't see how it would help as I originally upgraded from a Windows 7 computer that has BIOS, and upon looking at the settings, there is nothing listed about
EFI.



win 10 and system image

Hi James,

To help you resolve your concern, kindly follow the steps on these links:

• Windows 10 Backup Error
  0x807800C5.
• Windows 10 System Image backup failed. Error code
  0x80780081.

Do let us know if you need further assistance.



System Image Backup not working following upgrade to Win 10 Anniv 1067

Hi Steve,

To help you resolve your concern, kindly follow the steps on these links:

• Windows 10 Backup Error 0x807800C5.
• Windows 10 Bug, System
  Image fails to NAS and USB External Drive.

Let us know the result.
