Windows 10: System Partition 'Properties' greyed out

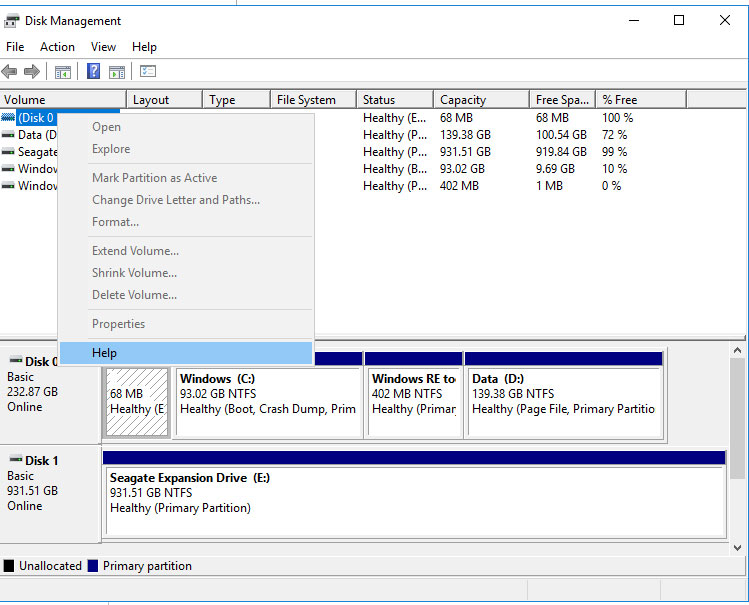

My System Partition is full (68MB/68MB). I was planning to follow the directions that Microsoft provides to clear it, but the very first step of clicking on Properties isn't possible, because it's greyed out. The only option available is "Help".


How do I get around this please?




:)



Help! Data partition not showing under my computer

This is happening on a windows 2000 server. Our second partition of the system, for data is not showing under my computer. Here are the properties of it in disk management:





Now under logical drives its listed as F and shows free space available.

Suggestions on how to fix this?



W7 Hard drive partition issue

to get rid of that 100 meg windows partition that setup creates for you on a new install on a blank hdd:

- press shift+f10 when on the partition management screen in setup <-- this opens a command prompt
- diskpart <-- start the windows command line partition management tool
- list disk <--- list the installed hdds in this computer for the next step
- select disk 0 <- might have to replace 0 with the number of the correct disk
- clean <-- this will erase all data on the disk you selected one step up- dont use the wrong disk!
- create partition primary <- creates a primary partition taking up all space on the drive, adjust the command if necessary
- exit, exit to exit diskpart and the command prompt
- click refresh in partition manager and select your newly created partition and install to that



Recovery Partition vs System Reserved Partition

Thanks for all the info guys.

Both original & target SSD's are listed as MBR as opposed to UEFI. I may have created a partition unknowingly in getting the original/new unformatted drive recognized, but I don't recall taking any steps that Windows did not step me through.

Not that an upgrade to WIN 10 Pro is contemplated, but I suspect that having no System Reserved partition will not allow that to happen, after seeing how the original WIN 10 upgrade created a problem for some WIN 7 users that had a smaller 100mb vs 500mb System Reserved partition.
