Windows 10: Systeme reserved and OS partition

Hello, I cloned a windows 10 form an orginal disk to an SSD disk using Aomei backuper.all works perfectley no probleme.But on the SSD i see one partition it s using the boot and the os in the same place note that the SSD is booting and workin with probleme !But i prefer for some reason to have two partition : boot and OS but how i can do it without to rebuild everythings !At this time i did not find any subject of it ! Thank you.

:)



W10 System Reserved Partition Error

Hi,

Have you tried all the suggestions above? If not, we suggest the resolution provided above. We also suggest that you follow the steps on this link:

“We couldn’t update system reserved partition” error installing Windows 10.

Let us know how it goes.



Recovery Partition vs System Reserved Partition

Thanks for all the info guys.

Both original & target SSD's are listed as MBR as opposed to UEFI. I may have created a partition unknowingly in getting the original/new unformatted drive recognized, but I don't recall taking any steps that Windows did not step me through.

Not that an upgrade to WIN 10 Pro is contemplated, but I suspect that having no System Reserved partition will not allow that to happen, after seeing how the original WIN 10 upgrade created a problem for some WIN 7 users that had a smaller 100mb vs 500mb System Reserved partition.



Create a System Reserved Partition and keep original OS

When you talk about System Reserved Partition, I assume you installed Windows using MBR partition scheme. All you need to do:
For Windows 10, The System reserved partition size is 500MB so:

1. Use Magic Partition Manager Software to shrink C drive and create a 500MB partition, format as NTFS in front of C drive.

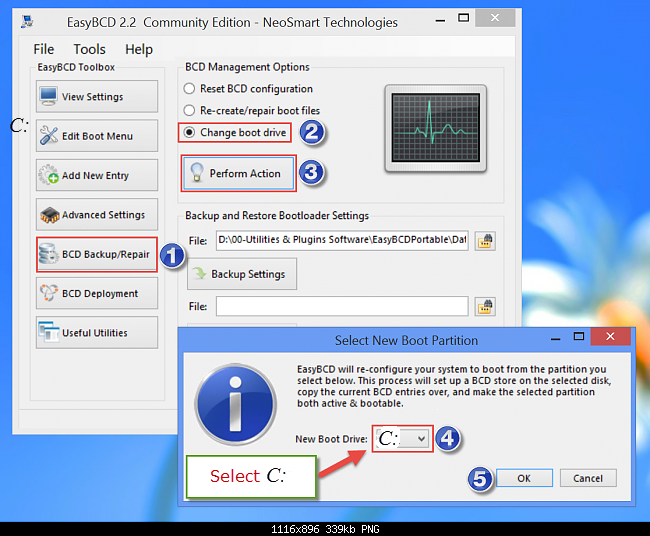

2. Use EasyBCD 2.2 - Neowin to move the BCD to the newly created partition, rename it as System Reserved and remove the drive letter from this partition.



   NOTE: use the drive letter assigned for 500MB partition istead of C as shown in screen shot.
