Windows 10: TCP/IPv4 and 6 connections missing from Ethernet properties Following Updates......1903,1909

Hello All,


I am currently seeing an issue on my company's domain related to Ethernet properties view of connections ncpa.cpl -->properties


The connection window items are missing file and Printer Sharing, Clients...., IPv4, IPv6

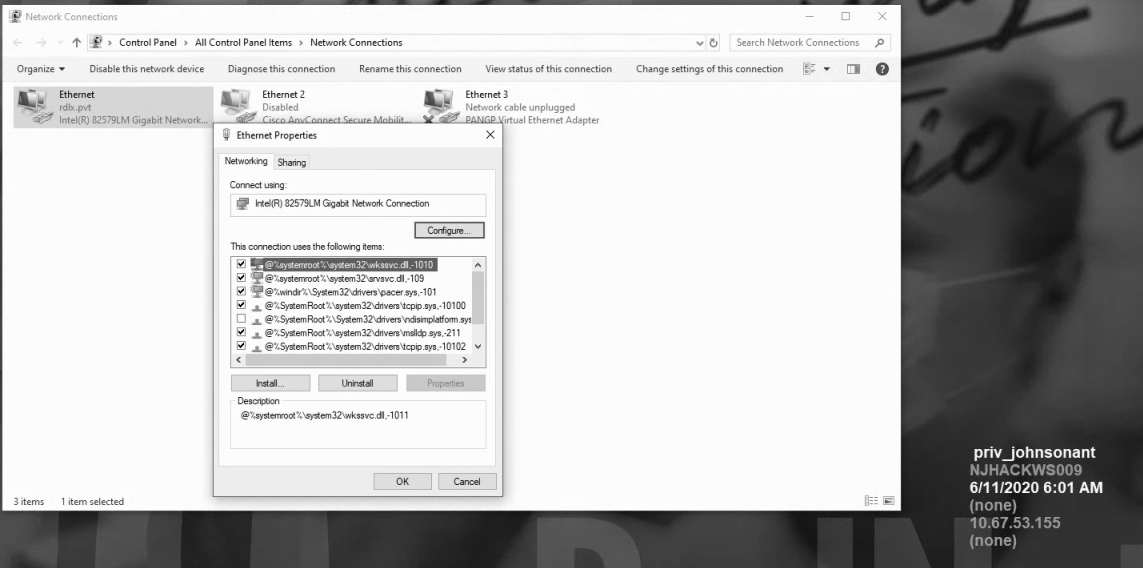

I have attached an image.




:)



What's the fastest way to open TCP/IPv4 Properties? in Windows 10

Is there a shortcut to open TCP/IPv4 properties directly

I go this way

• ⊞ win+R

• ncpa.cpl

• Click Ethernet

• Properties

• Scroll down to TCP/IPv4 and click it


Too many steps

Assume it's for a PC with a single NIC.



ethernet properties

Have you tried to download and install the latest driver update from your manufacturer's website? If not, kindly
do so.



If the issue still persists, reset and reconfigure your TCP/IP and check if you can access the properties afterwards.
To do this, follow these steps:



Reset TCP/IP

To do this, follow these steps:

•
  Run
  Command Prompt
  as
  Administrator.

•
  Run
  this command:

  •
    netsh
    int
    ip reset
    and hit
    Enter.


Exit
Command Prompt
and
monitor your network connection.



Reconfigure TCP/IP

To do this, follow these steps:

•
  Run
  Command Prompt
  as
  Administrator.

•
  Run
  these following commands:

  •
    netsh
    int
    tcp set heuristics
    disabled

  •
    netsh
    int
    tcp
    set global
    autotuninglevel=disabled

  •
    netsh
    int
    tcp set global
    rss=enabled


Get back to us if anything comes up.



Regards.



If you think this was useful, feel free to "mark it as an answer" to help those who are facing
the same problem.



I can not agree to the options of configuration of protocol TCP/ IPv4

Thanks to both to attend me, Sr NavyLCDR in connections Ethernet ( wired ) if this the window to put the DNS,The connection of telephonic access, do not give possibility to put the DNS,Only I have a good chance to install the protocol TCP/IPv4,Does he ask me for a disk to install the protocol, where getting the installation from protocol? Thanks *092
