Windows 10: The window displayed in CAD-based software is incomplete

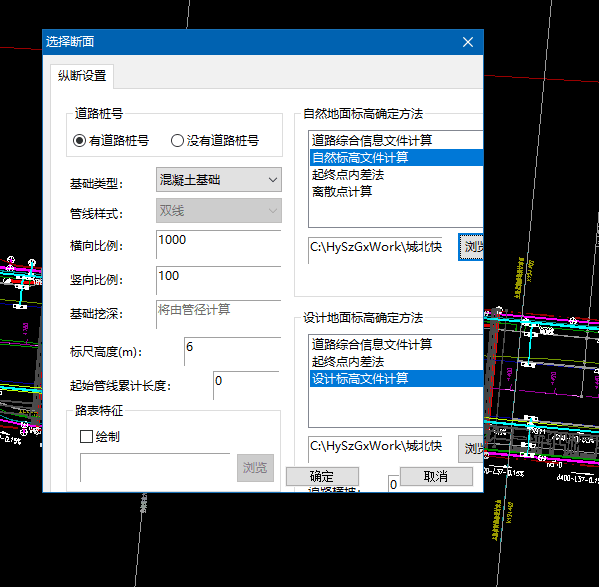

The window displayed in CAD-based software ( such as Hongye Municipal Pipeline Design Software) is incomplete, and some software command windows only display part of it, or overlap between function buttons.

:)



CAD software not working properly.

Hi Rohan,

Your concern with the NX 10 CAD software may need an in-depth technical assistance that can be addressed either on our TechNet forum or MSDN forum. For us to direct you to the correct location, we need you to answer the following questions:

• Is your computer connected to a domain?
• Are you creating a program or an application?
• Are you getting an error message when launching NX 10 CAD software? Can you provide us a screenshot?

Looking forward for your response.



CAD package program is not displaying ater a recent update on Windows 10.

Hi Dean,



The above issue might occur due to the incompatibility of the application with Window s10 OS on the computer.



Before we assist further, does the issue occur only on accessing CAD package on the computer?



Some of the programs/applications may not be compatible after upgrading the computer to a new and higher operating system. If haven’t tried, check if similar issue occurs on accessing other applications installed on the computer.



If the issue does not occur on accessing other applications, I suggest you to uninstall and reinstall CAD package application and check if the issue is resolved. If the issue persists, install the application in
Compatibility mode by following the steps below and check if the issue is resolved.



Compatibility mode runs the program in the current version of Windows using the settings from previous version of Windows.



Step 1: Install the device drivers manually in
Compatibility mode.

•
  Locate and right-click on the application setup file downloaded/saved on the computer and select
  Properties from the context menu.

•
  Click on the compatibility tab, check the box
  Run this program in compatibility mode for, select Windows 8.1/7 operating system from the drop down menu and proceed with the installation.

•
  After the installation is complete, restart the computer and check if the changes are effective.


Step 2: You can also follow the steps below and check if the issue is resolved.

•
  Press Windows logo key on the keyboard and type
  Run programs made for previous versions of Windows.

•
  Select the top most search result and follow from
  step 2 from the article Make older programs compatible with this version of
  Windows (Also applies to Windows 10).

•
  Check if the changes are effective.


Write to us with the status of CAD package application not displaying on the computer in the same post for further assistance. Your reply is most important for us to ensure we assist you accordingly.



Thank you.



Auto CAD

Hi,



Thank you for posting your concern on Microsoft Answer Community.



This is very unfortunate that you are having trouble in using both Auto CAD 2007 and 2015. As we have checked Auto CAD 2007 requirements on

Auto CAD website, we found that there is a design limitation for Windows 10. Auto CAD 2015 is well suited and designed for Windows 10, which is a good sign for you.



As you mentioned that Auto CAD 2007 and Auto CAD 2015 both temporary overrides are not working, we need clarity on this issue. Please provide us few information.

• Did you observe any error message while using Auto CAD 2015?

• Did you try reinstalling Auto CAD 2015?

However, we would like you to uninstall Auto CAD 2007. Then reinstall

Auto CAD 2015 and Auto CAD 2007 in
compatibility mode, after which you can check if the issue is resolved.



We await your response.



Aditya Roy

Microsoft Community – Moderator
