Windows 10: TPM2.0 Gigabyte motherboards 2014

I don't know how to open TPM2.0 and secure boots in Bios Gigabyte motherboards 2014.

:)



Gigabyte B360M H and TPM2

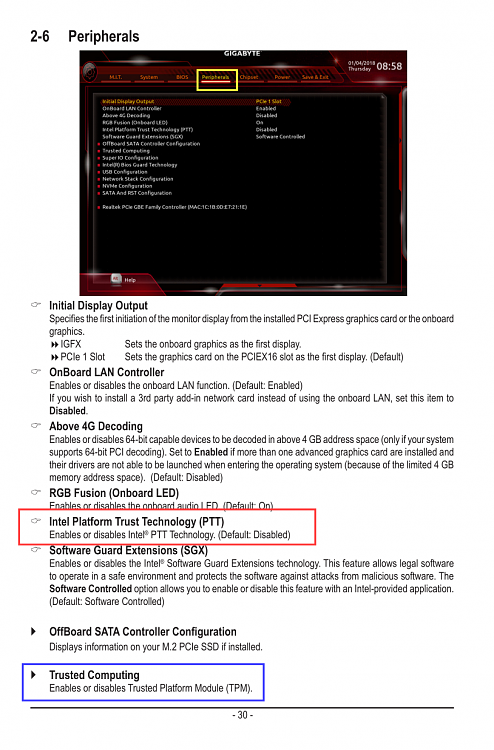

@Blake0202 Ok, you want to "enable" the setting in the RED box. And you need to make sure the setting in the BLUE box is disabled. That should turn on your TPM.

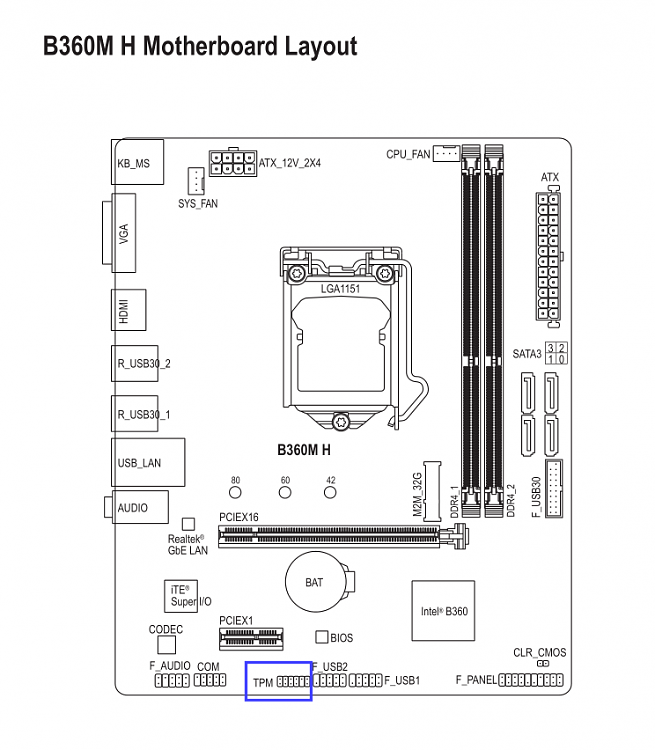

This is from YOUR motherboard manual. The setting in the BLUE box, is ONLY for a physical TPM module, plugged into the motherboard. The setting in the RED box is for the software TPM, which is the one you want to "enable", because you don't have a TPM module. If you did have a TPM module, it would be plugged in to the motherboard connector (shown by the BLUE box).



Gigabyte B360M H and TPM2

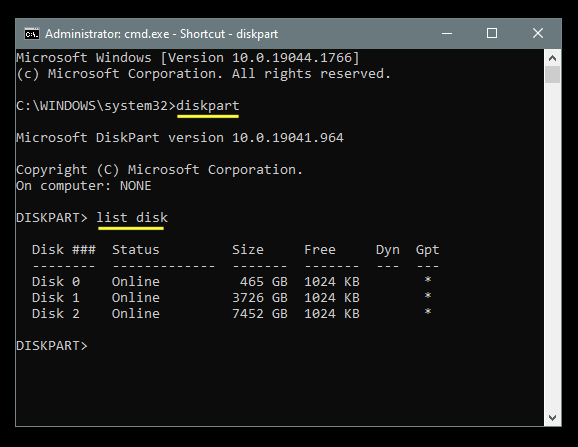

@Blake0202 Open a command prompt as Admin, and type these commands one at a time. Diskpart List Disk Then post a screen shot of what you see. It should look something like this...



Gigabyte B360M H and TPM2

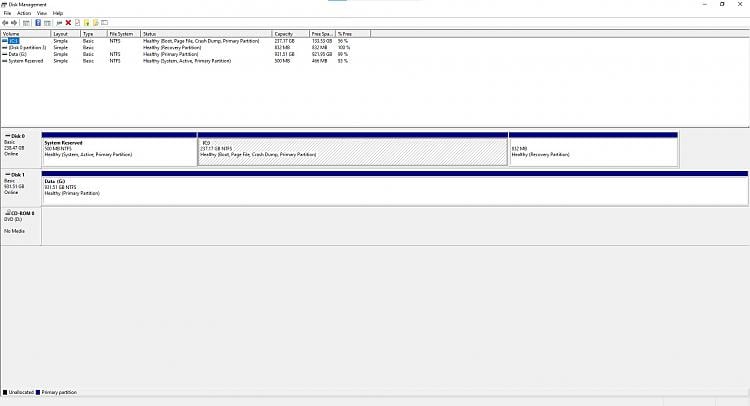

Hi guys here is my Disk Management screenshot

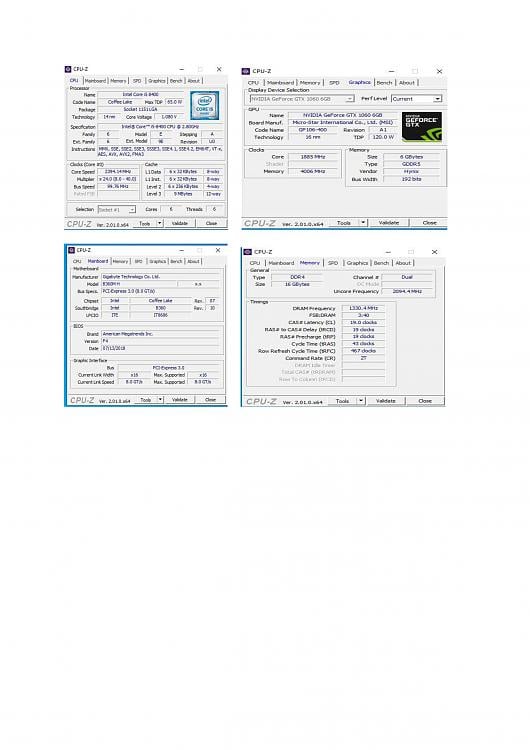

Here are my computer specs should this run windows 11 please
