Windows 10: Unable to assign unallocated space to any of the partition or to create a new volume from...

Discus and support Unable to assign unallocated space to any of the partition or to create a new volume from... in Windows 10 Network and Sharing to solve the problem; Actually, I recently installed SSD in my laptop and I deleted the previous c drive where I used to have my window. But it created an unallocated space... Discussion in 'Windows 10 Network and Sharing' started by JerrySSR, Jun 1, 2023.

  1. JerrySSR Win User

    Unable to assign unallocated space to any of the partition or to create a new volume from...


    Actually, I recently installed SSD in my laptop and I deleted the previous c drive where I used to have my window. But it created an unallocated space at the mid of my hard drive. When I am trying to create new volume over the unallocated space it says "There is not enough space available on the disk to complete this operation".The unallocated space is not adjacent to my any of the main partition. I have tried downloading every software regarding this but nothing helpedaiome,easeUS,minisoftware tool etc.. And sometimes it also showing "RPC server is not available".

    :)

    JerrySSR, Jun 1, 2023
    #1

  2. Can't assign unallocated space as new simple volume

    That is the problem when trying to create "new simple volume" I get the not enough space error.

    mehdifracso, Jun 1, 2023
    #2
  3. DaveM121 Win User
    Can't assign unallocated space as new simple volume

    Hi mehdifracso, what 3rd party software did you use?

    WIndows cannot extend a drive into unallocated space that is not immediately to the right of that partition

    Using 3rd party software like the free version AOMEI Partition Assistant you should be able to extend D or G into that unallocated space

    Otherwise you can just create a new partition on that unallocated space

    To do That:

    Right click the unallocated space, choose new simple volume, accept the default size and drive letter when asked

    DaveM121, Jun 1, 2023
    #3
  4. Pavan_N Win User

    Unable to assign unallocated space to any of the partition or to create a new volume from...

    creat a new volume/partition

    Hi,

    Creating a new partition in Windows 10.

    To create a new partition, the hard disk drive must contain unallocated space that is not part of an existing partition. Shrink the volume on an existing drive to create unallocated space, then create and format a new partition, using the following steps.


    • In Windows, search for and open Create and format hard disk partitions.

    • Right-click the Windows (CUnable to assign unallocated space to any of the partition or to create a new volume from... :) drive, or another drive on the computer.


    • Click Shrink Volume... from the drop-down menu to create unallocated space.

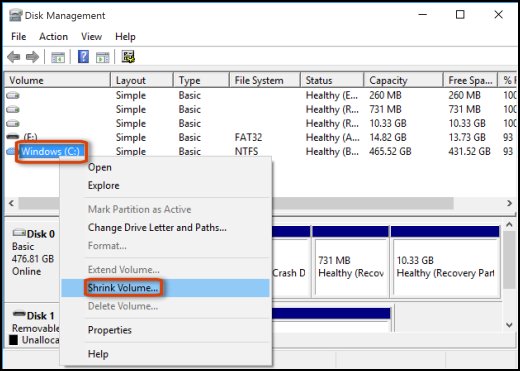

      Figure : Shrink volume

      Unable to assign unallocated space to any of the partition or to create a new volume from... c04789571.jpg

      The Shrink window opens.

    • Without making any changes to the settings in the Shrink window, click
      Shrink.

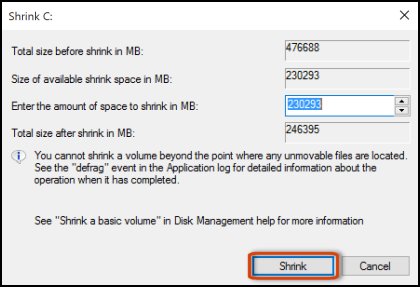

      Figure : Shrink volume C:

      Unable to assign unallocated space to any of the partition or to create a new volume from... c04789572.jpg

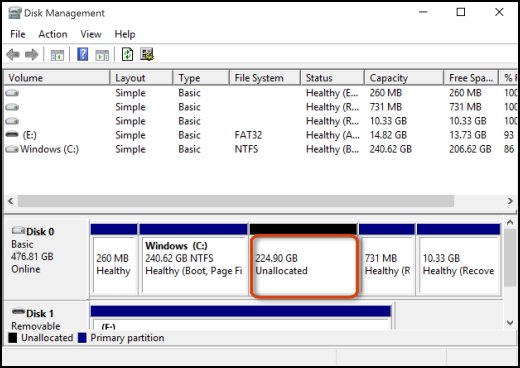

      When the shrink process is complete, the new partition displays in the Disk Management utility as Unallocated space.

      Figure : Unallocated space

      Unable to assign unallocated space to any of the partition or to create a new volume from... c04789573.jpg


    • Right-click the new partition, then select New Simple Volume... from the drop-down menu.

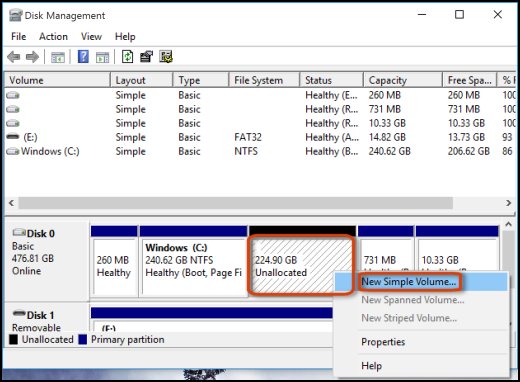

      Figure : Creating a new simple volume

      Unable to assign unallocated space to any of the partition or to create a new volume from... c04789574.jpg

      The New Simple Volume Wizard displays.

    • Click Next.
      The Specify Volume Size window displays.

    • Click Next to accept the default setting (recommended), or change the value in the Simple volume size in MB field, and then click
      Next.

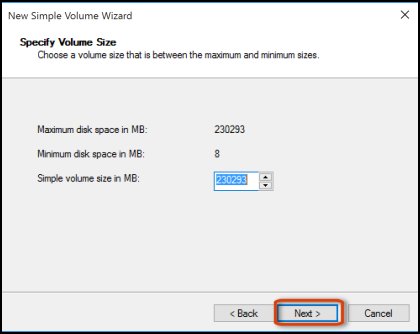

      Figure : Specify Volume Size

      Unable to assign unallocated space to any of the partition or to create a new volume from... c04789575.jpg

      The Assign Drive Letter or Path window displays.

    • Select a drive letter from the drop-down menu, then click Next.

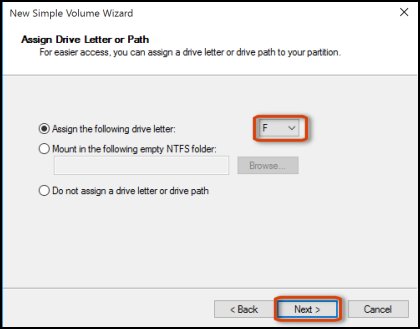

      Figure : Assign Drive Letter or Path

      Unable to assign unallocated space to any of the partition or to create a new volume from... c04789576.jpg

      The Format Partition window displays.

    • To name the drive, type a name in the Volume label field.


    • Click Next.

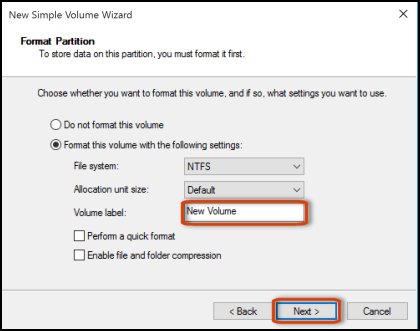

      Figure : New Simple Volume Wizard

      Unable to assign unallocated space to any of the partition or to create a new volume from... c04789577.jpg

      The Completing the New Simple Volume Wizard window displays.

    • Click Finish.

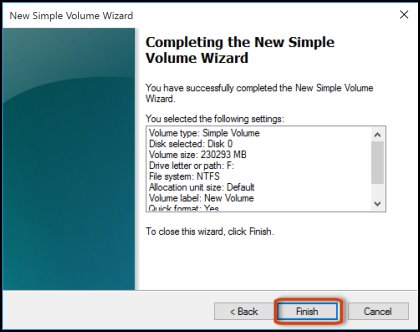

      Figure : Settings in Completing the New Simple Volume Wizard

      Unable to assign unallocated space to any of the partition or to create a new volume from... c04789578.jpg


      The Disk Management utility shows the formatting progress, and then displays the New Volume.

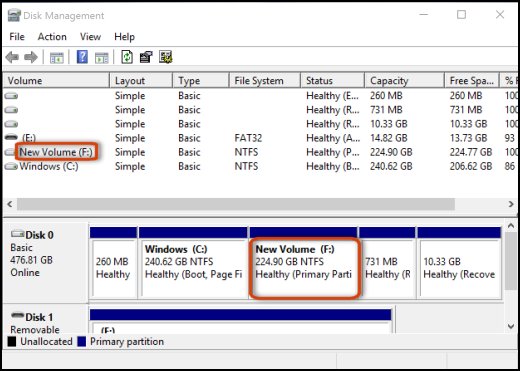

      Figure : New volume and its size

      Unable to assign unallocated space to any of the partition or to create a new volume from... c04789579.jpg


    Hope this helps. Thank you.

    Pavan_N, Jun 1, 2023
    #4
