Windows 10: Unable to Open settings Microsoft Protected EAP PEAP

Hi,

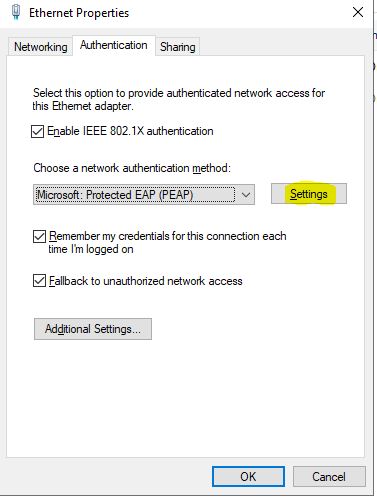

I need to open the Microsoft Protected EAP PEAP Setting but unable to click the setting ICON.

my installed Windows. after that this issue occur.


Kindly support to resolve this issue.




:)



WIFI: EAP-PEAP

I used these setting a while back on several model:

/discussions/board/message?board.id=connectivity&message.id=6472&query.id=153958#M6472

WLAN security mode: 802.1X

WLAN security settings:

WPA mode: EAP

EAP plug-in settings: EAP-PEAP (only one checked, top of the priority list)

EAP-PEAP->Options->Configure:

[General] tab

User Certificate: (not defined)

CA certificate: (Cisco ACS CA)

User name in use: From Certificate

User name: (Blank)

Realm in use: From Certificate

Realm: (Blank)

Allow PEAPv0: Yes

Allow PEAPv1: No

Allow PEAPv2: No

[EAP] tab

EAP-MSCHAPv2 (only one checked, top of priority list)

TKIP encryption: disabled (not displayed)

EAP-MSCHAPv2 ConfigurationUsername: (AD Domain name)\(Username)

Prompt password: No

Password: (domain password)

[Encryption] tab

(All algorithms are checked)

Remember to choose hidden in network status, if you have hidden SSID !

Also I use DHCP and a web-proxy.

You may wonder why there is notthing in username and realm, but this is since PEAP doesnt verify the certificate, hence you do not need any.

Allthough must of my other tests I did have user name and domain, but this failed ! Wierd.

A note: When I installed the ACS CA Certificate I shoose Internet=Yes and Cer-control online = No

(Find this under tools-security-Certificate control - choose the Cert and choose "trust settings"

Anyway the above settings works.

So the E60,E61,E70 and N80 works with LEAP and PEAP !!



EAP-PEAP on N80 ?

1. Yes. I have my notebook connecting to our wireless lan using EAP-PEAP MSChAPv2. WOrks perfectly fine.

2. Thawte Premium Server CA.

3. Our AP are production AP. 2 SSID available. 1 broadcast SSID for open network connection, while the other is hidden which requires EAP-PEAP.

Will check out with my network admin on the ACS portion. May i know which particular settings in ACS to look at?



WIFI: EAP-PEAP

Here is the actual configuration:

---------------------------------------------------

Connection Name: msu1x

Data Bearer: Wireless LAN

WLAN netw. name: msu1x

Network Status: hidden

WLAN network mode: Infrastructure

WLAN security mode: WPA/WPA2 (tried 802.1x but had the same errors)

WLAN security settings =>

WPA/WPA2: EAP

WPA2 only: disabled (also tried enabled got a different error)

EAP plug-in settings =>

EAP-PEAP selected and first. All others disabled.

EAP-PEAP configure =>

User Certificate: not defined

CA Certificate: none

User Name in Use: User-configured

User Name: Empty

Realm in Use: User-configured

Realm: Empty

Allow PEAPv0: yes

Allow PEAPv1: no

Allow PEAPv2: no

EAP-types: =>

EAP-MSCHAPv2 selected and first. All others disabled.

EAP-MSCHAPv2 configure: =>

User Name: *** Email address is removed for privacy ***

Prompt Password: yes

Password: my_Password

Ciphers:

All Cipher containing AES are selected.

----------------

If I set "WPA2 only: on" I get this error message "WLAN : Unable to connect. WLAN network not found"

If I set "WPA2 only: on" I get this error message "WLAN : Unable to connect. WPA authentication failed"

In EAP-MSCHAPv2 eventhough I set for promt password I have NEVER been asked to input my password.

I'd like to thank you all for trying to help me out with this !!
