Windows 10: USB SERIAL CH340 CHIPSET NOT WORKING AFTER Windows 10 KB5046613 and KB5046542 UPDATE

GreetingsAfter installing this update, the Windows 10 KB5046613 and KB5046542 UPDATE, the usb serial adapter, used to connect a scale, didn´t work anymoreThe device appears as an valid com3 port, but, when the software tries to communicate, returns that the device it's not available. I have to roolback the windows to a previous date backup, and everything works fine.Even installing a usb serial adapter with prolific 32 chipset, fails after restart.the wch.cn driver, from 30-01-2019 works fine, but the new one, it's not workingAfter retore windows to a previous point, the driver backs to 2019 v

:)



Win 10 USB Driver for connecting to CH340 serial to USB chip

I am trying to connect to an Arduino with a CH340 serial to USB chip via my USB port but the computer will not recognize it. I am reading up that it requires a USB driver update for it to work. However, I do not see anything that provides me with a driver
for a Windows 10 PC that only has USB 3.0 ports. Is there a Microsoft USB driver update that will enable connectivity to these boards?

Arduino Uno R3 ATmega328P CH340G board.



Installing USB-SERIAL CH340 drivers (Arduino)

Hello

I need to install (remotely) a driver "USB-SERIAL CH340" to allow an Arduino board to communicate with a PC. This driver is used as a serial port over a USB port. Since we are all confined ( Covid-19) , I can't go to his place to help him.

I got access to his PC uing AnyDesk

This driver is installed on my own PC, but I can't find a way to install in on my brother Windows 10 PC.

Any help appreciated
Good luck to all

Martin



Prolific USB-Serial


Thanks.

Have now got things working in a rather 'round-about' way.

I have 2 USB - Serial Interface cables.

1. The older which used to previously work on Windows 10 still works OK on a Windows XP Laptop proving that the interface is still functional.
2. The newer interface cables when connected to Windows 10 automatically installs the drivers & works on Windows 10, but will not work on Windows XP (I don't have a driver disk for this cable but it is CH340 v3.4.2014.8)

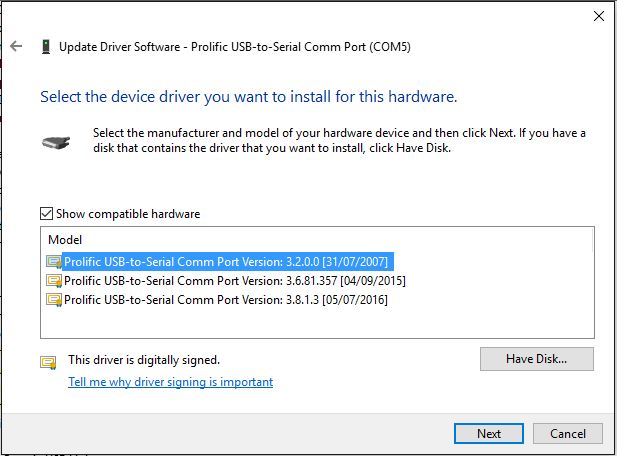

3. If I uninstall all relevant drivers, then install my original Vista Driver v3.2.0. & plug in the interface cable, Windows 10 will then update drivers BUT with Code 10 error. If I now update drivers back to v3.2.0.0 it works & I have a singe interface cable that works on both Windows 10 & Windows XP





   However, when I unplug the cable & re-insert, Windows 10 will automatically update the drivers to the NON-Working ones & I have to then re-select the v3.2.0.0 ones every time.

   Is there a way to stop Windows 10 from updating these drivers every time the cable is inserted?

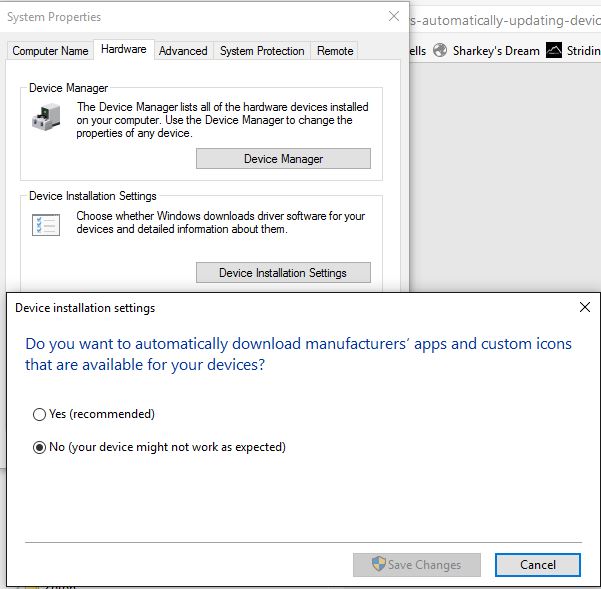

   I've tried changes the System settings for updates but without success.
