Windows 10: User virtual hard drive with CAL licence

Hello,I noticed after getting a CAL licence for our RDS server that user profiles were saved as UVHDs. The question is can the licence work if user data is saved like on all other servers, in the /Users folder or the User Profile Disks are necessary. If possible I would like to know what exactly is different between saving user data in /Users folder and saving it as virtual hard drives. I know the technical difference, one is a folder the other is a VHD, but what is the benefit security, licences.

:)



Can't remove Hyper-V Virtual Hard Drive partition

Hi Robert,

Thank you for writing to Microsoft Community Forums.

I understand that you are facing an issue when you are trying to remove the Hyper-V Virtual Hard Drive partition. This partition is just a virtual partition that is created by using the space within your physical hard disk, so that
it can be used within Hyper-V. Since you are no longer using Hyper-V and you wish to remove the Virtual Hard Drive partition, I would suggest you to follow the steps below and check if it is helpful to you.

Steps to remove the Virtual Hard Drive partition using Disk Management:

1. Press the Windows key and
   R key, this will open the Run dialogue box for you.

2. Type diskmgmt.msc and press
   Enter, this will open the Disk Management Window for you.

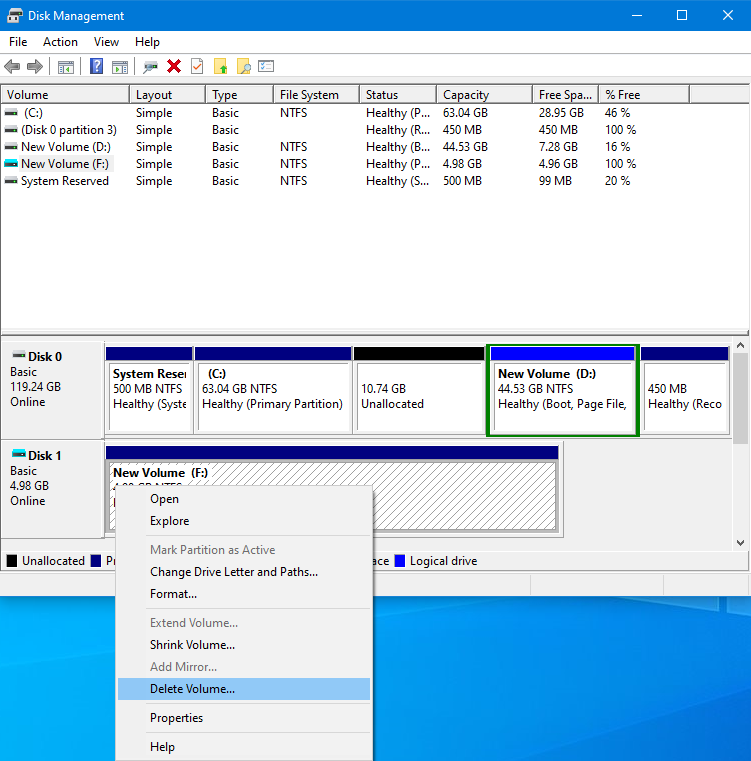

3. Your Virtual Hard Drive will be indicated by a ‘blue’ drive beside the
   Disk n (n is the disk number to which the VHD is associated), select the allocated
   Volume, right-click and select Delete Volume. You can check the picture below for your reference.




4. You will receive a prompt, click on
   Yes. This will delete the volume allocated to the Virtual Hard Drive and the space allocated will now be turned into an
   Unallocated space.

5. To detach the Virtual Hard Drive completely,
   right-click on the Disk and select Detach VHD.

6. You will receive a prompt, you may click on the check box to
   Delete the virtual hard disk after removing the disk. Click on
   OK.


This will remove the Hyper-V Virtual Hard Drive partition from your system.

If the issue still persists, I would suggest you to post your query in IT Pro

TechNet forums, where we have support professionals who are well equipped with the knowledge on the issues with Hyper-V and Virtual Hard Drive to assist you with your query.

Regards,

Aaron Summith

Microsoft Community - Moderator



Unable to create virtual hard drive

Hi,



Thank you for writing to Microsoft Community Forums.



As you are trying to create a virtual machine, you can try creating a virtual hard disk manually by using PowerShell command and check if that helps.



Please follow the steps mentioned below to create virtual hard disk.

• Type PowerShell in the Windows start menu.

• Right click on PowerShell and select run as administrator.

• Please enter this command New-VHD "C:\Hyper-V\Virtual Machines\Drive1.vhdx" –size 60GB –dynamic
  and hit enter key. (Note: you can change the size of the virtual hard drive according to your requirement)

• Open Disk Management.

• Click on Action and select
  Attach VHD.​

• Click on Browser and navigate to the location
  C:\Hyper-V\Virtual Machines and select drive1 and click on
  Open.​

• Click on OK.​

• Now, right click on Disk 1 and select
  Initialize Disk.​

• Select the Type of partition you want to use and click on
  OK.​

• Now, right click on unallocated space and click on
  New Simple Volume.​

• Follow the on-screen instructions to assign a
  drive letter.


If the issue persists, I suggest you to post your query in TechNet
forums, where we have support professionals who are well equipped with the knowledge to create virtual machines.



Hope it helps.

Noor Azam S

Microsoft Community - Moderator



Overclock your hard drive!!!

Heres a much easier hack that I realized quite a few years ago that really does work!

REQUIREMENTS:

• Hard drive with molex power connection.
• PSU with more than 1 strand that has molex plugs on it.
• Wire strippers, soldering iron if you're fancy, electrical tape if you're not.

STEPS:

• Take the strand of connectors from your PSU, and decide which one will be the donator for this overclocking adventure.
• Cut the yellow and orange cables, then twist them together.
• Find the power connector you've chosen as the overclocking connector, and release the orange cable from the connector. Now use your preferred method to bind them together, then place it back together.
• Plug in a drive and feel the speed!

Congratulations! You've just overclocked your hard drive!
