Windows 10: UWP icons missing only on the taskbar

This problem occured only recently. Just now I launched Calculator and Edge and noticed that their icons are missing. I looked at the taskbar, turns out there were more missing icons. All turned out to be for UWP apps. What to do?

:)



UWP icons are missing

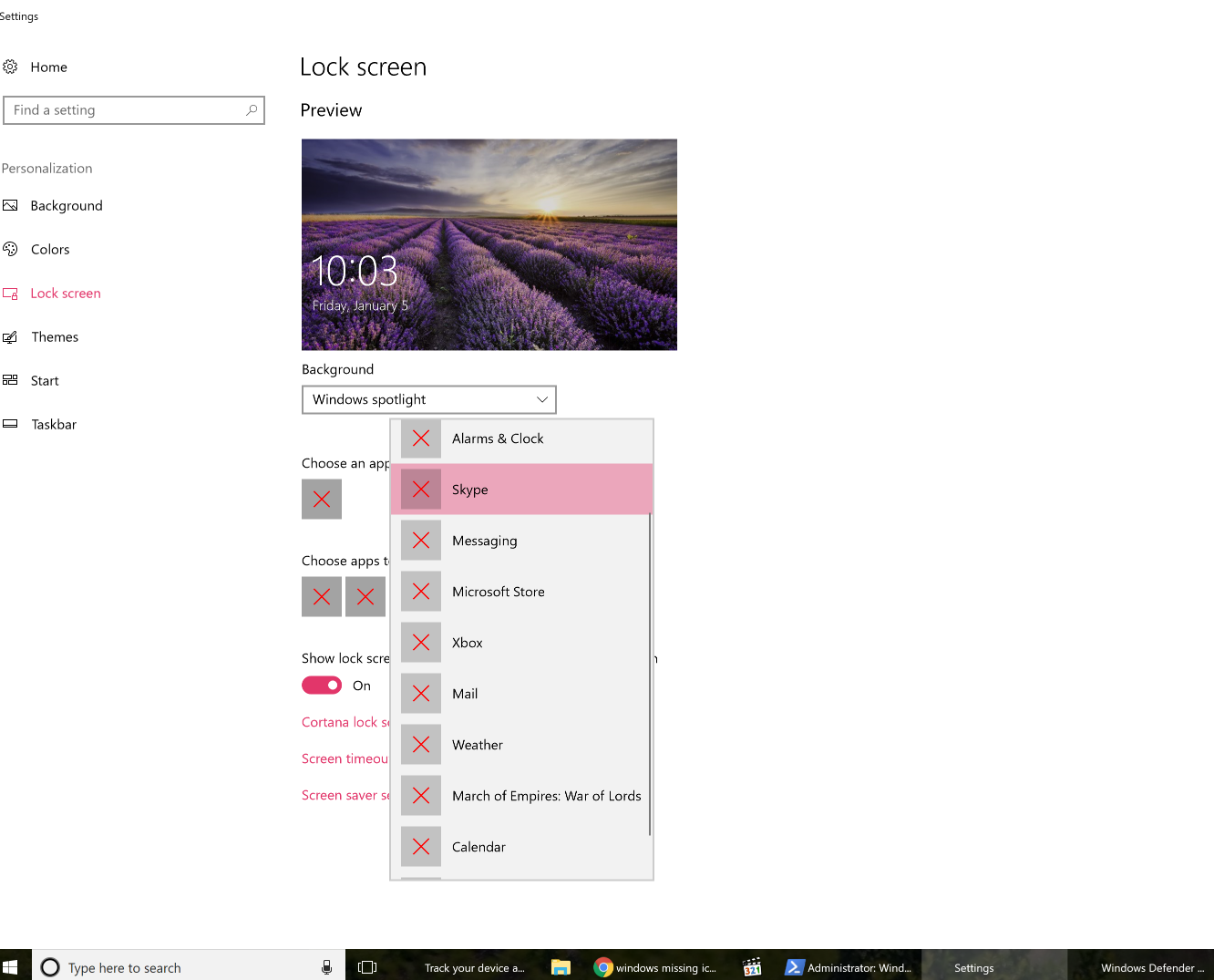

I noticed that Micrsoft Edge was missing the taskbar icon, and then noticed all UWP apps are missing their icons. You can see this clearly in this screenshot of the lock screen settings:





Things tried:

• Tried repairing Windows using DISM.exe /Online /Cleanup-image /Restorehealth and sfc /scannow, but they didn't find any problems.

• Reinstalling Edge with the following command didn't help either: Get-AppXPackage -AllUsers -Name Microsoft.MicrosoftEdge | Foreach {Add-AppxPackage -DisableDevelopmentMode -Register “$($_.InstallLocation)\AppXManifest.xml” -verbose}

• updating my graphics drivers to no avail.

• chkdsk C: /f /r /x

• Get-AppxPackage | Remove-AppxPackage then reboot and follow with Get-AppxPackage -allusers | foreach {Add-AppxPackage -register "$($_.InstallLocation)\appxmanifest.xml" -DisableDevelopmentMode} and reboot again.

• Try and delete %AppData%..\Local\IconCache.db then restart.

• Rebuild a Broken Icon Cache in Windows 10 - "To rebuild the icon cache, you have to delete all the iconcache files that appear in this folder": \AppData\Local\Microsoft\Windows\Explorer


Any idea what the problem might be, or suggestions on how to get the icons back?

Windows 10 Pro, 1709; OS Build 16299.192.



System Icons on taskbar

Hi,

Thank you for posting on Microsoft Communities.

Are you referring to the clock system icon on the taskbar?

If so, I suggest you to follow the steps mentioned below:

•
  Click on the search bar on the taskbar.

•
  Type system icons.

•
  Under Turn System Icons ON or OFF, turn On the Clock and check with the issue.


Hope it helps.



Missing Taskbar Icons


I'm having the same problem with 'Metro' icons. They don't show in the taskbar and they don't show within other apps. Shortcuts just show the generic page icon. The only place app icons show is in the start menu and those are really tiles.

Here's an example of what I'm dealing with:




I have tried scf (sfc?) scan and dsim, no luck. Have also tried everything mentioned in this thread. Nothing.

One suggestion that offered some promise was to look at the icon files to see if they look alright but didn't suggest anything beyond that. I browsed to C:\Program Files\WindowsApps\microsoft.windowscommunicationsapps_17.6310.42251.0_x64__8wekyb3d8bbwe\images and found some icon files that seemed ok but then a bunch that appeared blank:




Any thoughts?
