Windows 10: VMware Error about Credential/Device guard ON/OFF on Windows 10 Home Edition

NitinchandraTaksande · Jul 23, 2018

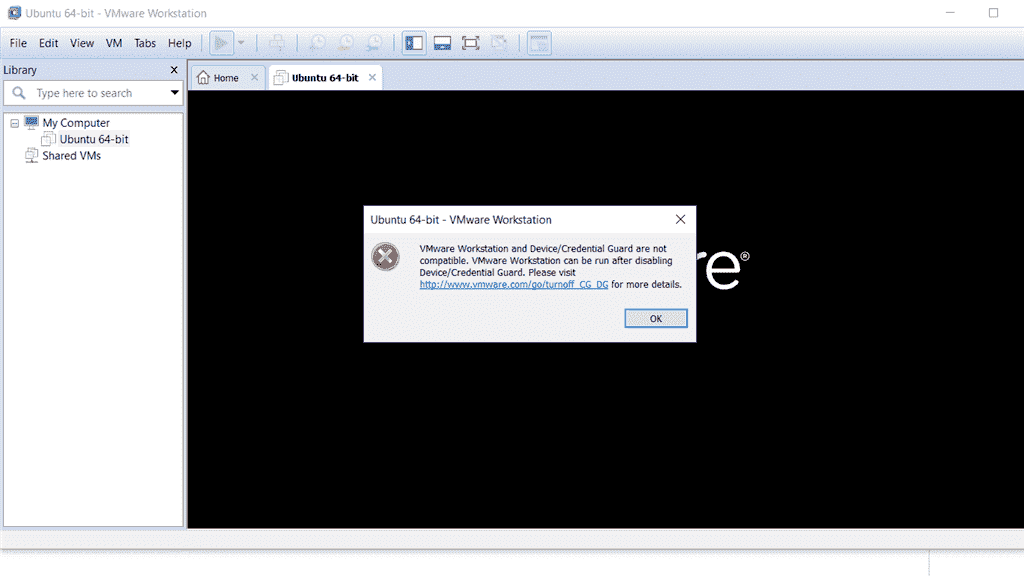

Since Spring update the VMware giving error while running the Ubuntu OS, "VMware Player and Device/Credential Guard are not compatible. VMware Player can be run after disabling Device/Credential Guard. Please visit http://www.vmware.com/go/turnoff_CG_DG for more details."

But after going through troubleshooting, I came to know that it is only for Windows 10 Enterprise or Education edition only, while I use Windows 10 Home Edition. I don't get an option of device guard to disable neither in group policy editor nor there is Hyper-V option in windows on/Off feature settings. Please help me to get this problem solved.

:)

IvanPiacun · Jul 23, 2018

Credential Guard

When will Credential Guard be supported on the same Windows 10 Enterprise device as Barkly and VMWare Workstation Pro.

It would be nice to be able to run these products without sacrificing Credential Guard.

Moved from Insider

Brink · Jul 23, 2018

Credential Guard lab companion

If you have heard about Credential Guard in Windows Server 2016 (and in Windows 10), but do not have an environment to try it out, here is a lab environment we built for you to play.

Lab access

The link will lead you to a sign up page, after that, you will see the following labs listed for Windows Server 2016:

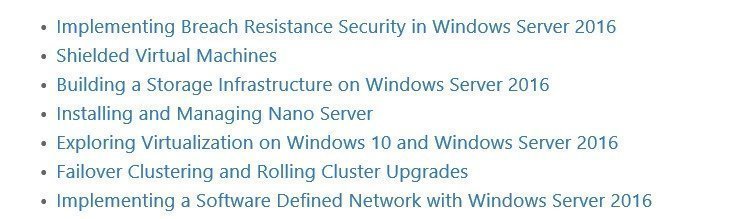

Windows Server 2016 labs

There are 3 exercises in the “Implementing Breach Resistance Security in Windows Server 2016”:

Credential Guard

Remote Credential Guard

Device Guard

This blogpost will walk you through the Credential Guard lab details.

After click on the link of Breach Resistance lab, you be required to sign in and then you can launch the lab:

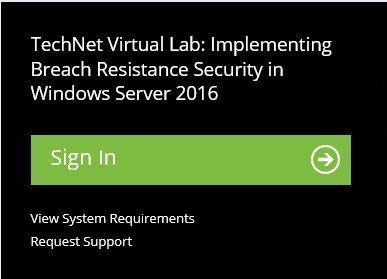

Sign-in

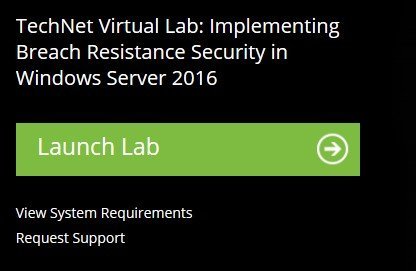

Launch page

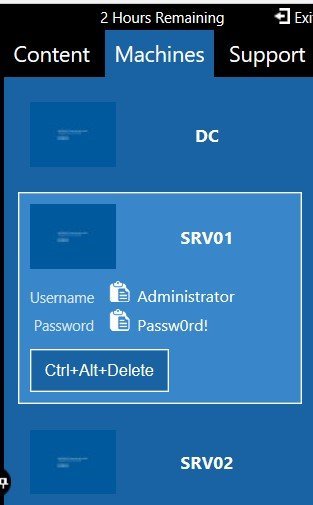

It takes a few minutes to create the VMs, and once it has done, you will see the following machines prepared:

Initialize

DC: domain controller, which is not used for this exercise.

SRV01 and SRV02: both are Windows Server 2016, and used for the lab exercise.

Lab exercise – Explained

The steps are listed in the Content section:

Content

This lab is structured to cover the following in sequence:

Understand how attackers can use the hash in memory to gain access to domain controllers

Configure Credential Guard

Verify the hash in memory is protected using Credential Guard

You can follow the steps listed under the content section to complete the lab, the intent of the blog, is to break the procedures into groups, to help you understand the exercise better.

Prep the hash

Lsass.exe is the process which handles user logon, it stores the user credential information in its memory. The memory is cleared when the machine starts up. In this lab environment, all the virtual machines start at the time lab launches, when you logon to the machine, you will only have the logon user credential information in memory. In order to demonstrate an attacker gaining user access using other account’s hash, the first part of the lab is to simulate a server which has been running for a while, different users had remotely or locally connected to it, therefore, lsass memory stored many different user credential information.
This is accomplished by step 1-8.

Retrieving credential hash

Mimikatz is a popular tool for retrieving lsass memory information. The tool has been copied to the lab machines, step 9-13 walk you through the process of dumping lsass memory using Mimikatz.

Pass the Hash

Pass the hash is a hacking technique that allows an attacker to authenticate by using the underlying NTLM, instead of specifying the user password. In step 14 to 24, you will extract LabAdmin hash from lsass using Mimikatz, and use the hash to open a PowerShell console, and perform a couple of operations using the LabAdmin privilege:

Add a user to the domain admin group

Open remote PowerShell connection to a domain controller

Both operations could not be performed by the logon user. But using the hash of the LabAdmin, an attacker will be able to do it using the information retrieve from Lsass memory.

Configure and verify Credential Guard

Step 25 to 36 illustrate the steps to configure credential guard, then verify its status using msinfo32.exe and PowerShell.

Step 37 to 43 goes further to use Mimikatz to show the hash in Lsass is now encrypted using Credential Guard.

More info

The exercise illustrated the benefit of Credential Guard in Windows Server 2016 as well as Windows 10. For more information, you can find here.
Click to expand...

Source: Credential Guard lab companion Datacenter and Private Cloud Security Blog

See also:

Enable or Disable Credential Guard in Windows 10 Windows 10 Security System Tutorials

Verify if Credential Guard is Enabled or Disabled in Windows 10 Windows 10 Security System Tutorials

BimalPanigrahi · Jul 23, 2018

VMware Workstation and Device/Credential Guard are not compatible

I'm
using windows 10 latest insider version.my problem is when I open VMware player it shows:

"VMware Workstation and Device/Credential Guard are not compatible. VMware Workstation can be run after disabling Device/Credential Guard. Please visit http://www.vmware.com/go/turnoff_CG_DG for more details."

I apply this technique-

Goto Local Computer Policy - Computer Configuration - Administrative Templates - System - Device Guard - Turn on Virtualization

Double click that .... and select "Disable" ...
Go to Control Panel - Uninstall a Program - Turn Windows features on or off - (uncheck/turn off) Hyper-V.

Click OK

Select Do not restart.
And then type the following cmds in cmd prompt.. to Delete the related EFI variables from the BCD file...

Launch cmd as admin...

bcdedit /create {0cb3b571-2f2e-4343-a879-d86a476d7215} /d "DebugTool" /application osloader

bcdedit /set {0cb3b571-2f2e-4343-a879-d86a476d7215} path "\EFI\Microsoft\Boot\SecConfig.efi"

bcdedit /set {bootmgr} bootsequence {0cb3b571-2f2e-4343-a879-d86a476d7215}

bcdedit /set {0cb3b571-2f2e-4343-a879-d86a476d7215} loadoptions DISABLE-LSA-ISO,DISABLE-VBS

bcdedit /set hypervisorlaunchtype off

but it can't solve the problem. please help!
