Windows 10: Wbem missing "microsoft.configurationManager._.mof" files

I am having what seems like endless issues with one specific PC, where I am receiving .Net runtime errors for a system management unhandled exception. It is causing a single program to crash immediately on run, and another to fail to run several hours after installation and use.Digging into the WMI control properties I get the "failed to initialize all required WMI classes"Upon comparing the wbem structure to a nearly identical set of working PCs, I appear to be missing 4 .mof files titled "Microsoft.ConfigurationManager.AssetProvider""Microsoft.ConfigurationManager.DefaultAppsProvider""Micros

:)



Corrupt MOF file

Need to gain access to Wbem MOF files to include #pragma autorecover. Have compiled a list of MOF's requiring this change.

Have tried a number of suggestions without success!



WMIs lot of errors in the windows events visuation registry

Hi there!

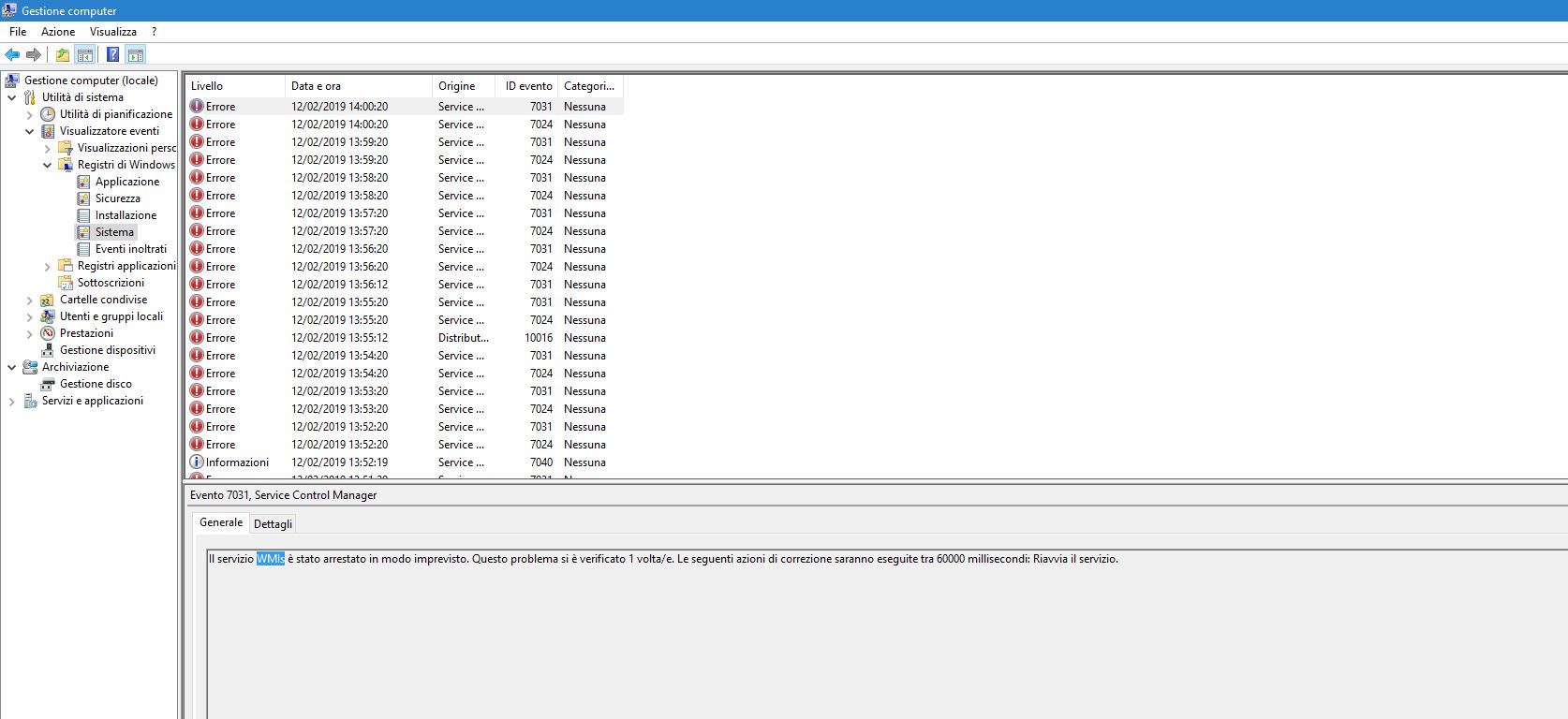

I do have a lot of errors in the Windows event visualization registry about this service WMIs, as you can see here:





Ok the descpription is in italian but it really doesn't say much. Also I have seen that there is a diagnostic utility ( https://www.microsoft.com/en-us/download/details.aspx?id=7684 ) regarding the WMI service which I have used and it has generated 3 log
reports which for exemple reports error like these:

Code:

40864 23:31:23 (0) ** 49 error(s) 0x80041003 - (WBEM_E_ACCESS_DENIED) Current user does not have permission to perform the action

40865 23:31:23 (0) ** => This error is typically due to insufficient or restricted permissions in the examined system.

40866 23:31:23 (0) ** => ENSURE you are a Full Administrator of the examined system, if the WMI provider or the

40867 23:31:23 (0) **    WMI system security do not enforce any restrictions.

40868 23:31:23 (0) **

40869 23:31:23 (0) **

40870 23:31:23 (0) ** 3 error(s) 0x8004100E - (WBEM_E_INVALID_NAMESPACE) Namespace specified cannot be found

40871 23:31:23 (0) **

40872 23:31:23 (0) ** 13 error(s) 0x80041002 - (WBEM_E_NOT_FOUND) Object cannot be found

40873 23:31:23 (0) ** => This error is typically a WMI error. This WMI error is due to:

40874 23:31:23 (0) **    - a missing WMI class definition or object.

40875 23:31:23 (0) **      (See any GET, ENUMERATION, EXECQUERY and GET VALUE operation failures).

40876 23:31:23 (0) **      You can correct the missing class definitions by:

40877 23:31:23 (0) **      - Manually recompiling the MOF file(s) with the 'MOFCOMP <FileName.MOF>' command.

40878 23:31:23 (0) **      Note: You can build a list of classes in relation with their WMI provider and MOF file with WMIDiag.

40879 23:31:23 (0) **            (This list can be built on a similar and working WMI Windows installation)

40880 23:31:23 (0) **            The following command line must be used:

40881 23:31:23 (0) **            i.e. 'WMIDiag CorrelateClassAndProvider'

40882 23:31:23 (0) **      Note: When a WMI performance class is missing, you can manually resynchronize performance counters

40883 23:31:23 (0) **            with WMI by starting the ADAP process.

40884 23:31:23 (0) **    - a WMI repository corruption.

40885 23:31:23 (0) **      In such a case, you must rerun WMIDiag with 'WriteInRepository' parameter

40886 23:31:23 (0) **      to validate the WMI repository operations.

40887 23:31:23 (0) **    Note: ENSURE you are an administrator with FULL access to WMI EVERY namespaces of the computer before

40888 23:31:23 (0) **          executing the WriteInRepository command. To write temporary data from the Root namespace, use:

40889 23:31:23 (0) **          i.e. 'WMIDiag WriteInRepository=Root'

40890 23:31:23 (0) **    - If the WriteInRepository command fails, while being an Administrator with ALL accesses to ALL namespaces

40891 23:31:23 (0) **      the WMI repository must be reconstructed.

40892 23:31:23 (0) **    Note: The WMI repository reconstruction requires to locate all MOF files needed to rebuild the repository,

40893 23:31:23 (0) **          otherwise some applications may fail after the reconstruction.

40894 23:31:23 (0) **          This can be achieved with the following command:

40895 23:31:23 (0) **          i.e. 'WMIDiag ShowMOFErrors'

40896 23:31:23 (0) **    Note: The repository reconstruction must be a LAST RESORT solution and ONLY after executing

40897 23:31:23 (0) **          ALL fixes previously mentioned.

40898 23:31:23 (2) !! WARNING: Static information stored by external applications in the repository will be LOST! (i.e. SMS Inventory)

40899 23:31:23 (0) **

40900 23:31:23 (0) **

40901 23:31:23 (0) ** 1 error(s) 0x80041001 - (WBEM_E_FAILED) Call failed

40902 23:31:23 (0) ** => This error is typically a WMI system error. WMI system errors can find their origins in:

40903 23:31:23 (0) **    - Failing WMI system components (see any missing WMI system files or DCOM registration

40904 23:31:23 (0) **      issues previously mentioned).

40905 23:31:23 (0) **    - Failing WMI providers (see any WMI provider DCOM registration

40906 23:31:23 (0) **      issues previously mentioned).

40907 23:31:23 (0) **    - Failing operation in WMI providers because the underlying component queried by the WMI

40908 23:31:23 (0) **      provider is not available (i.e. not installed, not running or not available).

40909 23:31:23 (0) **    - Corrupted WMI repository.

40910 23:31:23 (0) **      - Validating the repository consistency. In such a case, you must rerun WMIDiag with 'WriteInRepository' parameter

40911 23:31:23 (0) **        to validate the WMI repository operations.

40912 23:31:23 (0) **      Note: ENSURE you are an administrator with FULL access to WMI EVERY namespaces of the computer before

40913 23:31:23 (0) **            executing the WriteInRepository command. To write temporary data from the Root namespace, use:

40914 23:31:23 (0) **            i.e. 'WMIDiag WriteInRepository=Root'

40915 23:31:23 (0) **      - If the WriteInRepository command fails, while being an Administrator with ALL accesses to ALL namespaces

40916 23:31:23 (0) **        the WMI repository must be reconstructed.

40917 23:31:23 (0) **    Note: The WMI repository reconstruction requires to locate all MOF files needed to rebuild the repository,

40918 23:31:23 (0) **          otherwise some applications may fail after the reconstruction.

40919 23:31:23 (0) **          This can be achieved with the following command:

40920 23:31:23 (0) **          i.e. 'WMIDiag ShowMOFErrors'

40921 23:31:23 (0) **    Note: The repository reconstruction must be a LAST RESORT solution and ONLY after executing

40922 23:31:23 (0) **          ALL fixes previously mentioned.

40923 23:31:23 (2) !! WARNING: Static information stored by external applications in the repository will be LOST! (i.e. SMS Inventory)

40924 23:31:23 (0) **

40925 23:31:23 (0) ** ----------------------------------------------------------------------------------------------------------------------------------

40926 23:31:23 (0) ** Unexpected, wrong or missing registry key values: ................................................................... 1 KEY(S)!

40927 23:31:23 (2) !! WARNING: Unexpected registry key value:

40928 23:31:23 (0) **   - Current:  HKLM\SYSTEM\CurrentControlSet\Services\winmgmt\ImagePath (REG_EXPAND_SZ) -> %systemroot%\system32\svchost.exe -k netsvcs -p

40929 23:31:23 (0) **   - Expected: HKLM\SYSTEM\CurrentControlSet\Services\winmgmt\ImagePath (REG_EXPAND_SZ) -> %systemroot%\system32\svchost.exe -k netsvcs

40930 23:31:23 (0) **     From the command line, the registry configuration can be corrected with the following command:

40931 23:31:23 (0) **

40932 23:31:23 (0) ** ----------------------------------------------------------------------------------------------------------------------------------

40933 23:31:23 (1) !! ERROR: MOF file(s) referenced in the Auto-Recovery list can't be found on the disk: ................................. 4 ERROR(S)!

40934 23:31:23 (0) ** - C:\PROGRAMDATA\SOLIDWORKS ELECTRICAL\MSSQL12.TEW_SQLEXPRESS\MSSQL\BINN\XESQLPKG.MOF

40935 23:31:23 (0) ** - C:\PROGRAMDATA\SOLIDWORKS ELECTRICAL\MSSQL12.TEW_SQLEXPRESS\MSSQL\BINN\XESQLMINPKG.MOF

40936 23:31:23 (0) ** - C:\PROGRAMDATA\SOLIDWORKS ELECTRICAL\MSSQL12.TEW_SQLEXPRESS\MSSQL\BINN\XESOSPKG.MOF

40937 23:31:23 (0) ** - C:\PROGRAMDATA\SOLIDWORKS ELECTRICAL\MSSQL12.TEW_SQLEXPRESS\MSSQL\BINN\XEPKG0.MOF

40938 23:31:23 (0) ** => After fixing all other issues previously mentioned, if the WMI repository is rebuilt,

40939 23:31:23 (0) **    the listed MOF file(s) will not be recompiled, and therefore the definition they contain

40940 23:31:23 (0) **    will not be available in the WMI repository.

40941 23:31:23 (0) ** => You must retrieve a copy of the missing MOF file(s) unless these were uninstalled with

40942 23:31:23 (0) **    an application or were intentionally deleted.

40943 23:31:23 (0) **

40944 23:31:23 (1) !! ERROR: MOF file(s) present in the WBEM folder not referenced in the Auto-Recovery list: ............................. 53 ERROR(S)!

40945 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\AGENTWMI (1).MOF

40946 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\AGENTWMIUNINSTALL (1).MOF

40947 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\AGENTWMIUNINSTALL.MOF

40948 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\APPBACKGROUNDTASK_UNINSTALL.MOF

40949 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DMWMIBRIDGEPROV1 (1).MOF

40950 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DMWMIBRIDGEPROV1_UNINSTALL (1).MOF

40951 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DMWMIBRIDGEPROV1_UNINSTALL.MOF

40952 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DMWMIBRIDGEPROV_UNINSTALL.MOF

40953 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DNSCLIENTPSPROVIDER_UNINSTALL.MOF

40954 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\EMBEDDEDLOCKDOWNWMI_UNINSTALL.MOF

40955 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\ISCSIREM.MOF

40956 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\ISCSIWMIV2_UNINSTALL.MOF

40957 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MDMAPPPROV_UNINSTALL.MOF

40958 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MDMSETTINGSPROV_UNINSTALL.MOF

40959 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MICROSOFT.APPV.APPVCLIENTWMI (1).MOF

40960 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MICROSOFT.UEV.MANAGEDAGENTWMI (1).MOF

40961 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MICROSOFT.UEV.MANAGEDAGENTWMIUNINSTALL (1).MOF

40962 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MICROSOFT.UEV.MANAGEDAGENTWMIUNINSTALL.MOF

40963 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MISPACE_UNINSTALL.MOF

40964 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NDISTRACE.MOF

40965 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETADAPTERCIMTRACEUNINSTALL.MOF

40966 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETADAPTERCIM_UNINSTALL.MOF

40967 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETDACIM_UNINSTALL.MOF

40968 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETEVENTPACKETCAPTURE_UNINSTALL.MOF

40969 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETNCCIM_UNINSTALL.MOF

40970 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETPEERDISTCIM_UNINSTALL.MOF

40971 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETTCPIP_UNINSTALL.MOF

40972 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETTTCIM_UNINSTALL.MOF

40973 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NLMCIM_UNINSTALL.MOF

40974 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\OFFLINEFILESCONFIGURATIONWMIPROVIDER_UNINSTALL.MOF

40975 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\OFFLINEFILESWMIPROVIDER_UNINSTALL.MOF

40976 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\PCSVDEVICE_UNINSTALL.MOF

40977 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\POLPROC.MOF

40978 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\POLPROU.MOF

40979 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\QOSWMITRC_UNINSTALL.MOF

40980 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\QOSWMI_UNINSTALL.MOF

40981 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\REMOVE.MICROSOFT.APPV.APPVCLIENTWMI (1).MOF

40982 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\REMOVE.MICROSOFT.APPV.APPVCLIENTWMI.MOF

40983 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\STORAGEWMI_PASSTHRU_UNINSTALL.MOF

40984 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\STORAGEWMI_UNINSTALL.MOF

40985 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\VPNCLIENTPSPROVIDER_UNINSTALL.MOF

40986 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WDACWMIPROV_UNINSTALL.MOF

40987 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WDF01000UNINSTALL.MOF

40988 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WFASCIM_UNINSTALL.MOF

40989 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WIN32_ENCRYPTABLEVOLUMEUNINSTALL.MOF

40990 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WINSATUNINSTALL.MOF

40991 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WSMAGENTUNINSTALL.MOF

40992 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WSP_FS_UNINSTALL.MOF

40993 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WSP_HEALTH_UNINSTALL.MOF

40994 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WSP_SR_UNINSTALL.MOF

40995 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WUAPROVIDER_UNINSTALL.MOF

40996 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WUDFX02000UNINSTALL.MOF

40997 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WUDFXUNINSTALL.MOF

40998 23:31:23 (0) ** => After fixing all other issues previously mentioned, if the WMI repository is rebuilt,

40999 23:31:23 (0) **    the listed MOF file(s) will not be recompiled, and therefore the definition they contain

41000 23:31:23 (0) **    will not be available in the WMI repository.

41001 23:31:23 (0) ** => You must manually recompile the MOF file(s) with the 'MOFCOMP.EXE <FileName.MOF>' command.

41002 23:31:23 (0) ** => If you want the MOF file(s) to be part of the Auto-Recovery list, make sure the

41003 23:31:23 (0) **    statement '#PRAGMA AUTORECOVER' is included.

41004 23:31:23 (0) **    Note: MOF file(s) marked with (*) are NEVER included AT SETUP in the auto-recovery process.

41005 23:31:23 (0) **          MOF file(s) containing UNINSTALL statements (i.e. '#PRAGMA DELETECLASS') should NEVER be included in the auto-recovery process.

41006 23:31:23 (0) **          Refer to the list of MOF files below NOT containing the '#PRAGMA AUTORECOVER' statement' for more information.

41007 23:31:23 (0) **

41008 23:31:23 (0) ** ----------------------------------------------------------------------------------------------------------------------------------

41009 23:31:23 (1) !! ERROR: Unable to locate MOF file(s) in the WBEM folder or in Auto-Recovery list for the

41010 23:31:23 (1) !! ERROR: following CIM registered WMI provider(s): .................................................................... 1 ERROR(S)!

41011 23:31:23 (0) ** - ROOT/STANDARDCIMV2/EMBEDDED, WEMSAL_WMIPROVIDER ({ABB3FBAD-CFBB-41C6-8CD2-72F52EA60ADB})

41012 23:31:23 (0) ** => If the WMI repository is rebuilt, the listed provider(s) may not be available anymore

41013 23:31:23 (0) **    because the registration data is not located in the list of known MOF files. You can either:

41014 23:31:23 (0) **    - Locate the MOF file(s) and manually recompile the corresponding MOF file(s) with

41015 23:31:23 (0) **      the 'MOFCOMP.EXE <FileName.MOF>' command.

41016 23:31:23 (0) **    - Retrieve a copy of the missing MOF file(s) and make sure there are part of the Auto-Recovery.

41017 23:31:23 (0) **      registry key.

41018 23:31:23 (0) **    Note: If you want the MOF file to be part of the Auto-Recovery, make sure the

41019 23:31:23 (0) **          statement '#PRAGMA AUTORECOVER' is included.

41020 23:31:23 (0) **    - If the corresponding MOF file can't be located, the MOF file can be recreated with

41021 23:31:23 (0) **      WBEMTEST and/or CIM Studio available at

41022 23:31:23 (0) **      http://www.microsoft.com/downloads/details.aspx?FamilyID=6430f853-1120-48db-8cc5-f2abdc3ed314&DisplayLang=en

41023 23:31:23 (0) **    - It is also possible that the application implemented its own recovery mechanism.

41024 23:31:23 (0) **      In that case, no action is required.

41025 23:31:23 (0) **      You must verify with the application vendor if the application has this capability (i.e. Microsoft SMS)

41026 23:31:23 (0) **

41027 23:31:23 (0) ** ----------------------------------------------------------------------------------------------------------------------------------

41028 23:31:23 (2) !! WARNING: MOF file(s) not containing the '#PRAGMA AUTORECOVER' statement: ............................................ 150 FILE(S)!

41029 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\APPBACKGROUNDTASK_UNINSTALL.MOF (DELETE)

41030 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DMWMIBRIDGEPROV1_UNINSTALL (1).MOF (DELETE)

41031 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DMWMIBRIDGEPROV1_UNINSTALL.MOF (DELETE)

41032 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DMWMIBRIDGEPROV_UNINSTALL.MOF (DELETE)

41033 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DNSCLIENTPSPROVIDER_UNINSTALL.MOF (DELETE)

41034 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\EMBEDDEDLOCKDOWNWMI_UNINSTALL.MOF (DELETE)

41035 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\ISCSIREM.MOF (DELETE)

41036 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\ISCSIWMIV2_UNINSTALL.MOF (DELETE)

41037 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MISPACE_UNINSTALL.MOF (DELETE)

41038 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETADAPTERCIMTRACEUNINSTALL.MOF (DELETE)

41039 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETADAPTERCIM_UNINSTALL.MOF (DELETE)

41040 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETDACIM_UNINSTALL.MOF (DELETE)

41041 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETEVENTPACKETCAPTURE_UNINSTALL.MOF (DELETE)

41042 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETNCCIM_UNINSTALL.MOF (DELETE)

41043 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETPEERDISTCIM_UNINSTALL.MOF (DELETE)

41044 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETTCPIP_UNINSTALL.MOF (DELETE)

41045 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETTTCIM_UNINSTALL.MOF (DELETE)

41046 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NLMCIM_UNINSTALL.MOF (DELETE)

41047 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\OFFLINEFILESCONFIGURATIONWMIPROVIDER_UNINSTALL.MOF (DELETE)

41048 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\OFFLINEFILESWMIPROVIDER_UNINSTALL.MOF (DELETE)

41049 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\PCSVDEVICE_UNINSTALL.MOF (DELETE)

41050 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\POLPROC.MOF

41051 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\POLPROU.MOF

41052 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\QOSWMITRC_UNINSTALL.MOF (DELETE)

41053 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\QOSWMI_UNINSTALL.MOF (DELETE)

41054 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\STORAGEWMI_PASSTHRU_UNINSTALL.MOF (DELETE)

41055 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\STORAGEWMI_UNINSTALL.MOF (DELETE)

41056 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\VPNCLIENTPSPROVIDER_UNINSTALL.MOF (DELETE)

41057 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WDACWMIPROV_UNINSTALL.MOF (DELETE)

41058 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WFASCIM_UNINSTALL.MOF (DELETE)

41059 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WIN32_ENCRYPTABLEVOLUMEUNINSTALL.MOF (DELETE)

41060 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WINSATUNINSTALL.MOF (DELETE)

41061 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WSMAGENTUNINSTALL.MOF (DELETE)

41062 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WSP_FS_UNINSTALL.MOF (DELETE)

41063 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WSP_HEALTH_UNINSTALL.MOF (DELETE)

41064 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WSP_SR_UNINSTALL.MOF (DELETE)

41065 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WUAPROVIDER_UNINSTALL.MOF (DELETE)

41066 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\TCPIP.MOF (*)

41067 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MMC.MOF (*)

41068 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NCSI.MOF (*)

41069 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NLASVC.MOF (*)

41070 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\TSPKG.MOF (*)

41071 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\SERVICES.MOF (*)

41072 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MOUNTMGR.MOF (*)

41073 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WFS.MOF (*)

41074 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\PRINTFILTERPIPELINESVC.MOF (*)

41075 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IRMON.MOF (*)

41076 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NEWDEV.MOF (*)

41077 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\RESTARTMANAGER.MOF (*)

41078 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WINSAT.MOF (*)

41079 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\FUNDISC.MOF (*)

41080 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\FDWSD.MOF (*)

41081 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\FDSSDP.MOF (*)

41082 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\UMB.MOF (*)

41083 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\UMBUS.MOF (*)

41084 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\UMPASS.MOF (*)

41085 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\SCHANNEL.MOF (*)

41086 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\P2P-MESH.MOF (*)

41087 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\P2P-PNRP.MOF (*)

41088 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IPSECSVC.MOF (*)

41089 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\POLSTORE.MOF (*)

41090 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WINIPSEC.MOF (*)

41091 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\SSTPSVC.MOF (*)

41092 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WININIT.MOF (*)

41093 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\LLTDIO.MOF (*)

41094 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\RSPNDR.MOF (*)

41095 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\LLTDSVC.MOF (*)

41096 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETWORKITEMFACTORY.MOF (*)

41097 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WDIGEST.MOF (*)

41098 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\BCD.MOF (*)

41099 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NTFS.MOF (*)

41100 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\SETUPAPI.MOF (*)

41101 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DIMSJOB.MOF (*)

41102 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WSMAUTO.MOF (*)

41103 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\XWIZARDS.MOF (*)

41104 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IPMIDTRC.MOF (*)

41105 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IPMIPTRC.MOF (*)

41106 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MICROSOFT-WINDOWS-REMOTE-FILESYSTEM.MOF (*)

41107 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WHQLPROV.MOF (*)

41108 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WINLOGON.MOF (*)

41109 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\SDBUS.MOF (*)

41110 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MSISCSI.MOF (*)

41111 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DIMSROAM.MOF (*)

41112 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IMAPIV2-BASE.MOF (*)

41113 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IMAPIV2-FILESYSTEMSUPPORT.MOF (*)

41114 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IMAPIV2-LEGACYSHIM.MOF (*)

41115 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\EAIMEAPI.MOF (*)

41116 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\FILETRACE.MOF (*)

41117 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\FDPHOST.MOF (*)

41118 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\FDWNET.MOF (*)

41119 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\FDRESPUB.MOF (*)

41120 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\PNPXASSOC.MOF (*)

41121 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NSHIPSEC.MOF (*)

41122 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\STORTRACE.MOF (*)

41123 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IRDA.MOF (*)

41124 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MSFEEDSBS.MOF (*)

41125 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\DRVINST.MOF (*)

41126 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\UMPNPMGR.MOF (*)

41127 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\QMGR.MOF (*)

41128 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MBLCTR.MOF (*)

41129 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\FWCFG.MOF (*)

41130 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\AUTHFWCFG.MOF (*)

41131 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\SENSORSCLASSEXTENSION.MOF (*)

41132 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MSFEEDS.MOF (*)

41133 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\SAMSRV.MOF (*)

41134 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\NETPROFM.MOF (*)

41135 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WCNCSVC.MOF (*)

41136 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MPSSVC.MOF (*)

41137 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MPSDRV.MOF (*)

41138 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\FIREWALLAPI.MOF (*)

41139 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WFAPIGP.MOF (*)

41140 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\TSMF.MOF (*)

41141 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\LSASRV.MOF (*)

41142 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WLAN.MOF (*)

41143 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WFP.MOF (*)

41144 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\SCRCONS.MFL (*)

41145 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\SMTPCONS.MFL (*)

41146 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\WBEMCONS.MFL (*)

41147 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\WFS.MFL (*)

41148 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\IRMON.MFL (*)

41149 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\WHQLPROV.MFL (*)

41150 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\MSFEEDSBS.MFL (*)

41151 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\FILETRACE.MFL (*)

41152 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\XWIZARDS.MFL (*)

41153 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\IT-IT\RESTARTMANAGER.MFL (*)

41154 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\WCNCSVC.MFL (*)

41155 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\L2GPSTORE.MFL (*)

41156 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\WINLOGON.MFL (*)

41157 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\MSFEEDS.MFL (*)

41158 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\WININIT.MFL (*)

41159 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\MICROSOFT-WINDOWS-OFFLINEFILES.MFL (*)

41160 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MICROSOFT-WINDOWS-OFFLINEFILES.MOF (*)

41161 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WMP.MOF (*)

41162 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WPD_CI.MOF (*)

41163 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WPDSHEXT.MOF (*)

41164 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WPDSHSERVICEOBJ.MOF (*)

41165 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\OFFLINEFILESWMIPROVIDER_UNINSTALL.MFL (DELETE) (*)

41166 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\IT-IT\OFFLINEFILESCONFIGURATIONWMIPROVIDER_UNINSTALL.MFL (DELETE) (*)

41167 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\MSWMDM.MOF (*)

41168 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WPDSP.MOF (*)

41169 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\PORTABLEDEVICEWIACOMPAT.MOF (*)

41170 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WPDMTP.MOF (*)

41171 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\BTHMTPENUM.MOF (*)

41172 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\PORTABLEDEVICEAPI.MOF (*)

41173 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\PORTABLEDEVICETYPES.MOF (*)

41174 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\PORTABLEDEVICECLASSEXTENSION.MOF (*)

41175 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\PORTABLEDEVICECONNECTAPI.MOF (*)

41176 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WPDBUSENUM.MOF (*)

41177 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WPDFS.MOF (*)

41178 23:31:23 (0) ** - C:\WINDOWS\SYSTEM32\WBEM\WPDCOMP.MOF (*)

41179 23:31:23 (0) ** => MOF file(s) marked with (*) are INCLUDED in the AUTO-RECOVERY LIST even if they do NOT contain the '#PRAGMA AUTORECOVER' statement.

41180 23:31:23 (0) **    If the WMI repository is rebuilt, the listed MOF files not included in the AUTO-RECOVERY LIST and

41181 23:31:23 (0) **    missing the '#PRAGMA AUTORECOVERY' statement when they are compiled the first time will NOT

41182 23:31:23 (0) **    be recompiled during the repository reconstruction.

41183 23:31:23 (0) **    Note: If you want the MOF file to be part of the AUTO-RECOVERY LIST, make sure the statement '#PRAGMA AUTORECOVER'

41184 23:31:23 (0) **          is included and recompile the MOF/MFL with the following command:

41185 23:31:23 (0) **          i.e. 'MOFCOMP.EXE <FileName.MOF>'

41186 23:31:23 (0) **

41187 23:31:23 (0) ** => MOF file(s) marked with (DELETE) contains class and instance DELETE statements.

41188 23:31:23 (0) **    Usually, MOF with DELETE statements are used to UNinstall components and they should NOT be listed in the AUTORECOVERY LIST

41189 23:31:23 (0) **    and therefore they should NOT specify the '#PRAGMA AUTORECOVER' statement.

41190 23:31:23 (0) **    Note: It happens that some MOF files do contain DELETE statements for installation purposes to delete

41191 23:31:23 (0) **          existing information before it is recreated.

41192 23:31:23 (0) **

41193 23:31:23 (0) **    Note: It is also possible that the application implemented its own recovery mechanism.

41194 23:31:23 (0) **          In that case, no action is required. You must verify with the application vendor

41195 23:31:23 (0) **          if the application has this capability (i.e. Microsoft SMS)

41196 23:31:23 (0) **

Do you have any suggestions?



Another 0xC1900101 - 0x4000D The installation failed at the SECOND_BOOT phase with an error during MIGRATE_DATA operation!

Something does look a little strange in your setupact.log, Carl.. The line below is one of many and the log actually ends while going through this process. I picked a few lines at random but it is looking at the all the files. The
(1) may have some significance since the same locations are checked earlier and did not seem to have a problem.

I am not sure what wbem is except possibly related to WMI and some type of management utility. The fact the log shows it cannot find the short path, whatever that means. Perhaps check your system or do a system file check to see if something is showing
up there. (use admin command prompt sfc /scannow)

You might also check your registry for entries regarding this and if you don't know how, just ask. If the registry contains entries pointing to another location, it may be confusing the installer.

MIG Cannot apply recursively object: C:\Windows\SysWOW64\wbem\tmf: Win32Exception: The file exists. [0x00000050] void __cdecl Mig::CUpgradeTransportStreamProxy::CreateFolder(class UnBCL::String *,int,int *,struct ILocalProgres

MIG CPathStringDestFixer::FindDestPath, Unable to get short path for C:\Windows\System32\wbem\cimwin32
(1).mof: Win32Exception: C:\Windows\System32\wbem\cimwin32
(1).mof: The system cannot find the file specified. [0x00000002]

MIG CPathStringDestFixer::FindDestPath, Unable to get short path
for C:\Windows\System32\wbem\interop (1).mof: Win32Exception: C:\Windows\System32\wbem\interop (1).mof: The system cannot find the file specified.

MIG CPathStringDestFixer::FindDestPath, Unable to get short path for C:\Windows\System32\wbem\scrcons
(1).mof: Win32Exception: C:\Windows\System32\wbem\scrcons (1).mof: The system cannot find the file specified.
