Windows 10: Weird Partition Table ,and second OS wont be deleted from UEFI boot entries

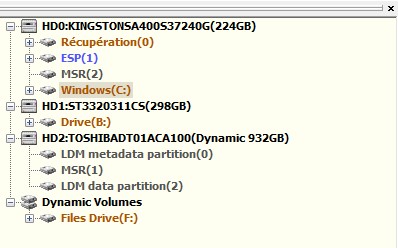

My partition table seems a bit over the place ;can some one please tell me if that's a normal one ,i mean what are the ESP ,MSR ,and LDM partitions for ? and should they be normally present ?



Also i installed an Android x86 fork like 3 years ago ,i followed every possible step to delete it ,everything was deleted succesfully ,but it still persists in the Boot entries list ;no matter which app i tried ,it wouldn't get deleted ,also ,

:)



/boot Partition?

[Solved] /boot Partition?

Ok, I like playing around with multiple operating systems so I tend to have a few installed at a time. My issue is related to the bootloader. Every new Linux OS I install installs its own version of Grub. That's fine until you delete that partition.... *Bang Head :banghead:

I was thinking about creating a small (ie ~50MB) partition that /boot will reside on. This way I can have one copy of Grub that would boot my several OS(s) depending on what they are. I think this is a good idea so I can delete one OS's partition and still be able to boot the other OS(s).

Unfortunately, I am not an expert with bootloaders and I'm not really sure how /boot has to do with booting. Can someone tell me how feasible my idea is? I'm looking for a way to have multiple OS(s) but only one bootloader so when I delete one OS, the bootloader will still be intact.

Any ideas/suggestions/advice is appreciated! *Smile



UEFI remove unwanted boot entries from BIOS solved easily

Hi folks
with UEFI if you've installed say some Linux versions and you don't want them any more you might still see these at boot if you go into your BIOS boot menu.

Easy way to fix these i.e remove them

1) Go into command mode (run as administrator)
2) type bcdedit /enum firmware (space between enum and firmware

3)Now you'll see a list

4) To delete entries you don't want
type bcdedit delete identifier where the identifier is shown in your list. Include the sigiddly braces { }

Easy -- job done

If you are worried about this just simply backup the EFI partition with Macrium - you don't need to back up the rest of the system. If boot fails because you deleted wrong entry simply restore the EFI partition (it's only 100MB or so - takes seconds with macrium and works -- I deliberately hosed up an entry to test this --restored partition and system booted fine).

Cheers
jimbo



How to recover files off a HDD from a deleted partition? help!!!

Thanks for your reply. I used my m8s program and it worked like a dream, recovered all the files and also deleted ones from yrs back, was amazed how well it did. Next step is i will use that Partition Table Doctor to recover the deleted partition. Thanks for the link *Toast :toast:
