Windows 10: Windows 10 1909 Will Not Install on the Hard drive.

I am in the process of installing Windows 10 Pro version 1909 on a number of desktop computers. I've done 4 so far. All good. Today I can't get Windows 10 to install as Install thinks that the boot hard drive does not have BIOS support.


Target Computer:


Dell Precision T3400 - BIOS A14

CPU: Socket 775 Duo Quad Q9650 @ 3.00GHz

RAM: 8 GB

Drive 0: 320 GB SATA Two Partitions: Boot 120GB, DATA1 180GB

Drive 1: 500 GB SATA DATA 2 full drive


Both drives are MBR.


BIOS recognizes both hard drives. Previous installed boot OS was Windows XP SP3 on a different 80GB SATA hard drive that was removed & replaced with the newer 320GB drive. When I boot from a CD to miniXP, all is good in Drive Management.


The 320GB Boot Drive was prepared in a Win10 Pro 1909 computer via an USB - SATA adapter - new partitions made & formatted, then physically installed in the Dell T3400 - my standard practice.

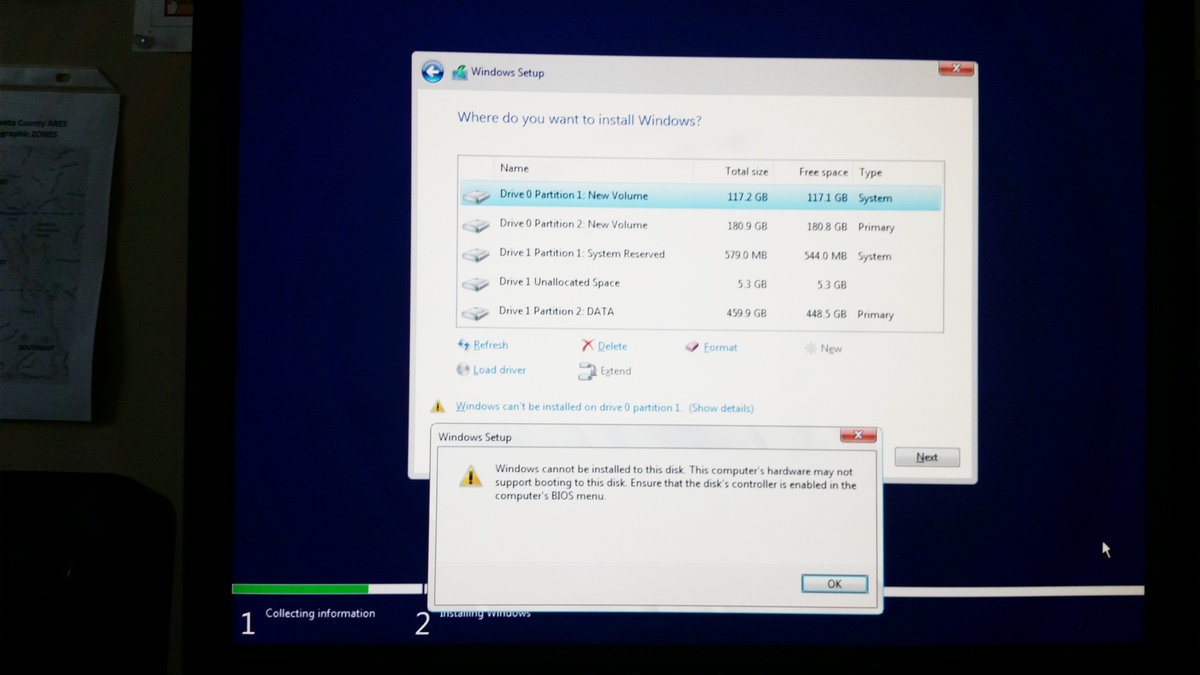

Here's the error I get sorry for the cell phone pic but I don't know of a way to get a screen shot & save it while Install is running:





There is nothing on the boot drive - this is a clean install.


The install DVD was made from Microsoft's Win10 version 1909 64 bit iso file. I have the Win10 2004 iso as well but wanted to keep all the computers of the same version of Win10 before moving to 2004. I have not tried 2004.


I have checked every setting that deals with the hard drive in the BIOS. I've installed three times - Install always stops at the same place. At this point I'm not sure what my next steps should be. Ideas?


BTW: My first version of Windows that I installed was drum roll...... 1.02 way back in 1986ish. Never had an install error like this one.


Thank for you help!

:)



Windows 10 1909 Causes Secondary Hard Drive to not be Recognized

Installing the Windows 10 1909 Update causes my secondary hard drive to not be recognized.

Steps to confirm issue:

• Secondary drive not visible in Windows Explorer
• Secondary drive not visible in device manager
• Secondary drive not visible in disk manager

Steps to replicate issue:

• Installing 1909 update

Steps to resolve issue:

• Uninstall 1909 update

Since updates can only be delayed for so long, an actual fix would be appreciated.



Hard drive/ OS issue

a guy suggested :

• shutdown
• unhooked HDD
• restarted
• yay !!
• reconnected HDD
• restarted
• yay !!

also , try method 3
How do I unlock the drive where Windows 10 is installed?



Is it time for Windows 10 already?

Here's a good step by step guide on doing a fresh install.

How to clean install Windows 10 from a USB drive - Software - Feature - HEXUS.net
