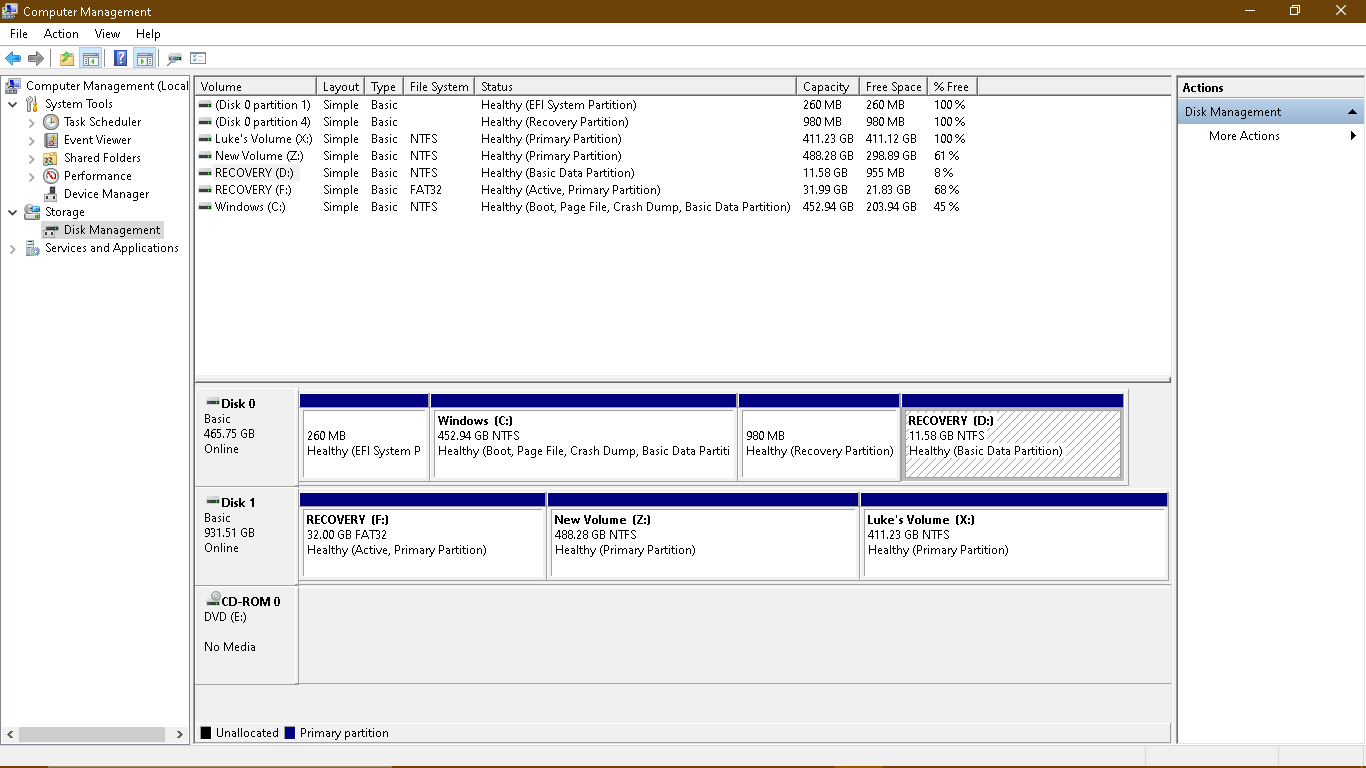

Windows 10: Windows 10 64 bit Disk 0, partitions 1 and 4 are empty and my only active partition...

I reloaded windows 10 twice before HP would tell me their computer couldn't handle the latest update from Windows. But anyway during the setup windows asked me if I wanted to create a recovery drive on my external hard drive that I was repartitioning and I agreed not knowing it was going to move and empty those files from my computer hard drive. Now my CPU is working overtime trying to use external hard drive and I want to move it back.

:)



Move Win7 64 image from a partition NTFS to a new drive

EDIT: After reading your first post again, is there any reason that you would now need GPT? Are you just trying to move the windows install to a new disk or is there a new motherboard involved?

If you are already booting to an NTFS partition, then it makes me wonder if after copying to the new drive, the partition isn't getting marked as Active.

Following the same steps I posted above for startup repair, you can get to a command prompt and use diskpart to see if this is the case.

Code: In the command prompt: diskpart list disk select disk 0 (disk number may be different if you have other disks connected.) list partition select partition 0 (partition number number may vary, but you want to see the boot partition which is the same as your windows partition according to the screenshot on the OP) detail partition (This should have Active: Yes or No. If it says no, since we have the partition selected, you can just use the following command in diskpart) active[/quote]



W7 Hard drive partition issue

to get rid of that 100 meg windows partition that setup creates for you on a new install on a blank hdd:

- press shift+f10 when on the partition management screen in setup <-- this opens a command prompt
- diskpart <-- start the windows command line partition management tool
- list disk <--- list the installed hdds in this computer for the next step
- select disk 0 <- might have to replace 0 with the number of the correct disk
- clean <-- this will erase all data on the disk you selected one step up- dont use the wrong disk!
- create partition primary <- creates a primary partition taking up all space on the drive, adjust the command if necessary
- exit, exit to exit diskpart and the command prompt
- click refresh in partition manager and select your newly created partition and install to that



System Reserved Partition on Disk 1 not Disk 0

The results were the same as before: Windows is installed in a single 477 GB partition on Disk 0 and the System Reserved is in a 500 MB partition on Drive 1. The rest of Drive 1 is unallocated. This is identical to the configuration I had when I asked the
question.

The Media Creation Tool used to created the install ISO DVD is v. 10.0.14393 downloaded on 12/13/2016.

I followed your instructions:

• I selected Drive 0 and deleted the existing Windows partition.
• I clicked New and Apply. Windows then formatted Drive 0 as a single primary partition.
• The existing System Reserved partition was still on Drive 1.
• So I deleted the System Reserved partition on Drive 1 and the just created Primary partition on Drive 0
• I then selected Drive 0 and clicked New and Apply again. Same result a single Primary partition on Drive 0. Drive 1 was left unallocated.
• Upon completion of the install
  • Windows occupies about 15 GB in the only partition on Drive 0
  • The 500 MB System Reserved partition was placed on Drive 1
  • The rest of Drive 1 is unallocated.

How can I get the System Reserved partition to be placed as the Partition 1 on Drive 0 with Windows installed in Partition 2?

Thanks.

Bill
