Windows 10: Windows 10 - Foto App keeps crashing - Windows.UI.Xaml.dll

weltvonalex · Mar 31, 2020

Hello Guys, I have some troubles and I really need your help. In some instances the Foto-App and the Calculator and sometimes all Windows-Store-Apps stop working.
After opening them they close immodestly or in the case of the Foto-App, when I open a picture I get the Error Message "File System Error -2147219196"
Here is all the information I have and what I tried to solve it.

Version:
Windows 10 Pro - 1809, 1709, and 1909
Description:
When you open Foto-App is closes immediately, sometimes it happens to the Calculator App as well and in some seldom cases the whole windows store stops working

Screenshot:
I don’t have a Screenshot but i have a error message in the event viewer.

Calculator
Faulting application name: Calculator.exe, version: 10.1812.1901.4008, time stamp: 0x5c304989
Faulting module name: Windows.UI.Xaml.dll, version: 10.0.18362.356, time stamp: 0x0825b5b0
Exception code: 0xc000027b
Fault offset: 0x0000000000712cf0
Faulting process id: 0x1518
Faulting application start time: 0x01d568dbe3b0f42c
Faulting application path: C:\Program Files\WindowsApps\Microsoft.WindowsCalculator_10.1812.10048.0_x64__8wekyb3d8bbwe\Calculator.exe
Faulting module path: C:\Windows\System32\Windows.UI.Xaml.dll
Report Id: 23d86f95-8eec-407b-b52c-86043d6d0426
Faulting package full name: Microsoft.WindowsCalculator_10.1812.10048.0_x64__8wekyb3d8bbwe
Faulting package-relative application ID: App

Foto-App

Faulting application name: Microsoft.Photos.exe, version: 2019.19011.19410.0, time stamp: 0x5c7d9545
Faulting module name: Windows.UI.Xaml.dll, version: 10.0.17134.376, time stamp: 0x35659a8d
Exception code: 0xc000027b
Fault offset: 0x00000000006a56b2
Faulting process id: 0x1d0c
Faulting application start time: 0x01d4def91242d2b0
Faulting application path: C:\Program Files\WindowsApps\Microsoft.Windows.Photos_2019.19011.19410.0_x64__8wekyb3d8bbwe\Microsoft.Photos.exe
Faulting module path: C:\Windows\System32\Windows.UI.Xaml.dll
Report Id: 844f8b13-bab7-4f73-9571-e1a55c9252a4
Faulting package full name: Microsoft.Windows.Photos_2019.19011.19410.0_x64__8wekyb3d8bbwe
Faulting package-relative application ID: App

After trying some fixes I broke the Windows Apps totally and the messages stopped.
I almost always have the a entries that points to "Faulting module path: C:\Windows\System32\Windows.UI.Xaml.dll"

Steps to reproduce:
I can recreate it every time on different machines.
I login as a Admin
I go to the Users Folder rename the a user folder as example “Alex” to “Alex-old”
Then I delete in the registry the key that corresponds with to the User Profile Alex.
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\ProfileList

Afterwards I login with the Alex and after that the Foto App stops working.
Like I said in some cases the calculator also stops working but not always. The Foto-App stops working every time.

Reproduction rate:
When I do the previous steps its 100%.

System specs:
HP Elitebooks, 840G3,G4,G5, G6 and X360 1030g2-g4. I5-I7, Intel Video. All Drivers are up to date.

Attempted Solutions:
I tried almost everything I found on this issue.
I did as Admin and as a normal User who has no Admin rights.
And I tried on different Clients, because after doing all the steps on the same test client the machine was totally broken. :
- Reset the App - still broken
- Reset the Windows Store - still broken
- Removed the Application from the Add-Remove Software and
- I did the Re-Register via PowerShell
„ Get-appxpackage -packageType bundle % {add-appxpackage -register -disabledevelopmentmode $_.installlocation + "\appxmetadata\appxbundlemanifest.xml"}
$bundlefamilies = get-appxpackage -packagetype Bundle.packagefamilyname
get-appxpackage -packagetype main ? {-not $bundlefamilies -contains $_.packagefamilyname} % {add-appxpackage -register -disabledevelopmentmode $_.installlocation + "\appxmanifest.xml"}””

- wreset.exe - still broken

- I took Ownership of the Folder "Windows App" and made the User a principal but I also checked if the Group Applications Packages is the principal.
Source: https://support.microsoft.com/en-us/help/2798317/microsoft-store-apps-fail-to-start-if-default-registry-or-file-permiss
>> still broken

- I installed all Updates >> still broken
- I installed Photos Media Engine Add-on >> still broken
- I checked KB4524147 >> still broken

- I tried the Powershell Commands described in this Link.
Sorry thats way too much to copy and post it here
https://www.windowsphoneinfo.com/threads/reinstall-and-re-register-apps-in-windows-10.7509/
>> still broken

- Tried to register Windows.UI.Xaml.dll >> still broken
- Changed DPI Settings >> still broken
- Reinstalled the Video Driver >> still broken
- Reinstalled Photo.DCL.MediaEngine >> still broken
- DotNet Reinstall and Update >> still broken
- I tried the Scripts described here
https://superuser.com/questions/1481644/windows-10-uwp-apps-launch-and-then-disappear-immediately
>> still broken

- I was kind a desperate so i tried sfc /scannow >> still broken
- I tried the Dism.exe Tool >> still broken
- I stopped the AntiVirus Scanner >> still broken
- I checked the time settings and time zone >> still broken

What I haven’t done yet:
Using a standard Windows 10 Client with all updates to test the issue

I have no real clue where to look.
I think there is a issues with the access rights but I am not sure, something in the direction of GUID issues.
In a Github comment someone mentioned that windows is very stingy when there are some issues with that.

Or do I miss something when we recreate the profile?
I found a Microsoft article on how to recreate a profile but the steps there do not really apply in our environment but in general its similar to my steps.

And we did the recreation a lot of times without any issue in the past. Maybe MS changed something that’s not that easy anymore?

As you can see I invested some time, i tried a lot but I can’t figure it out how to UN-break it. And i don’t want to reinstall the whole system every time a Application corrupts a profile or someone is marrying and changing his name.

:)

Brink · Mar 31, 2020

XAML Islands v1 - Updates and Roadmap for Windows 10

At Microsoft Build, we announced that the Windows 10 May 2019 Update (version 1903) would include XAML Islands v1.

Below you can find more details on the roadmap and two workstreams in progress to complete the developer experience: the .NET wrappers and Visual Studio 2019 support.

What are XAML Islands?

XAML Islands enable .NET and native Win32 applications to host UWP XAML controls. You can enhance the experience and functionality of your existing desktop applications with the latest UI innovations previously only available for UWP apps. For example, you can use the UWP XAML controls such as ColorPicker, InkCanvas, CalendarView, and NavigationView in your existing C++ Win32, Windows Forms, and WPF applications.

With XAML Islands you can modernize your app at your own pace without having to rewrite your app–just use the UWP XAML controls.

How can I use XAML Islands?

The first component is the UWP XAML hosting API. This is a set of Windows 10 APIs (Windows Runtime classes and COM interfaces) that are shipped within the Windows 10 version 1903. If you have a native C++ Win32 app that is using the Common Controls library (Comctl32.dll) or MFC and you need to modernize your UI, use these APIs.

The second component consists of the .NET wrapped controls and the host controls. Those are a set of UWP XAML hosting API wrappers in the Windows Community Toolkit for both Windows Forms and WPF developers.

What are the requirements for using XAML Islands in my application?

Windows 10 version 1903 and above: Regardless you have a native Win32 app or a .NET app, this first version of XAML Islands only works on apps running in the Windows 10 version 1903 and above.

Windows 10 SDK version 1903 (10.0.18362): This SDK provides the headers, libraries, metadata, and tools for building Windows 10 apps with XAML Islands.

Packaged desktop app: Desktop apps can be packaged into a MSIX to access certain Windows 10 APIs like live tiles and notifications. To package your desktop app you should use the Windows Application Packaging Project. Packaging your app doesn’t mean that your desktop app will run in the UWP reduced-privileged sandbox. Instead, your packaged Win32 app will run in a full-trust process. Packaged apps with XAML Islands will have a streamlined developer experience with Visual Studio 2019.

Note: Unpackaged apps will have a limited support in this release, but some scenarios will be possible.

Visual Studio 2019: Only Visual Studio 2019 will have the toolchain necessary for building desktop apps with XAML Islands.

.NET Core 3.0: This environment is fully supported for .NET apps. Some scenarios will also work in apps that target the .NET Framework 4.7.2, but there are some limitations for these apps, for example consuming managed 3rd party controls.

What versions of .NET Core and .NET Framework can I target with XAML Islands?

The .NET wrapped controls are supported in .NET Framework and .NET Core 3. The .NET host control (WindowsXamlHost) is available for Windows Forms and WPF. This control allows you to host UWP XAML content. If the UWP XAML content is a control that ships with the Windows 10 platform such as ColorPicker or NavigationView, you can target the .NET Framework 4.7.2 or NET Core 3.

If the UWP XAML content is a UWP user control that is implemented in a 3rd party WinRT component, the version of .NET you can target depends on how the user control was developed. A user control is considered a 3rd party WinRT component if it is defined in one of these ways: in a separate UWP project, in a Nuget Package, or via a link to file.

If the 3rd party WinRT component is native (written in C++/WinRT), the user control can be consumed by both .NET Framework 4.7.2 and the NET Core 3.

If the 3rd party WinRT component is managed (for example, written in C#), the user control can be consumed only by .NET Core 3. The full .NET Framework is not fully supported in this scenario, and it requires some cross compilation to work at all.

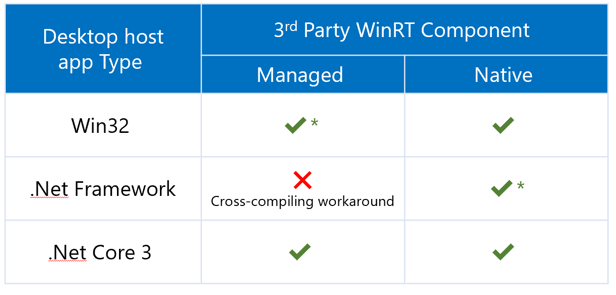

This is the matrix of platform support for XAML Islands v1:

If your app targets .NET Core 3, regardless of whether the 3rd party WinRT component you are hosting is native or managed, you will get a streamlined developer experience. If your app targets the full .NET Framework, you will get a streamlined developer experience only if your 3rd party WinRT component is native.

How can I use XAML Islands in my native C++ Win32 app?

If you’re a C++ developer, you need to use the UWP XAML hosting APIs. These are some basic steps:

First initializes the UWP XAML framework in the current thread (you can use the static InitializeForCurrentThread method of the WindowsXamlManager class).

Create a DesktopWindowXamlSource object that requires the HWND of your app. The DesktopWindowXamlSource will create a ChildWindow where you can place the XAML content.

You need to take care of the keyboard focus when users navigate into and out of the XAML Islands. This DesktopWindowXamlSource object exposes event for routing keyboard focus navigation.

You can find more details at: https://docs.microsoft.com/en-us/win...ml-hosting-api

How can I use XAML Islands in my .NET App?

The Windows Community Toolkit version 6.0.0 (in preview right now) provides several NuGet packages for Windows Forms and WPF that you can add to your project.

The WindowXamlHost control is a host control in which you can host all kinds of UWP XAML content.

The wrapped controls wrap most of the events and properties of a small set of specific UWP controls into WPF and Windows Forms controls. These wrapped controls are designed to be used as regular Windows Forms and WPF controls so you don’t need to understand UWP concepts. Currently we provide these wrapped controls:

InkCanvas wraps the UWP InkCanvas and InkToolbar and provides a surface and toolbars for Ink-based user interaction.

MediaPlayerElement enables your .NET apps to use modern audio and video codecs and provide better performance for streaming and rendering media content.

MapControl enables you to use the latest innovations from the mapping platform in your apps, such as more photorealistic maps.

SwapChainPanel (preview) enables you to add DirectX 12 content in your app.

What modern web view controls are available to desktop applications?

Windows Forms and WPF apps use the WebBrowser control, which uses the Internet Explorer rendering engine and therefore lacks support for HTML5 and other features. The Windows Community Toolkit contains a Windows Forms and WPF wrapper for the UWP WebView control that uses Edge as the rendering engine, so these apps can host web content that requires HTML5.

The Windows Community Toolkit also contains the WebViewCompatible control. This control uses either the WebBrowser or the WebView rendering engine, depending on the version of Windows the app is running on:

Apps running on Windows 10, version 1803 and later will use the current WebView rendering engine.

Apps running on earlier versions of Windows, like Windows 8.1, will use the older WebBrowser rendering engine.

Are the XAML Islands using a different thread?

No. XAML Islands run on the same UI thread of your desktop app. You can access all the UWP XAML objects from your code behind without doing any marshalling. This is different from Windows Forms and WPF hosted technologies.

Any samples?

XAML Islands Lab is a comprehensive lab that provides step-by-step instructions for using the wrapped controls and host controls in the Windows Community Toolkit to add UWP controls to an existing WPF line-of-business application. This lab includes the complete code for the WPF application as well as detailed instructions for each step in the process.

This C++ Win32 Sample demonstrates a complete implementation of hosting a UWP user control in an unpackaged C++ Win32 application (that is, an application that is not built into an MSIX package).

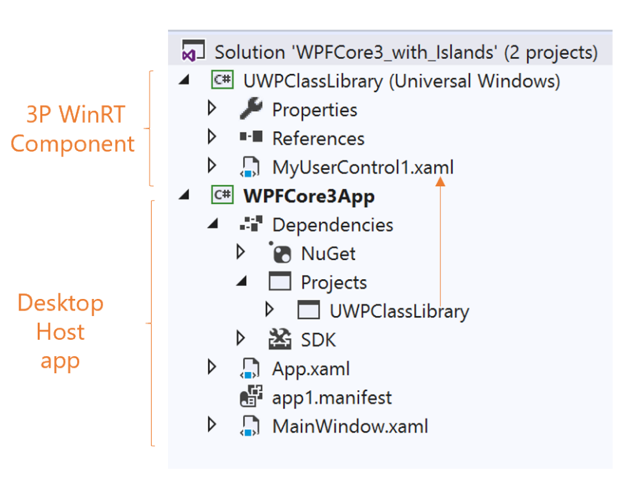

For a WPF .NET Core 3 app that consumes a UWP project within a User Control you can use this one:

https://github.com/marb2000/XamlIsla...th_UserControl

The Windows community Toolkit contains demos to validate the wrapped control and the host control.

https://github.com/windows-toolkit/M....Toolkit.Win32

What is your roadmap for XAML Islands v1?

1. Windows 10 May 2019 update contains the first release of XAML Islands (v1).
2. The Windows Community Toolkit, v6.0, will contain the WindowsXamlHost and wrapped controls for the .NET Framework.

This is planned for this Summer of 2019.

There will be a preview of v6.1 that will contain the .NET Core 3 version of the WindowsXamlHost and the wrapped controls. This update will be released to align with the .NET Core 3 release – the second half of 2019.

3. Visual Studio 2019 will get an update in the second half of 2019, aligned with the release of .NET Core 3 that will support XAML Islands v1. Remember that only packaged apps will get a streamlined developer experience.

What is your roadmap for XAML Islands v2?

XAML Islands v2 is intended to ship as a part of WinUI 3.0. Therefore, v2 will support the same Windows 10 versions as WinUI 3.0. We are planning to release v3 major release of WinUI during the first half of 2020. WinUI is an open source project, and you can follow the latest roadmap and news at: https://github.com/microsoft/microso...ocs/roadmap.md

What are the best ways for me to give you feedback about XAML Islands?

The main channel is our GitHub place: microsoft/microsoft-ui-xaml

You can also email us to XAML Islands L: [email protected]

You can tweet us at @windowsui

If you have issues with the .NET wrappers you can also reach us at https://github.com/windows-toolkit/M....Toolkit.Win32

Click to expand...

Source: https://blogs.windows.com/buildingap...s-and-roadmap/

Brink · Mar 31, 2020

XAML Islands v1 - Updates and Roadmap for Windows 10

At Microsoft Build, we announced that the Windows 10 May 2019 Update (version 1903) would include XAML Islands v1.

Below you can find more details on the roadmap and two workstreams in progress to complete the developer experience: the .NET wrappers and Visual Studio 2019 support.

What are XAML Islands?

XAML Islands enable .NET and native Win32 applications to host UWP XAML controls. You can enhance the experience and functionality of your existing desktop applications with the latest UI innovations previously only available for UWP apps. For example, you can use the UWP XAML controls such as ColorPicker, InkCanvas, CalendarView, and NavigationView in your existing C++ Win32, Windows Forms, and WPF applications.

With XAML Islands you can modernize your app at your own pace without having to rewrite your app–just use the UWP XAML controls.

How can I use XAML Islands?

The first component is the UWP XAML hosting API. This is a set of Windows 10 APIs (Windows Runtime classes and COM interfaces) that are shipped within the Windows 10 version 1903. If you have a native C++ Win32 app that is using the Common Controls library (Comctl32.dll) or MFC and you need to modernize your UI, use these APIs.

The second component consists of the .NET wrapped controls and the host controls. Those are a set of UWP XAML hosting API wrappers in the Windows Community Toolkit for both Windows Forms and WPF developers.

What are the requirements for using XAML Islands in my application?

Windows 10 version 1903 and above: Regardless you have a native Win32 app or a .NET app, this first version of XAML Islands only works on apps running in the Windows 10 version 1903 and above.

Windows 10 SDK version 1903 (10.0.18362): This SDK provides the headers, libraries, metadata, and tools for building Windows 10 apps with XAML Islands.

Packaged desktop app: Desktop apps can be packaged into a MSIX to access certain Windows 10 APIs like live tiles and notifications. To package your desktop app you should use the Windows Application Packaging Project. Packaging your app doesn’t mean that your desktop app will run in the UWP reduced-privileged sandbox. Instead, your packaged Win32 app will run in a full-trust process. Packaged apps with XAML Islands will have a streamlined developer experience with Visual Studio 2019.

Note: Unpackaged apps will have a limited support in this release, but some scenarios will be possible.

Visual Studio 2019: Only Visual Studio 2019 will have the toolchain necessary for building desktop apps with XAML Islands.

.NET Core 3.0: This environment is fully supported for .NET apps. Some scenarios will also work in apps that target the .NET Framework 4.7.2, but there are some limitations for these apps, for example consuming managed 3rd party controls.

What versions of .NET Core and .NET Framework can I target with XAML Islands?

The .NET wrapped controls are supported in .NET Framework and .NET Core 3. The .NET host control (WindowsXamlHost) is available for Windows Forms and WPF. This control allows you to host UWP XAML content. If the UWP XAML content is a control that ships with the Windows 10 platform such as ColorPicker or NavigationView, you can target the .NET Framework 4.7.2 or NET Core 3.

If the UWP XAML content is a UWP user control that is implemented in a 3rd party WinRT component, the version of .NET you can target depends on how the user control was developed. A user control is considered a 3rd party WinRT component if it is defined in one of these ways: in a separate UWP project, in a Nuget Package, or via a link to file.

If the 3rd party WinRT component is native (written in C++/WinRT), the user control can be consumed by both .NET Framework 4.7.2 and the NET Core 3.

If the 3rd party WinRT component is managed (for example, written in C#), the user control can be consumed only by .NET Core 3. The full .NET Framework is not fully supported in this scenario, and it requires some cross compilation to work at all.

This is the matrix of platform support for XAML Islands v1:

If your app targets .NET Core 3, regardless of whether the 3rd party WinRT component you are hosting is native or managed, you will get a streamlined developer experience. If your app targets the full .NET Framework, you will get a streamlined developer experience only if your 3rd party WinRT component is native.

How can I use XAML Islands in my native C++ Win32 app?

If you’re a C++ developer, you need to use the UWP XAML hosting APIs. These are some basic steps:

First initializes the UWP XAML framework in the current thread (you can use the static InitializeForCurrentThread method of the WindowsXamlManager class).

Create a DesktopWindowXamlSource object that requires the HWND of your app. The DesktopWindowXamlSource will create a ChildWindow where you can place the XAML content.

You need to take care of the keyboard focus when users navigate into and out of the XAML Islands. This DesktopWindowXamlSource object exposes event for routing keyboard focus navigation.

You can find more details at: https://docs.microsoft.com/en-us/win...ml-hosting-api

How can I use XAML Islands in my .NET App?

The Windows Community Toolkit version 6.0.0 (in preview right now) provides several NuGet packages for Windows Forms and WPF that you can add to your project.

The WindowXamlHost control is a host control in which you can host all kinds of UWP XAML content.

The wrapped controls wrap most of the events and properties of a small set of specific UWP controls into WPF and Windows Forms controls. These wrapped controls are designed to be used as regular Windows Forms and WPF controls so you don’t need to understand UWP concepts. Currently we provide these wrapped controls:

InkCanvas wraps the UWP InkCanvas and InkToolbar and provides a surface and toolbars for Ink-based user interaction.

MediaPlayerElement enables your .NET apps to use modern audio and video codecs and provide better performance for streaming and rendering media content.

MapControl enables you to use the latest innovations from the mapping platform in your apps, such as more photorealistic maps.

SwapChainPanel (preview) enables you to add DirectX 12 content in your app.

What modern web view controls are available to desktop applications?

Windows Forms and WPF apps use the WebBrowser control, which uses the Internet Explorer rendering engine and therefore lacks support for HTML5 and other features. The Windows Community Toolkit contains a Windows Forms and WPF wrapper for the UWP WebView control that uses Edge as the rendering engine, so these apps can host web content that requires HTML5.

The Windows Community Toolkit also contains the WebViewCompatible control. This control uses either the WebBrowser or the WebView rendering engine, depending on the version of Windows the app is running on:

Apps running on Windows 10, version 1803 and later will use the current WebView rendering engine.

Apps running on earlier versions of Windows, like Windows 8.1, will use the older WebBrowser rendering engine.

Are the XAML Islands using a different thread?

No. XAML Islands run on the same UI thread of your desktop app. You can access all the UWP XAML objects from your code behind without doing any marshalling. This is different from Windows Forms and WPF hosted technologies.

Any samples?

XAML Islands Lab is a comprehensive lab that provides step-by-step instructions for using the wrapped controls and host controls in the Windows Community Toolkit to add UWP controls to an existing WPF line-of-business application. This lab includes the complete code for the WPF application as well as detailed instructions for each step in the process.

This C++ Win32 Sample demonstrates a complete implementation of hosting a UWP user control in an unpackaged C++ Win32 application (that is, an application that is not built into an MSIX package).

For a WPF .NET Core 3 app that consumes a UWP project within a User Control you can use this one:

https://github.com/marb2000/XamlIsla...th_UserControl

The Windows community Toolkit contains demos to validate the wrapped control and the host control.

https://github.com/windows-toolkit/M....Toolkit.Win32

What is your roadmap for XAML Islands v1?

1. Windows 10 May 2019 update contains the first release of XAML Islands (v1).
2. The Windows Community Toolkit, v6.0, will contain the WindowsXamlHost and wrapped controls for the .NET Framework.

This is planned for this Summer of 2019.

There will be a preview of v6.1 that will contain the .NET Core 3 version of the WindowsXamlHost and the wrapped controls. This update will be released to align with the .NET Core 3 release – the second half of 2019.

3. Visual Studio 2019 will get an update in the second half of 2019, aligned with the release of .NET Core 3 that will support XAML Islands v1. Remember that only packaged apps will get a streamlined developer experience.

What is your roadmap for XAML Islands v2?

XAML Islands v2 is intended to ship as a part of WinUI 3.0. Therefore, v2 will support the same Windows 10 versions as WinUI 3.0. We are planning to release v3 major release of WinUI during the first half of 2020. WinUI is an open source project, and you can follow the latest roadmap and news at: https://github.com/microsoft/microso...ocs/roadmap.md

What are the best ways for me to give you feedback about XAML Islands?

The main channel is our GitHub place: microsoft/microsoft-ui-xaml

You can also email us to XAML Islands L: [email protected]

You can tweet us at @windowsui

If you have issues with the .NET wrappers you can also reach us at https://github.com/windows-toolkit/M....Toolkit.Win32

Click to expand...

Source: https://blogs.windows.com/buildingap...s-and-roadmap/

Ahhzz · Mar 31, 2020

Windows 10 Tweaks

Pressing “Windows+Pause Break” (it’s up there next to scroll lock) opens the “System” Window.

Windows 10: In the new version of Windows, Explorer has a section called Quick Access. This includes your frequent folders and recent files. Explorer defaults to opening this page when you open a new window. If you’d rather open the usual This PC, with links to your drives and library folders, follow these steps:

Open a new Explorer window.

Click View in the ribbon.

Click Options.

Under General, next to “Open File Explorer to:” choose “This PC.”

Click OK

credit to Lifehacker.

Windows 10: Windows 10 - Foto App keeps crashing - Windows.UI.Xaml.dll

Windows 10 - Foto App keeps crashing - Windows.UI.Xaml.dll

Windows 10 - Foto App keeps crashing - Windows.UI.Xaml.dll

Windows 10 - Foto App keeps crashing - Windows.UI.Xaml.dll

Windows 10 - Foto App keeps crashing - Windows.UI.Xaml.dll - Similar Threads - Foto App keeps

App Foto

WINDOWS 10 APP FOTO

WINDOWS 10 APP FOTO

WINDOWS 10 APP FOTO

Windows 10 Foto App

APP FOTO WINDOWS 10

My Foto App crashes

Windows 10 Foto App

Foto App

Users found this page by searching for:

Windows 10 app crash windows.ui.xaml.dll

windows Ui.Xaml.dll photo
