Windows 10: Windows 10 on Z270 Asus TUF Mark 1 Asus or Intel Drivers

I have an Asus z270 Tuf Mark 1. I installed windows 10 on it and forgot not to allow Windows to install its drivers. That isn't a concern due to how I need to get rid of them. The problem I am having is figuring out just whose drivers to use.1 Intel, Asus, Microsoft, Realtek, Asmedia and so on. - As mentioned Microsoft installed its own drivers for my system my mistake. However once I get rid of them to install the actual company or mobo maker drivers, I still can't decide on whose drivers to use.Intel for the chipset, MEI, IRST, Graphics - Asus has drivers but like any product, the company

:)



Asus USB drivers

Hi All,
I just bought a USB 3.0 stick and noticed the transfer rate is not holding at it's peak. It goes up and down from 2-24.9MB. I tested a few of my 2.0 USB sticks and they seem to hold at their top rate or close to it. Not sure if it's the stick or the drivers. Maybe this is normal for some USB sticks. Hoping to get some answers here.
My motherboard;
ASUS Z270 TUF Mark 1
Win 10 1809
In device Manager under "Universal Serial Bus controllers are the following;
ASMedia USB Root Hub
ASMedia USB3.1 eXtensible Host Controller
Intel(R) USB 3.0 eXtensible Host Controller - 1.0 (Microsoft)
USB Composite Device
USB Composite Device
USB Mass Storage Device
USB Root Hub (USB 3.0)

Does it make any difference if the drivers are Microsoft or Asus drivers? Would it make any difference to the performance for stability of the transfer rate?
If the ASUS USB drivers are better for my MB, where can I download those driver separately from the other ASUS drivers that are on the ASUS Support site. I can't seem to find them. Not sure if they are inside other utility drivers on the ASUS site.
Greatly appreciate any replies



ASUS TUF Z270 MARK 1 Motherboard Detailed - Armored and Tough

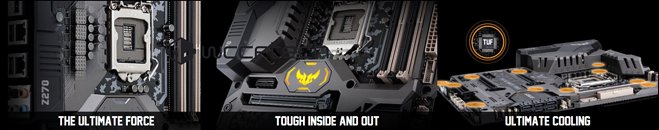

Moving on from the Strix series, ASUS' TUF Z270 Mark 1 has also been detailed. Designed around so-called military standards purported to ensure longer stability and extreme durability, the new TUF Z270 motherboards incorporates features such as Tough Inside, Thermal Armor, TUF Networking, TUF Audio, Ultimate Cooling, 24/7 Durability and high speed transfer. This motherboard is one of ASUS' most premium and feature-packed products, so you should expect to pay a pretty, pretty penny for it, if history - and pricing history in particular - is anything to go by (and it usually is).

The LGA 1151 socket supports the latest 6th and 7th generation Intel Core processors, with the MARK 1 sporting an aggressive heatsink design that features ASUS' AURA RGB technology and a full cover TUF Thermal Armor and Fortifier shield. The chassis of the board houses a 40mm fan that offers significant cooling performance to the VRMs.











The board comes with an 8+2+2 Phase Digital power design that features 10K black metallic capacitors, MicroFine Alloy Chokes, NexFET PW (Power) block MOSFET and DIGI+ Power Control Utility for real-time adjustment. All of these components are part of the new ASUS Extreme Engine Digi+ technology that improves CPU stability and overclocking. Power is fed through a single 8-Pin connector.







The motherboard features four DDR4 DIMM slots that can support up to 64 GB of memory with speeds of up to 3866 MHZ (O.C+). Expansion slots on the motherboard include three PCIe 3.0 x16 (x16/x8/x4 electrical), three PCIe 3.0 x1 and dual M.2 slots that deliver up to 32 GB/s transfer speeds. The board comes with armored expansion slots which means that they are shielded by a metallic cover that fortifies the slot with extra strength and durability.

Storage options include six SATA III 6 GB/s ports. There's also USB 3.0 and USB 2.0 front headers. For audio, the motherboard comes with the latest SupremeFX S1220A CODEC that comes with a new ALC S1220 CODEC, De-pop Circuit, Premium Nichicon audiophile grade capacitors and a stainless steel cover.

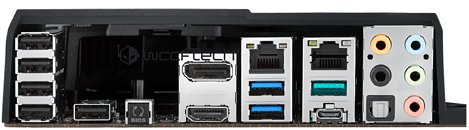

On the I/O front, we are looking at 2 USB 3.1 (Type-A, Type-C) ports, 2 USB 3.0, 4 USB 2.0, Dual Intel I219-V Gigabit LAN, HDMI 1.4, DP 1.2, BIOS Flashback Switch, TUF detective 2 port, and a 7.1 Channel Audio Jack.





Source: WCCFTech



ASUS Announces the TUF Sabertooth Z170 Mark 1 Motherboard

ASUS today announced TUF Sabertooth Z170 Mark 1, an enduringly-tough new ATX motherboard with many exclusive TUF features, including trailblazing TUF Thermal Armor and TUF Fortifier technologies, TUF ICe, TUF Thermal Radar 2 and TUF Detective 2 for ultimate cooling, strength and easy monitoring and control.

The new Intel Z170 Express-based motherboard for 6th-generation Intel Core processors also boasts bang-up-to-date connectivity with both USB 3.1 Gen 2 Type-A and reversible Type-C on board, and delivers 24/7 durability with military-grade TUF Components, upgraded TUF ESD Guards 2 to fend off electrostatic discharge and a five-year warranty for complete peace of mind.











Designed tough, built to last: Thermal Armor, TUF Fortifier and Dust Defenders
TUF Sabertooth Z170 Mark 1 heralds a completely new design language for the ASUS TUF motherboard line, with the sleek, stealthy Thermal Armor reimagined in black and gunmetal grey. Thermal Armor employs dual fans to provide maximum airflow and rapid cooling board-wide, reducing temperatures in the area around the voltage-regulator module (VRM) by up to 20°C. It even includes a new interior shunt design to boost air cooling to the M.2 slot. The innovative design beneath the armor strengthens the PCI Express (PCIe) slots to minimize the risk of damage.

TUF Sabertooth Z170 Mark 1 also has TUF Fortifier to improve rigidity and endure heavy loads. The reinforced backplate ensures that the motherboard doesn't buckle under the weight of heavy graphics cards and CPU coolers, minimizing the risk of damaged circuitry from bowing and bending up to weights of 10kg. TUF Fortifier even reduces internal temperatures by up to 13°C - an 18% improvement on the previous design.

TUF Dust Defenders protect Sabertooth Z170 Mark 1's rear input/output (I/O) ports, expansion and memory slots, preventing dust and other airborne particles from entering these critical connectors.

As part of its outstanding new design, Sabertooth Z170 Mark 1 even has a detachable metal badge bearing the iconic TUF emblem to use as a unique TUF key chain or necklace, and Q-LED illumination to give users the power to see and act on the alerts, with a clear indication of the available actions.

Total cooling solution: TUF ICe, Thermal Radar 2 and TUF Detective 2
TUF Sabertooth Z170 Mark 1 combines three thermal-management technologies to ensure the ultimate cooling for any build - TUF ICe, TUF Thermal Radar 2 and TUF Detective 2.

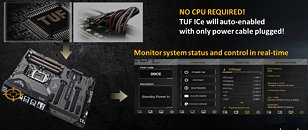

TUF ICe is a dedicated onboard processor that monitors onboard temperature sensors and fan speeds for ultra-accurate cooling.

TUF Thermal Radar 2 offers 12 fan connectors. The multiple onboard sensors and the bundled thermistor cable hand users the power to monitor graphics-card temperatures and other key components in real time, as well as the ability to adjust manually or optimize cooling automatically with one click.

The free TUF Detective 2 companion app has been upgraded, putting detailed system information and a user-friendly interface one a smartphone or tablet display - right at users' fingertips. With TUF Detective 2, users are able to have fan control and monitor system information wirelessly, while key parameters can be monitored and errors detected and diagnosed errors with a cable connection.

24/7 durability, latest connectivity: TUF Components, ESD Guards 2, 5-year warranty and USB 3.1
TUF Sabertooth Z170 Mark 1 is engineered with TUF Components so it's tough enough for the most demanding conditions, even under heavy loading. Japanese-made 10K black metallic capacitors offer 20%-better temperature endurance for a lifespan that's up to ten times (10X) longer, and TUF alloy chokes are manufactured using high-grade anti-oxidization materials to provide heat dissipation that's 13% better than before for unbeatable durability.

It's also constructed with upgraded TUF ESD Guards 2 to defend numerous ports against sudden electrostatic discharge. Engineered to be two times (2X) stronger than before, TUF ESD Guards 2 covers all USB sockets and audio connectors - and exclusive pin-level testing on specific rear I/O connectors is 30% higher than the previous TUF standard.

Every TUF motherboard undergoes the industry's most-punishing tests to ensure they're ready for permanent duty in all scenarios. In our development labs we heat them, chill them, bend them, shock them and drop them - so TUF Sabertooth Z170 Mark 1 is certified for 24/7 durability, and backed by a five-year warranty.

SPECIFICATIONS
ASUS TUF Sabertooth Z170 Mark 1

• Processor/CPU socket
  LGA1151 socket for 6th-generation Intel Core i7 / i5 / i3 / Pentium/ Celeron processors
• Chipset
  Intel Z170 Express
• Memory
  4 x DIMMs, up to a maximum of 64 GB DDR4 2400/2133 MHz
• Expansion slots
  2 x PCI Express 3.0/2.0 x16 (at x16 or x8/x8)
  1 x PCI Express 3.0/2.0 x16
  3 x PCI Express 3.0/2.0 x1
• Graphics (VGA)
  Integrated Intel HD Graphics processor
  DisplayPort 1.2 with maximum resolution of 4096 x 2160 (4K x 2K) at 24Hz and 3840 x 2160 at 60Hz
  HDMI with maximum resolution of 4096 x 2160 (4K x 2K) at 24Hz / 2560 x 1600 at 60Hz
  Intel InTru 3D / Quick Sync Video / Clear Video HD Technology / Insider
• Multi-GPU support
  Quad-GPU NVIDIA SLI and quad-GPU AMD CrossFireX
• Audio
  Realtek ALC1150 eight-channel high-definition audio codec
• Storage
  2 x SATA Express (10Gbit/s)
  6 x SATA (6Gbit/s, four from SATA Express)
• Networking/LAN
  Intel I218-V Gigabit Ethernet
• USB
  1 x USB 3.1/3.0/2.0 Gen 2 Type-C port
  1 x USB 3.1/3.0/2.0 Gen 2 Type-A port
  6 x USB 3.0/2.0 ports
  8 x USB 2.0/1.1 ports
• ASUS TUF-exclusive features
  Thermal Armor with Flow Valve, Thermal Radar 2, TUF ICe, TUF Fortifier, TUF Engine power design, TUF Components, ASUS Digi+ power-control utility, TUF ESD Guards 2,TUF Detective 2, Dust Defenders, MemOK!
• Dimensions / form factor
  ATX 12-inch x 9.6-inch (30.5cm x 24.4cm)
