Windows 10: Windows 10 only can receive left channel from analog audio interface device digital output...

Hello,I recently noticed that a device I have to transcode audio sound from my turntable to record vinyl only recording the left channel and splitting it into two channels like it's stereo, but it's not. I have two devices that can transcode analog sound into WAVE or MPG3, one from ION and another from Behringer U-Control UCA222 which I brought recently. One day while transcoding a Beatles album, I clearly noticed that only the left channel was coming through and my Audacity software was splitting the channel like it was in stereo. I thought it was my ION device, so I purchased another brand

:)



Unlocked Realtek HD Audio Drivers for Windows 10 (Dolby Digital Live/DTS Interactive)

windows 10 build 16184 fixed yeahhhhhhhhh
""

• Some audio drivers have an “encoding Audio Processing Object” feature; this is commonly known as “Dolby Digital Live” or “DTS Connect”. This takes the output of the Windows audio engine mix, encodes it (as Dolby Digital, DTS, or some other format) and sends it out over a S/PDIF optical link for decoding by an external audio receiver. An issue was introduced which resulted in this feature no longer working, which is now fixed.
• "



Using both hdmi and analog output as the same "device"

Windows won't natively split surround sound across multiple devices. However, I was able to get this setup working, which may be possible on your system, depending on your sound drivers.

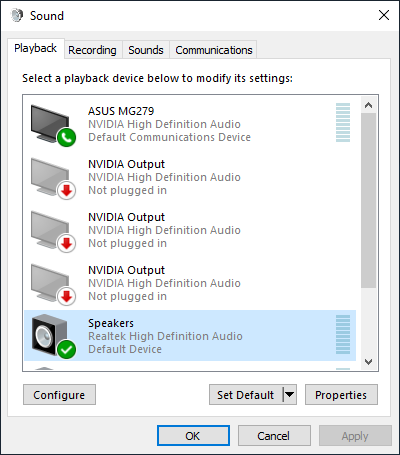

1. Set your internal sound card as the default playback device in Control Panel->Sound->Playback.

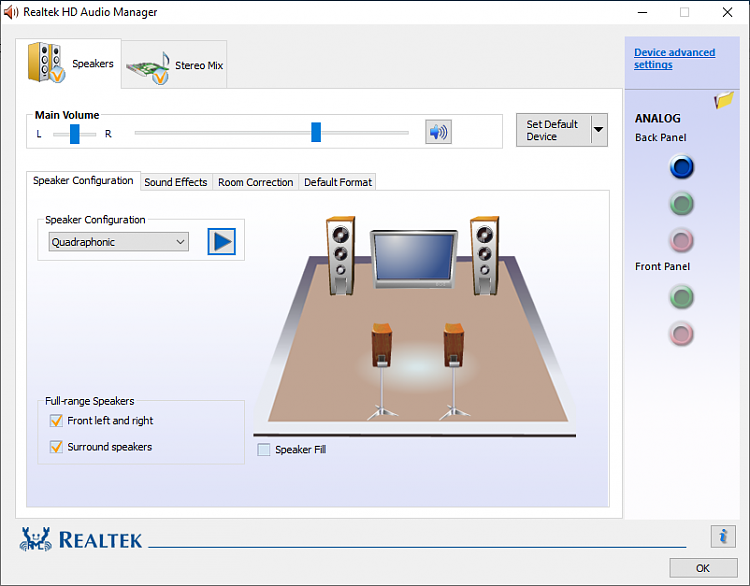

2. Enable 4 channel audio in your sound card config. Plug in your speakers to the side channel jack on your PC.

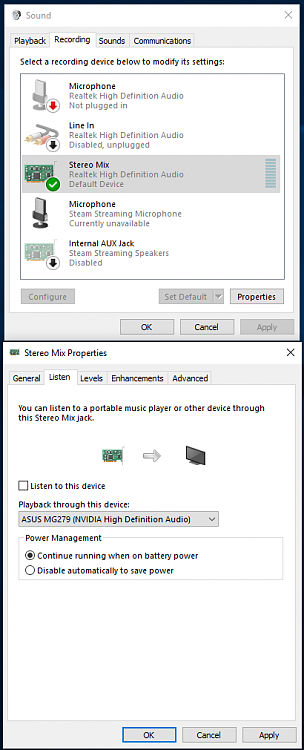

3. Enable Stereo Mix in Control Panel->Sound->Recording. Set the Stereo Mix->Listen->Playback through this device to your monitor.

This will make your sound card process all 4 channels but nothing is plugged into the front speaker jack. The Stereo Mix device will loop the front channel audio back to your monitor.



How to separate audio outputs in playback devices

That is what i did when I reinstalled the drivers. First it only had the speakers, added drivers, HDMI appeared, plugged in second analog port which is detected in realtek HD audio manager but is not listed as a second output. All three devices are dectected, but the two analog devices don't appear as separate output devices.
