Windows 10: Windows 10 partitions

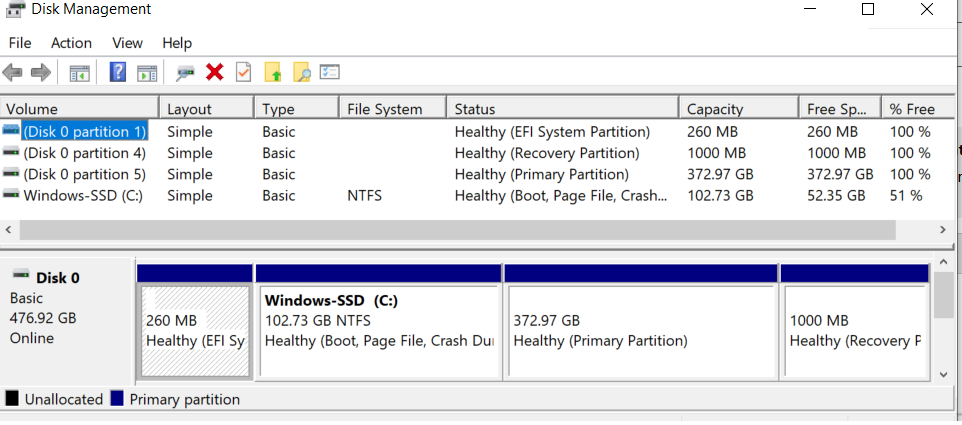

I have Windows 10 and Linux installed. The Linux partition5 is shown correctly in Disk Management, see below.

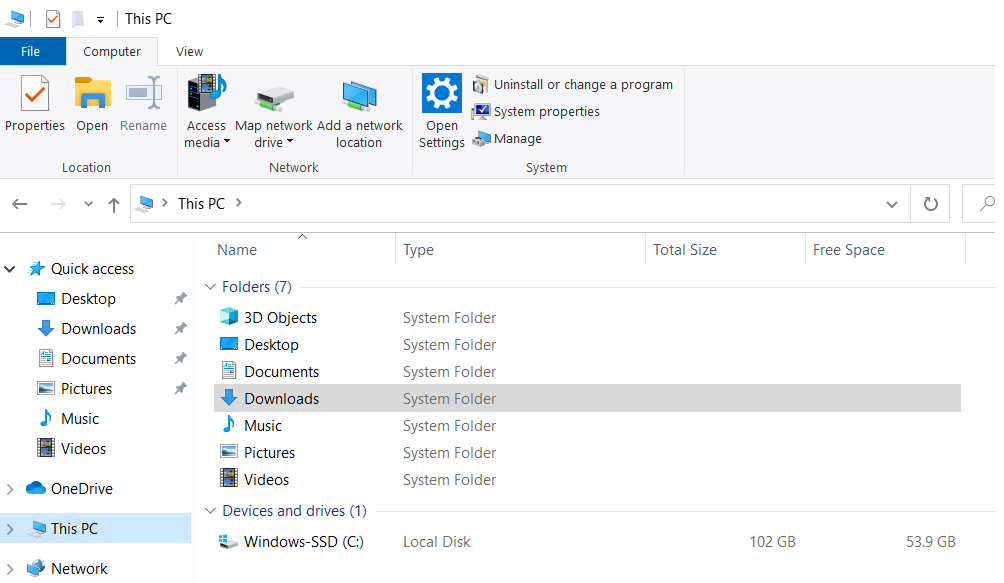

File Manager shows just the Windows partition, which is what I would expect.

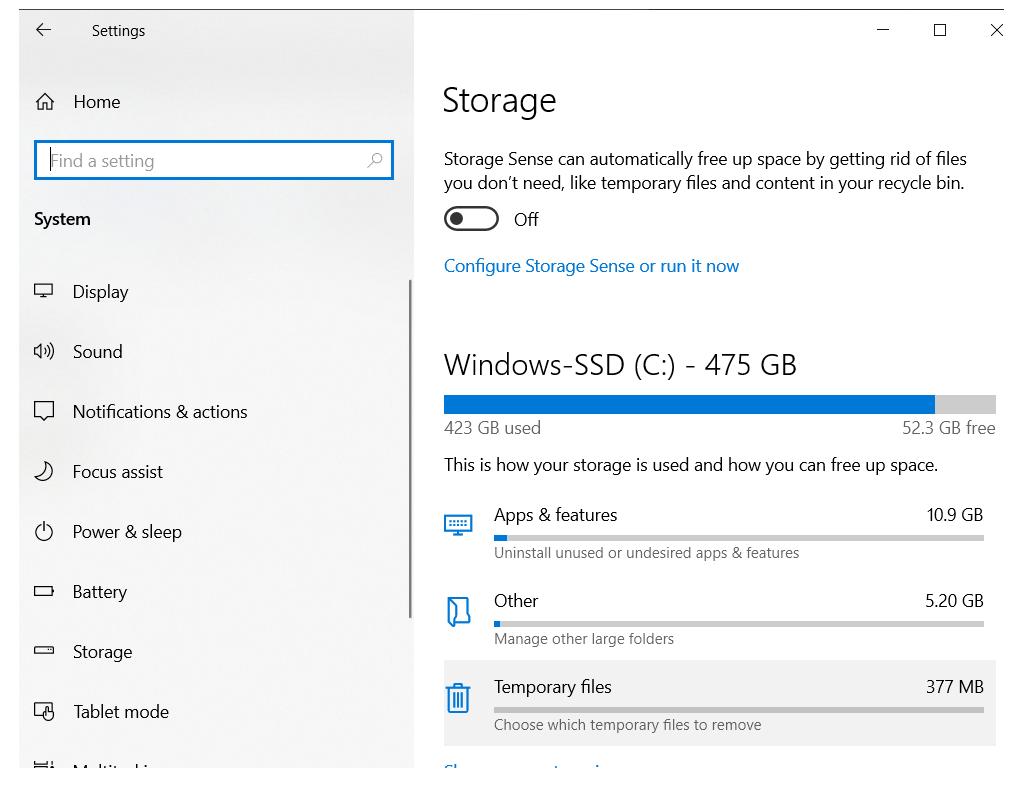

However 'Storage settings' seems to show that Windows owns the whole disk. Is this correct?


Screenshots showing the three outputs mentioned above attached.




----------





----------



:)



W7 Hard drive partition issue

to get rid of that 100 meg windows partition that setup creates for you on a new install on a blank hdd:

- press shift+f10 when on the partition management screen in setup <-- this opens a command prompt
- diskpart <-- start the windows command line partition management tool
- list disk <--- list the installed hdds in this computer for the next step
- select disk 0 <- might have to replace 0 with the number of the correct disk
- clean <-- this will erase all data on the disk you selected one step up- dont use the wrong disk!
- create partition primary <- creates a primary partition taking up all space on the drive, adjust the command if necessary
- exit, exit to exit diskpart and the command prompt
- click refresh in partition manager and select your newly created partition and install to that



Windows 10 Tweaks

Pressing “Windows+Pause Break” (it’s up there next to scroll lock) opens the “System” Window.

Windows 10: In the new version of Windows, Explorer has a section called Quick Access. This includes your frequent folders and recent files. Explorer defaults to opening this page when you open a new window. If you’d rather open the usual This PC, with links to your drives and library folders, follow these steps:

• Open a new Explorer window.
• Click View in the ribbon.
• Click Options.
• Under General, next to “Open File Explorer to:” choose “This PC.”
• Click OK

credit to Lifehacker.



Windows 10

no, you can't go back..
I suggest creating a backup image of your os drive
