Windows 10: Windows 11 does not recognize my PCIe m.2 raid 0 array even though Intel Storage sees it?

Discus and support Windows 11 does not recognize my PCIe m.2 raid 0 array even though Intel Storage sees it? in Windows 10 Gaming to solve the problem; I have a raid 0 array on my Asus Dark Hero Motherboard which is visible in bios and is visible in the Intel Optane Memory and Storage Management app,... Discussion in 'Windows 10 Gaming' started by vkiarsis, Apr 20, 2024.

  1. VKIARSIS
    vkiarsis Win User

    Windows 11 does not recognize my PCIe m.2 raid 0 array even though Intel Storage sees it?


    I have a raid 0 array on my Asus Dark Hero Motherboard which is visible in bios and is visible in the Intel Optane Memory and Storage Management app, however, is it not visible in Windows 11 Disk Manager. Any ideas, greatly appreciated

    :)

    vkiarsis, Apr 20, 2024
    #1
  2. GRAYDON NEILL
    Graydon Neill Win User

    2 RAID Arrays on Z390 chipset (M.2x4 and SATA)

    This is possible. I have successfully built a Z390 based machine with both an M.2 RAID 1 array (boot) and SATA RAID 0 array (D disk), all running off of the Z390 chipset Intel controller. Creating the RAID arrays is standard, and not significantly different than with just SATA disks. The primary difference being that the M.2 disks must have "RST PCIe Storage Remapping" Enabled.

    This system is configured as such:

    • i9 9900k
    • ASRock Z390 Taichi Ultimate
    • 2x 1TB Samsung 970 EVO M.2 SSDs (RAID 1 + Boot)
    • 2x 1TB WD Blue SSDs (RAID 0)

    Graydon Neill, Apr 20, 2024
    #2
  3. 24C
    24c Win User
    M.2 NVMe SSDs in Raid 0 array?

    I am not using a RAID card - there are 3 M.2 slots on the mobo - slots 1 & 2 have Samsung 960 Pro 512 GB drives - slot 3 has a Samsung 960 EVO drive .

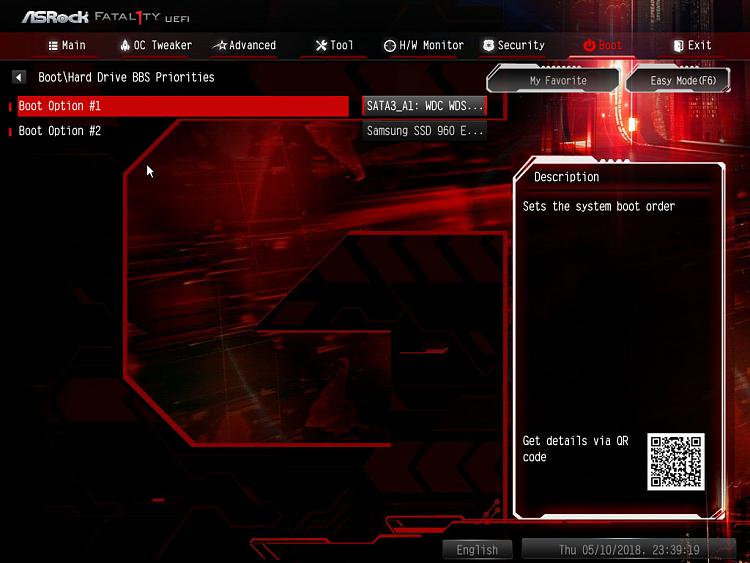

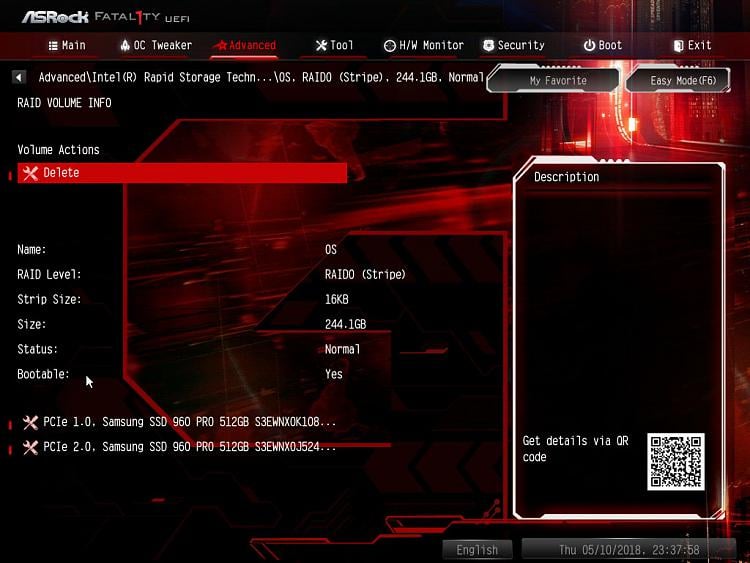

    I can create a RAID 0 array using the 2 960 Pro drives - but it is not recognized in the Boot options.
    Strip size was changed to the suggested 128KB after this pic was taken
    I have been messing with the BIOS all night trying to figure this out - no luck



    Windows 11 does not recognize my PCIe m.2 raid 0 array even though Intel Storage sees it? 188236d1526039352t-m-2-nvme-ssds-raid-0-array-1.jpg

    Windows 11 does not recognize my PCIe m.2 raid 0 array even though Intel Storage sees it? 188238d1526039462t-m-2-nvme-ssds-raid-0-array-2.jpg

    24c, Apr 20, 2024
    #3
  4. GRAYDON NEILL
    Graydon Neill Win User

    Windows 11 does not recognize my PCIe m.2 raid 0 array even though Intel Storage sees it?

    2 RAID Arrays on Z390 chipset (M.2x4 and SATA)

    I need to know if this is possible. To have two RAID arrays on a z390 platform. The first being a boot drive composed of two M.2x4 pcie SSDs in RAID 1 and the other being composed of two SATA III SSDs in RAID 0.

    The ASRock Z390 Taichi Ultimate appears like it might support this since two of the M.2 ports are pcie style, and if both are used it still leaves two open SATA III ports on the Intel controller.

    1. If the M.2 pcie disks are configured in RAID, can I use these two extra SATA III ports for another RAID array?
    2. If question one is possible, can I use the M.2 array as my boot drive?

    Graydon Neill, Apr 20, 2024
    #4
