Windows 10: Windows 11's Task Manager now displays the site name, icon, tab title for Microsoft Edge...

GHacks · Oct 13, 2021

The Task Manager is a very useful feature in Windows, and the processes list is perhaps the most option in the tool. The list shows you the system resource usage of programs that are running actively, and in the background.

It's great for the most part, but when it comes to browsers, it does seem a little confusing. The utility shows several instances of the browser, each of which uses a certain amount of CPU and memory. In a way, this multiprocess list is almost not user-friendly. When a user notices that their computer begins to lag, the first thing they do is open the Task Manager to see what's causing the problem. If the browser usage seems high, they might panic and close the browser, you can't really blame them for doing that.

Tip: You are using an ad blocker to protect yourself from ads and trackers, aren't you? Ad blockers can also help prevent excessive resource usage.

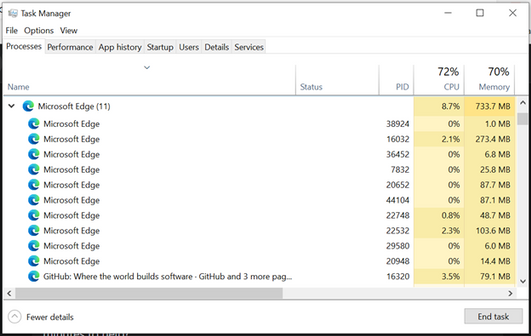

An article on the Windows blog explains how the Windows 11 Task Manager displays additional information related to the Microsoft Edge processes. The feature is already live for users on the stable channel, the current version of the browser is Microsoft Edge 94.0.992.47. Here is a screenshot that shows the new way that the Task Manager lists the processes.

Instead of listing a bunch of Microsoft Edge instances, the monitoring tool now shows the tab information in the processes list. This includes the site name, tab title, and the favicon of each tab. So, now you can actually figure out which tab is using a lot of resources, and close it instead of exiting the browser. That is really useful. Of course, you may also choose to select a specific process and click the End Task button to close it.

Here are the different processes that the Task Manager lists, and a brief description of what they do.

Browser Process - The primary process for managing windows and tabs

GPU Process - Tasks that are using the graphics card

Crashpad - Monitors crashes in Microsoft Edge

Utility - Audio Playback, Network Service, etc

Plug-in and Extension - Related to the resource usage of add-ons and plugins

Renderer - Used for executing code such as HTML, CSS, JavaScript

Dedicated workers/service workers - subframes and scripts that run in the background.

Image Credit: Windows Blog.

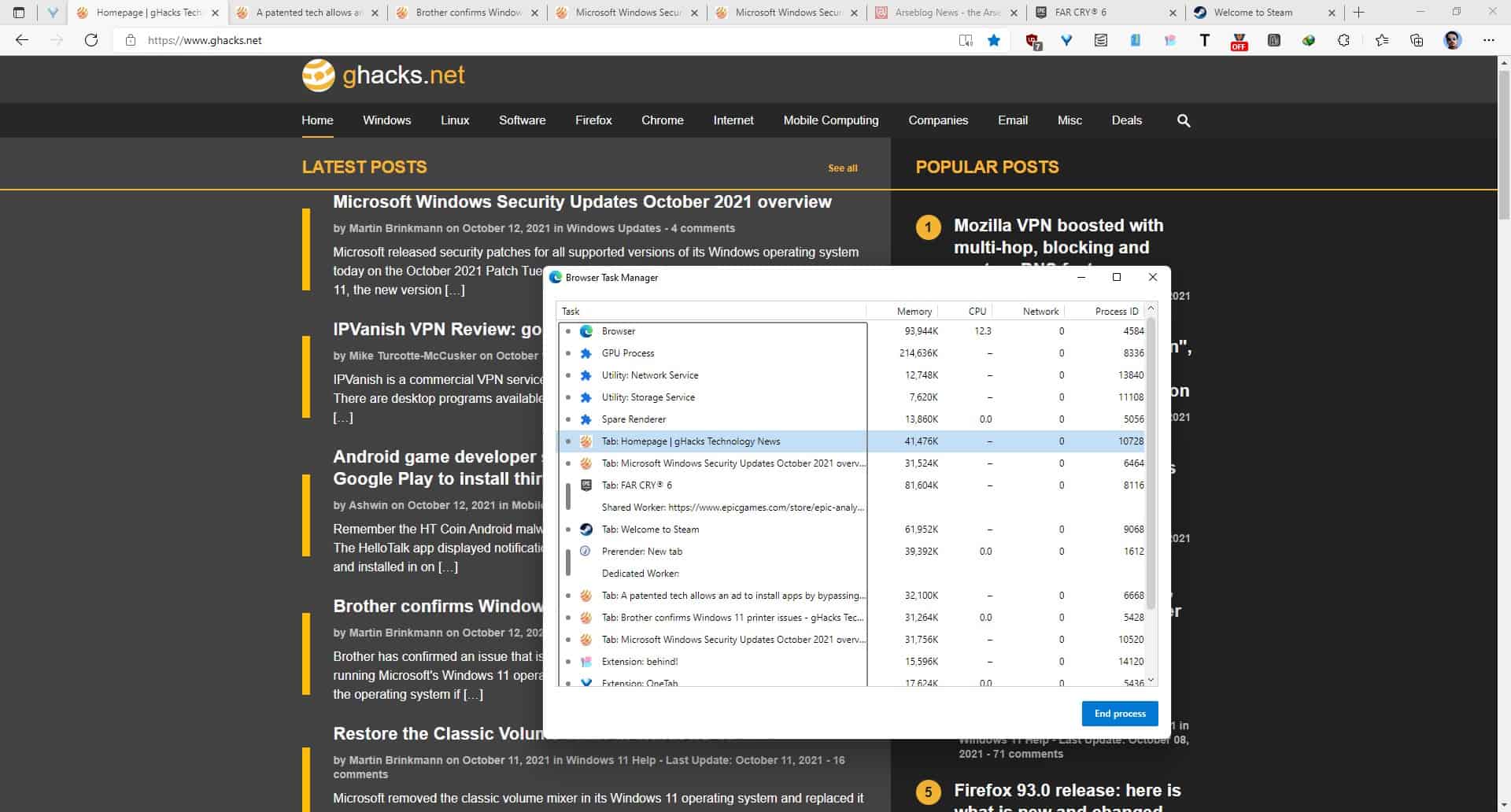

Some Edge processes will display an arrow icon next to them in the Task Manager, clicking on which reveals other items that are sharing the process. This information is also available right in the Microsoft Edge browser. Open the browser and press the Shift + Esc keys, and Edge will display its built-in Task Manager. This functionality will not work with InPrivate tabs, to protect the user's privacy.

It is unclear whether the Task Manager will support other browsers like Firefox and Chrome, but this may depend. I updated to Edge 94 on a Windows 10 computer that we have at home, but the Task Manager still displays the processes in the old style, unlike my Windows 11 system. So, we are not sure if Windows 10 will get the same treatment.

Do you like new Task Manager feature?

Thank you for being a Ghacks reader. The post Windows 11's Task Manager now displays the site name, icon, tab title for Microsoft Edge processes appeared first on gHacks Technology News.

read more...

Brink · Oct 13, 2021

Microsoft Edge Windows Task Manager Improvements in Windows 10

Performance is essential to your success, which makes it core to ours. To help ensure the browser doesn’t slow you down, we always keep performance in mind as we continue to improve Microsoft Edge. We’re also working to help you understand how Microsoft Edge is using the resources on your device to deliver fast, efficient web browsing.

Let’s imagine that one day you are browsing the internet and suddenly your computer starts to slow down, your fan turns on and your computer gets hot. You’re not sure what’s causing the issue, so you open Windows Task Manager to try and diagnose the issue. When you open Windows Task Manager, you struggle to understand what is using your browser’s resources, so you find yourself randomly closing tabs in hopes that it will fix your performance issue.

Not understanding what is happening on your computer can be a very frustrating situation and we want to improve this experience for you while using Microsoft Edge. With that in mind, we have made improvements to how Microsoft Edge is represented in Windows Task Manager and the changes are now available to insiders who are selfhosting BOTH the Microsoft Edge Dev channel 91.0.852.0 AND the Windows Dev channel 21364. Our goal with these improvements is to allow you to better understand where your resources are going and to help you make educated decisions when you experience a performance issue.

Currently, when you open Windows Task Manager and expand Microsoft Edge on the Processes tab, you see a list of processes named Microsoft Edge.

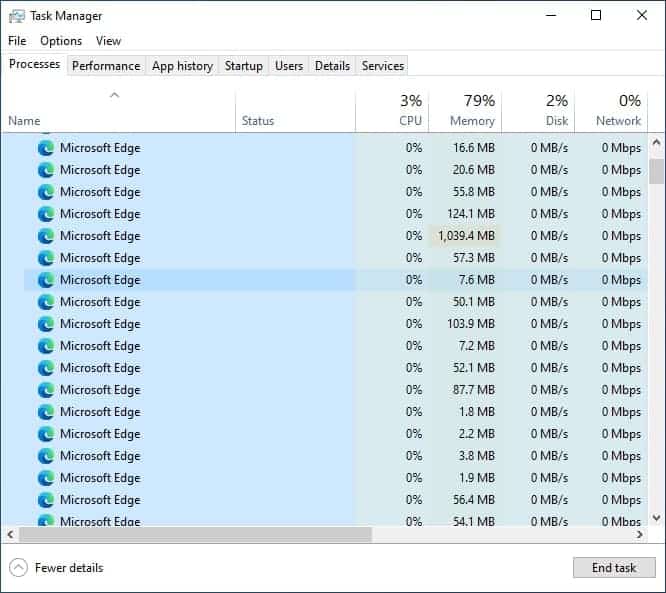

This is what it currently looks like:

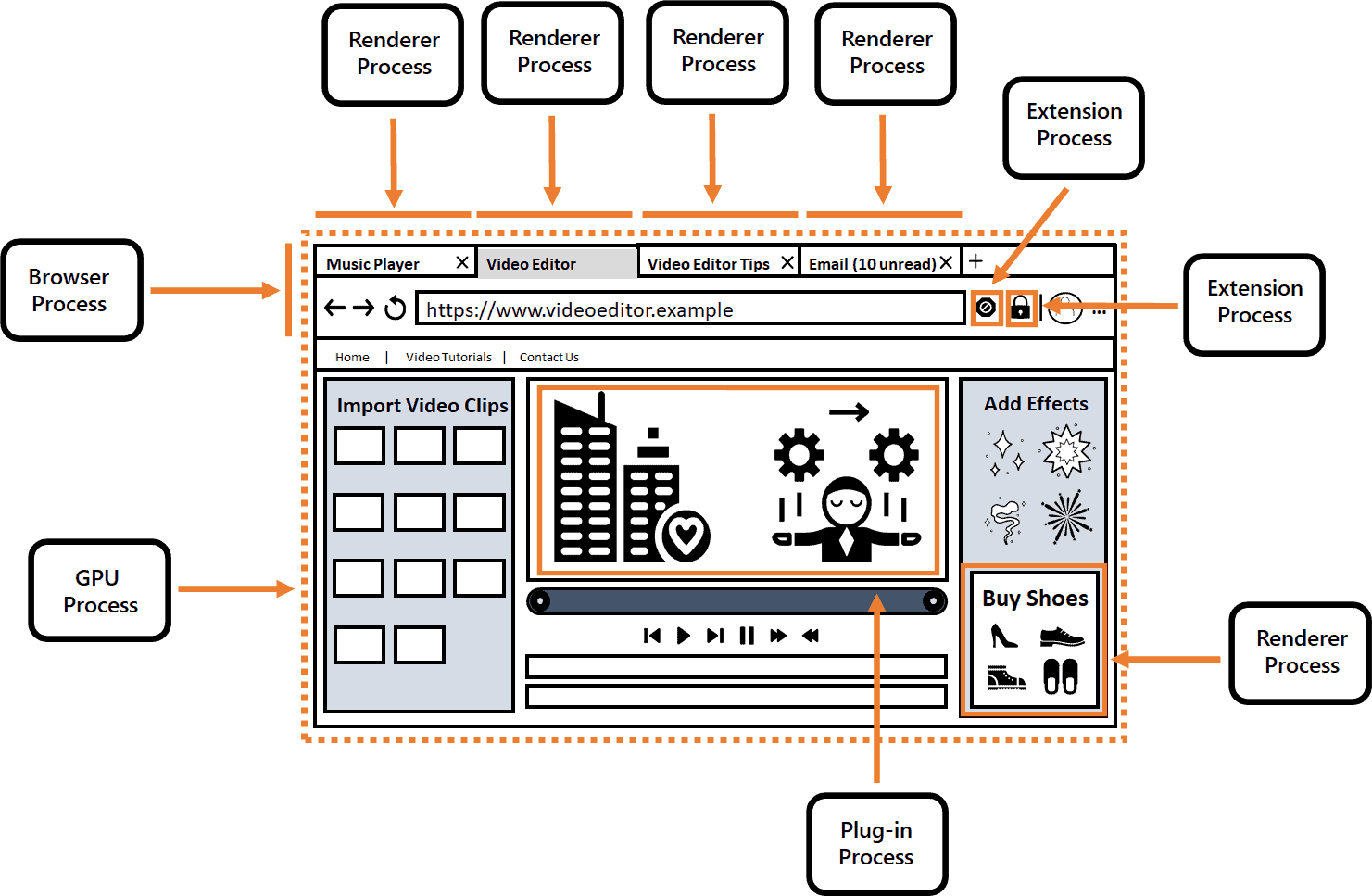

With the latest improvements to Windows Task Manager, you will now see a detailed view of the Microsoft Edge processes. If you are unfamiliar with Microsoft Edge’s multi-process architecture, you can find an easy to understand explanation here. In this blog post you will learn why Microsoft Edge has multiple processes running, what the purpose of each process is, and the benefits of a multi-process architecture.

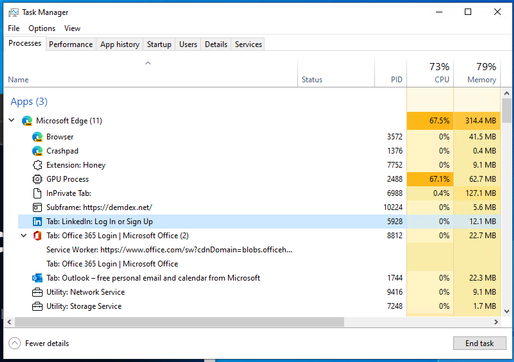

This is how Microsoft Edge is represented in Windows Task Manager, with the latest improvements:

The improvements include:

For the browser process, GPU process and crashpad process, you will see the process type

For the utility, plug-in, and extension processes, you will see the process type and the name of the service, plug-in, or extension

For renderer processes:

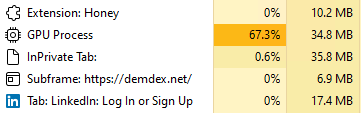

For tabs you will see the word ‘tab’, and the site name and icon (Note: For InPrivate tabs, site name will be removed and icon will updated to a default tab icon)

For subframes (typically used for ads), you will see the word ‘subframe’, followed by the subframe’s URL

All dedicated workers and service workers will be listed

Each line under Microsoft Edge in Windows Task Manager is NOT ALWAYS a separate process. Some processes contain multiple items and will be represented by multiple lines in Windows Task Manager.

There are multiple ways to distinguish which items are in their own process and which items share a process.

[table][tr][td]Single item in process[/td] [td]Multiple items share a process[/td] [/tr] [tr][td]There is no arrow next to the icon [/td] [td]There is an arrow next to the icon indicating that the item shares a process with other items. At the end of the title, there will also be a number in parentheses indicating how many other items share that process. The arrow can be clicked to expand the process When the process is collapsed, the arrow points to the right and you will only see one of the items in the process When the process is expanded, the arrow points down and you will see all the items that share a process with that item (items that are revealed once the arrow is clicked will not have an icon next to it) [/td] [/tr] [tr][td]When clicked, only one line is highlighted [/td] [td]When clicked and the process is collapsed, only one line is highlighted When clicked and the process is expanded, all the items that share a process are highlighted [/td] [/tr] [tr][td]Since there is only one item in each process, each line will have its own resource usage [/td] [td]Since multiple items share a process, the item that has the arrow next to it will show you the total resource usage for that process. When expanded, the resource usage for the remaining rows will remain blank [/td] [/tr] [tr][td]When clicking ‘End Task’, the single row that is highlighted will be closed[/td] [td]When clicking ‘End Task’, all rows that are highlighted when a process is expanded will be closed. You can only close processes, not individual items in Windows Task Manager[/td] [/tr] [/table]

When ending tasks, depending on the process that you are ending, you will see different behaviors. A few examples of what you may see are:

Browser process: All processes related to that instance of Microsoft Edge will close.

GPU process, utility processes: Processes will close and restart. When the processes close, you may see a brief change in your Microsoft Edge window. For example, when the GPU process is closed, your Microsoft Edge window will briefly go black and will return to normal once the process is restarted and when the audio utility process is closed, if you are listening to music, your audio will briefly stop and will return to normal once the process is restarted.

Renderer processes: Process will close. If the process contains tabs, all the tabs in the process will be replaced with an error page saying, “This page is having a problem.” If the process contains subframes, the visible subframes will be replaced with a crashed tab icon. For invisible subframes, you likely won’t see a difference, but the page may be affected in some way.

Extension and plug-in processes: A balloon will appear in the bottom right-hand corner of your screen saying the extension or plug-in has crashed and will ask you if you would like to reload the extension or plug-in.

Crashpad processes: Process will close. Crashes in Microsoft Edge may be reported by other means.

Dedicated workers/service workers: Functionality of a tab may break.

If you are familiar with the Task Manager in Microsoft Edge, which can be opened by pressing Shift+Esc while in Microsoft Edge or by going to the top corner of the browser and selecting Settings and more (…) > More tools > Browser task manager, you will see that the improvements made to Windows Task Manager look similar. We wanted to provide the same level of detail in Windows Task Manager as we do in Browser Task Manager to help you better understand where your resources are going and to help you make educated decisions when you experience a performance issue. One thing to note is that Windows Task Manager shows a different memory value than Browser Task Manager. If you want to learn more about what each value represents, we explain this in detail in the blog post How to investigate Microsoft Edge’s memory usage on Windows and if you are generally interested in learning more about how your browser manages memory, you can learn more here.

The changes are currently available to insiders who are selfhosting BOTH the Microsoft Edge Dev channel 91.0.852.0 AND the Windows Dev channel 21364. If you are interested in trying out the improvements and you are not a Windows Insider, you can sign up to become one here and you can find the official Windows announcement here.

We would love to hear about your experience troubleshooting Microsoft Edge with the improvements made to Windows Task Manager. If you would like to share your experience/feedback, you can do so by right clicking anywhere on Microsoft Edge in Windows Task Manager and then clicking ‘Provide Feedback’. This button will launch the Windows Feedback Hub. You can also submit feedback directly through Microsoft Edge by going to Settings and more … > Help and feedback > Send feedback or by pressing Shift+Alt+I on a Windows device after you’ve clicked on your browser window.

We hope you enjoy these improvements and look forward to hearing from you!
Click to expand...

Source: https://techcommunity.microsoft.com/...ts/m-p/2280526

Brink · Oct 13, 2021

How to Name or Rename Tab Group in Microsoft Edge

Microsoft has adopted the Chromium open source project in the development of Microsoft Edge on the desktop to create better web compatibility. This new Microsoft Edge runs on the same Chromium web engine as the Google Chrome browser, offering you best in class web compatibility and performance.

The new Chromium based Microsoft Edge is supported on all versions of Windows 7, Windows 8.1, Windows 10, Windows Server (2016 and above), Windows Server (2008 R2 to 2012 R2), and macOS.

You can enable the Tab Groups experimental flag in Microsoft Edge to allow users to organize tabs into visually distinct groups, e.g. to separate tabs associated with different tasks.

Tab Groups includes the following features:

Add tab to new or existing group

Remove tab from group

Name or rename group

Open new tab in group

Ungroup tabs in a group

Close group to remove group and all added tabs

This tutorial will show you how to name or rename tab groups in the Chromium based Microsoft Edge in Windows 7, Windows 8, or Windows 10.

Read more: Browsers and Mail - How to Name or Rename Tab Group in Microsoft Edge | Windows Questions

Don325 · Oct 13, 2021

microsoft edge icon

Click Start button

Click All Apps

Scroll down to Microsoft Edge

Right Click on Microsoft Edge

Click Add to Taskbar
Click to expand...

I also lost me MS EDGE Icon recently.

The above suggestion doe not work as it does not exist in the app list

However, if I post a simple question in Cortina MS EDGE will open up.

Also If I then look at the active processes in Task Manager I can see MS EDGE (though not the usual ICON)

Any suggestions how to solve this problem?

Thanks
