Windows 10: windows audio device manager graph isolation using 28 GB Ram

Discus and support windows audio device manager graph isolation using 28 GB Ram in Windows 10 Drivers and Hardware to solve the problem; so... windows audio device manager graph isolation is using 20% of my CPU and 28 GB of my Ram and I don't know why. It occasionally makes a windows... Discussion in 'Windows 10 Drivers and Hardware' started by [-Matthew-], Apr 27, 2020.

  1. windows audio device manager graph isolation using 28 GB Ram


    so... windows audio device manager graph isolation is using 20% of my CPU and 28 GB of my Ram and I don't know why. It occasionally makes a windows error notification sound non-stop, so like a random noise every 10-60 seconds


    I started downloading python 3.8.2 right around when this happened but it was off of the official website--> https://www.python.org/downloads/


    Do I have a virus??

    I was going to take more snipps, with the snipping but ever time i click new both screens go black


    I have not tried a restart yet and I will but, its just so weird, and every time I end the task it starts back up again and slowly goes from 2Gb Ram to 28GB Ram in a matter of minuets

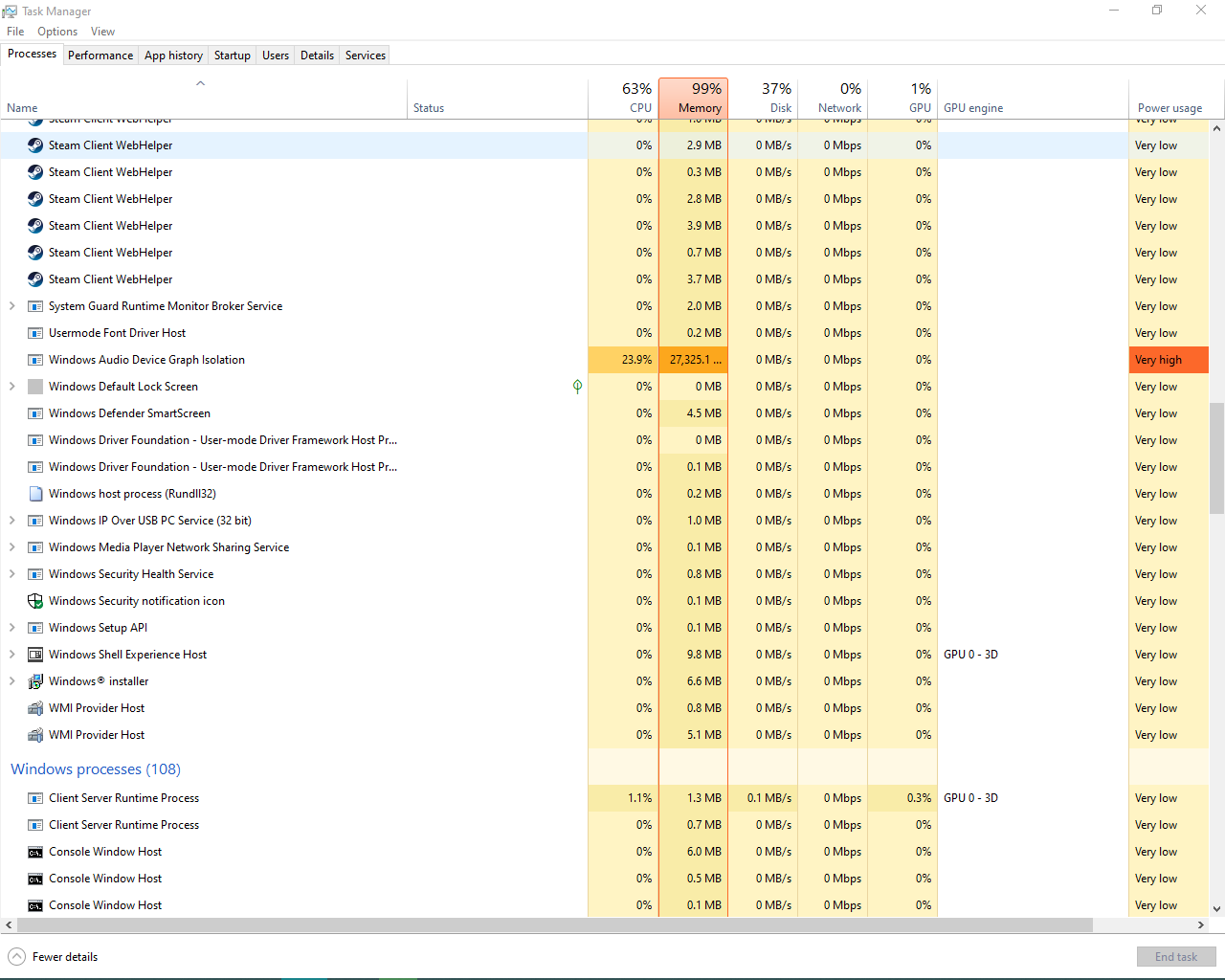

    windows audio device manager graph isolation using 28 GB Ram baa260a4-bb72-425b-baac-725a791a6290?upload=true.png

    :)

    [-Matthew-], Apr 27, 2020
    #1
  2. David Haz Win User

    Windows audio device graph isolation problem

    Hello,

    Windows Audio Device Graph Isolation is an official part of Windows and serves as the primary audio engine in Windows 10. It handles the audio enhancement effects provided by Windows. If you are using any enhancements, we suggest that you disable them and
    see if the sounds stops. You may disable your enhancements by following the steps below:

    • Right-click the Volume icon in the Taskbar.
    • Click Sounds.
    • From the Sound window, click the Playback tab, then select the device that you suspect is causing the issue.
    • Click Properties.
    • On the Enhancements tab, click the Disable all enhancements checkbox.
    • Click OK.

    David Haz, May 23, 2020
    #2
  3. Windows Audio Device Graph Isolation High CPU

    Hi,

    Thank you for posting your question in the Microsoft Community Forums.

    I appreciate the efforts taken by you in troubleshooting this issue. The details provided helps us to avoid repeating the steps.

    I can understand the situation must be different for you when the Windows Audio Device Graph Isolation doesn't work as it should.

    Windows uses the process Windows Audio Device Graph Isolation as its main component of Windows audio engine. It helps Windows in sound enhancement process. Windows Driver Developer uses Windows Audio Device Graph Isolation to insert their Audio effect
    to enhance the sound quality.

    Please answer these questions to get clarity on this issue:

    1. Are you aware of any changes made to the PC prior to this issue?
    2. Have you installed all the pending updates on the PC?
    3. Which security software did you use to perform the virus scan on the PC?

    However, let us follow these methods and check if that helps.

    Method 1: Let us now follow these steps to uninstall the audio driver completely.

    1. Go to control panel and open device manager. Or press Windows + R key at same time to open Run and type devmgmt.msc.
    2. Click on “Sound, video and game controllers” in device manager.
    3. Right click on a sound card and then click on properties.
    4. Click on the Driver tab.
    5. Click on the Uninstall Driver button.
    6. A dialog box will ask you to confirm the action. Check the option
      Delete the driver software for this device. Click on OK.
    7. Once done, click on View and select Devices by connection on the Device manager.
    8. Expand ACPI x64 based PC.
    9. Expand PCI Express Root complex and right-click on Intel Smart Sound technology Audio controller and uninstall the device.
    10. Make sure to delete the driver if prompted during the uninstall process.
    11. Once done, click on Action and Scan for hardware changes twice in the device manager.
    12. Close Device Manager.
    •Open Settings from the Windows menu.

    •Click on Update and Security and check for updates to get the new audio driver for your computer.

    Method 2: Sometimes answering or calling on
    Skype might be the reason of Windows Audio Device Graph Isolation to use 100% disk. This will happen when you are using the Skype app. To resolve it. You need to reinstall it with the updated version in your Windows 10 PC. You can do that from
    the Microsoft Store.

    We look forward to your response.

    Regards,

    Srimadhwa B

    Microsoft Community-Moderator

    Srimadhwa_B, May 23, 2020
    #3
  4. windows audio device manager graph isolation using 28 GB Ram

    Windows Audio Device Graph Isolation

    The last month or so, my Windows Audion Device Graph Isolation consistently takes up between 20%-70% of my RAM at any given time, even when I'm not playing audio. I know that this shouldn't even be the case when I'm playing audio. The other methods listed
    in other community posts that I have read have not worked for mine and I am looking to get this fixed as soon as possible. What can I do to fix this problem?

    EricBrown07, May 23, 2020
    #4
