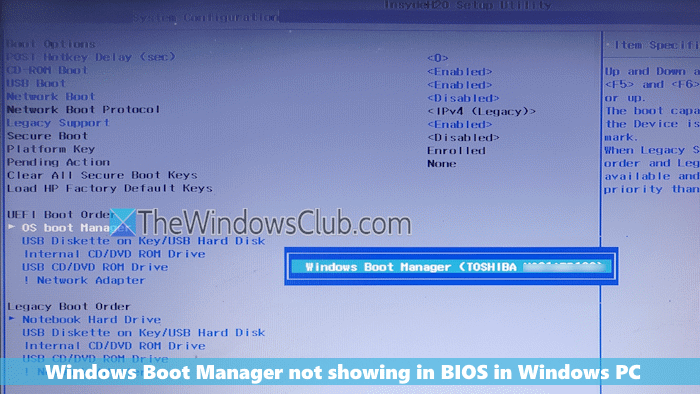

Windows 10: Windows Boot Manager not showing in BIOS in Windows 11

​

Windows Boot Manager (or BOOTMGR) is a key component of the boot process. It starts a system, displays the boot menu (for multi-boot or dual-boot scenarios), and loads the selected OS loader. However, some users have complained that Windows Boot Manager is not showing in BIOS on their Windows 11 PC. Thus, users can’t boot […]

This article Windows Boot Manager not showing in BIOS in Windows 11 first appeared on TheWindowsClub.com.

read more...



Windows stuck in automatic repair; Can't access BIOS/ boot menu

I've changed the boot order through both BIOS and the boot manager, as my original post stated. Neither did anything, but both were functional in the past. Neither listed the windows boot manager, either. Previously, it would boot just as expected whenever
other media was set as the first option, so I'm pretty sure there are no issues there.

As my original post suggested, I've already tried out the steps you gave. I've gone through all the options listed in the boot menu, UEFI or not.

My BIOS and boot menu settings were at their defaults when all of this started, so that's been tried already, if those are what you're referring to.



How to : Hard drives used to show in Windows and are now missing [visible in BIOS]

Skip to bottom for resolution:
----------------------------------
I had a scare today that in hindsight, I possibly could have avoided. I am not certain that I caused the issue, however decided I wanted to share the resolution with my comrades at TPU and hopefully others in the future.
Searching for this type of subject, is difficult as any work around or solution is often piled under results that are for a similar issue though not quite this scenario.

I was changing power supplies and realized I was short of the remaining required SATA power cables. This meant I could only power on my SSDs(normally two SSD, two HDD). After finishing, I had the system up and running for a few hours doing various things when I stumbled across some more SATA power cables. I took the machine down, hooked up the SATA>HDD and booted the system.

Windows did not see the mechanical drives in Explorer. I checked the following :

• Are the drives getting power? Yes I can hear/feel them slightly humming. Good sign.
• Are the drives showing in Device Manager under Disk Drives? No only my SSD show.
• Are the drives showing in Administrative Tools> Computer Management > Disk Management? No only my SSD show.

Turned off the system. I checked the following :

• SATA connections at the motherboard and the hard disks. Connections are firm.
• Double checked in BIOS that they were visible.

I booted Windows again and this time listened intently for that classic crunch sound of the drive head doing it's work. I heard nothing.

A coffee later ( I don't drink coffee, was very stressful times - Defcon 2 I would say) I took stock of what I knew :

• There's power
• There's SATA data transmission
• BIOS has given us a green light
• I didn't do any thing to my knowledge that would trash the drives.

It occurred to me I may have confused Windows, and I remembered that sometimes devices can be hidden (what causes this could be a myriad of reasons that I am unaware of).


Solution :

• Open Control Panel > Device Manager

other ways to reach the Device Manager :

• Start Menu > Run and type mmc devmgmt.msc
• Start Menu and type Device Manager in the search box
• Start Menu and type mmc devmgmt.msc in the search box

• At the top of the Device Manager, click on View and then Show Hidden Devices.
• Down in the main window of the Device Manager, press the arrow or plus (+) sign to the left of the section Disk drives. It will open the list of drives, including any that are hidden. These will be colored with grey text. You should see some familiar models in there, hopefully your missing hard disks and there may be several entries for each (meaning there's duplicates).
• Right click on each of the grey entries that relate to your missing device(s) and select Uninstal (do this for every instance or copy of your missing drives).
• Agree to the OK or Cancel prompt that you receive.
• Reboot your system.

As your system prepares to enter Windows, you will never have been more happy to hear the nasty crunch of mechanical hard disks as the little HD men go to work inside your storage devices.



windows xp installation and dual core am

could someone please list the steps they follow to install windows with a dual core processor and windows xp service pack to. I'm reletively new to amd dual core and i feel i'm missing a step. All help will be appreciated. thanx
