Windows 10: Windows Showing Critical Updates Missing But Not Showing How To Download Them

photo here

:)



Help! Data partition not showing under my computer

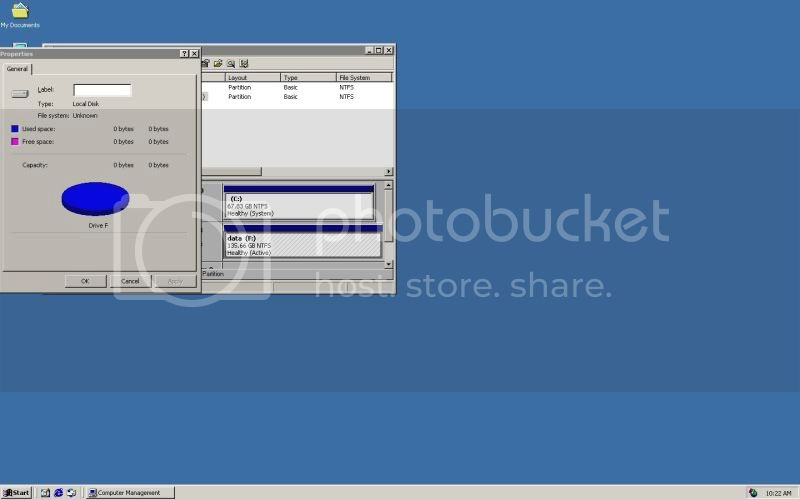

This is happening on a windows 2000 server. Our second partition of the system, for data is not showing under my computer. Here are the properties of it in disk management:





Now under logical drives its listed as F and shows free space available.

Suggestions on how to fix this?



How to : Hard drives used to show in Windows and are now missing [visible in BIOS]

Skip to bottom for resolution:
----------------------------------
I had a scare today that in hindsight, I possibly could have avoided. I am not certain that I caused the issue, however decided I wanted to share the resolution with my comrades at TPU and hopefully others in the future.
Searching for this type of subject, is difficult as any work around or solution is often piled under results that are for a similar issue though not quite this scenario.

I was changing power supplies and realized I was short of the remaining required SATA power cables. This meant I could only power on my SSDs(normally two SSD, two HDD). After finishing, I had the system up and running for a few hours doing various things when I stumbled across some more SATA power cables. I took the machine down, hooked up the SATA>HDD and booted the system.

Windows did not see the mechanical drives in Explorer. I checked the following :

• Are the drives getting power? Yes I can hear/feel them slightly humming. Good sign.
• Are the drives showing in Device Manager under Disk Drives? No only my SSD show.
• Are the drives showing in Administrative Tools> Computer Management > Disk Management? No only my SSD show.

Turned off the system. I checked the following :

• SATA connections at the motherboard and the hard disks. Connections are firm.
• Double checked in BIOS that they were visible.

I booted Windows again and this time listened intently for that classic crunch sound of the drive head doing it's work. I heard nothing.

A coffee later ( I don't drink coffee, was very stressful times - Defcon 2 I would say) I took stock of what I knew :

• There's power
• There's SATA data transmission
• BIOS has given us a green light
• I didn't do any thing to my knowledge that would trash the drives.

It occurred to me I may have confused Windows, and I remembered that sometimes devices can be hidden (what causes this could be a myriad of reasons that I am unaware of).


Solution :

• Open Control Panel > Device Manager

other ways to reach the Device Manager :

• Start Menu > Run and type mmc devmgmt.msc
• Start Menu and type Device Manager in the search box
• Start Menu and type mmc devmgmt.msc in the search box

• At the top of the Device Manager, click on View and then Show Hidden Devices.
• Down in the main window of the Device Manager, press the arrow or plus (+) sign to the left of the section Disk drives. It will open the list of drives, including any that are hidden. These will be colored with grey text. You should see some familiar models in there, hopefully your missing hard disks and there may be several entries for each (meaning there's duplicates).
• Right click on each of the grey entries that relate to your missing device(s) and select Uninstal (do this for every instance or copy of your missing drives).
• Agree to the OK or Cancel prompt that you receive.
• Reboot your system.

As your system prepares to enter Windows, you will never have been more happy to hear the nasty crunch of mechanical hard disks as the little HD men go to work inside your storage devices.



Windows Updated(16299.309).KB4088776 Restart is required to complete.

Hi dalchina. Good news, I followed your suggestion and reinstalled the update and now it appears as "installed correctly" *Biggrin Maybe it was not necessary to run the Windows Update Troubleshooter or maybe if necessary. But using it I do not think it could have worsened something. The installation was very fast, unlike the first time it showed step 1 and step 2 completed.

Thanks for the suggestions and for the time to respond Best regards.


And thanks for the tip of that program, I'll have it on my list.
