Windows 10: Windows UI Library Preview released for Windows 10

Brink · Jul 23, 2018

The Windows UI Library (or WinUI for short) is a new way to get and use Fluent controls and styles for building Windows 10 UWP apps: via NuGet packages.

The WinUI NuGet packages contain new and popular UWP XAML controls and features which are backward-compatible on a range of Windows 10 versions, from the latest insider flights down to the Anniversary Update (1607).

Benefits of the Windows UI Library

Previously, the UWP XAML app development framework was shipped and updated solely as part of Windows and the SDK. In order to get new features or fixes, you had to wait for a new version of Windows. And just as importantly, you had to wait for your users to update their OS as well.

Using the new WinUI NuGet package(s) has two main benefits for UWP XAML app developers:

It lets you start building and shipping apps with new UWP XAML features immediately: since the NuGet packages are backward-compatible with a wider range of Windows 10 versions, you no longer have to wait for your users to update their OS before they can run your app with the latest features.

It makes it simpler to build version adaptive apps: you usually won’t have to include version checks or conditional XAML markup to use controls or features in a WinUI package when you’re building an app that targets multiple versions of Windows 10.

Release Details

The Windows UI Library is built and maintained by the same engineering team responsible for the standard Windows 10 SDK, and follows the same development and testing process. However, shipping via NuGet gives our engineering team more flexibility in how we plan, release, and update the UWP XAML platform.

This initial release includes previews of the first two Windows UI packages:

Microsoft.UI.Xaml

Microsoft.UI.Xaml.Core.Direct

These are prerelease packages, similar to a Windows Insider SDK. A future release will include “RTM” versions of these packages, and may have additional features or breaking changes. The prerelease versions are fully functional for testing and evaluation purposes, but we recommend using the RTM versions for production apps.

Not all of the XAML platform is in WinUI. For future versions we’re evaluating moving more of the XAML platform to WinUI packages, and are also exploring options for moving our development process to an open source model on GitHub.

Until then, we look forward to hearing any issues or feedback you may have through the Feedback Hub or through the UWP UserVoice forum!

Getting Started

You can find more info on how to install and get started with the Windows UI Library preview in the documentation, which will be expanded in the coming weeks:

https://aka.ms/winui

The NuGet packages for WinUI can be found via the NuGet Package Manager in Visual Studio, or by visiting the package pages:

https://www.nuget.org/packages/Microsoft.UI.Xaml

https://www.nuget.org/packages/Micro...ml.Core.Direct

The dev branch of the Xaml Controls Gallery sample app available in the Microsoft Store has also been updated to use WinUI as a usage example:

https://github.com/Microsoft/Windows...s/XamlUIBasics

Note that to use the Windows UI Library, your UWP project’s Min version must be 14393 or higher and the Target version must be 17134 or higher.

Windows UI Library Contents

1) Existing controls and features, with wider version support

The Microsoft.UI.Xaml package includes a number of controls that are also part of the standard Windows 10 SDK, plus Fluent design elements like Reveal highlighting and the Acrylic material.

For example, apps often use a TreeView control to display and navigate a hierarchical list. A new native UWP Windows.UI.Xaml.Controls.TreeView control was added to Windows 10 as part of the April 2018 Update (1803), which means end-users have to install the April 2018 Update before they can run apps that use it. And not every user may be running that version of Windows 10 yet, especially in enterprise environments which evaluate and roll out updates at a slower pace.

However with WinUI, TreeView is also available as a separate Microsoft.UI.Xaml.Controls.TreeView class which provides the same functionality as the default Windows 10 SDK, with added benefits:

It works on a wider range of previous Windows 10 versions

It includes new functionality which hasn’t been released in the standard SDK version yet

Apps can freely use both the default SDK version and the WinUI version of the same control. But you may as well use the WinUI version of a control when there’s one available since there’s little downside.

More info on the package contents is available in the documentation:

https://aka.ms/winui

2) New and preview controls

The Microsoft.UI.Xaml package also includes new controls that will likely be included in the standard SDK with a future release of Windows, like CommandBarFlyout and MenuBar.

Prerelease versions of the packages may additionally contain early prerelease features and controls. For example, this first prerelease version contains some controls like Repeater, Scroller, and LayoutPanel: these controls are functional, but we’re still working on them and so they likely won’t be included in the first upcoming RTM release of WinUI.

3) XamlDirect

The Microsoft.UI.Xaml.Core.Direct package is a preview of a new standalone WinRT library for middleware developers.

It provides lower level access to most of the XAML framework, enabling better CPU and working set performance for middleware components.

It is functional on the Windows April 2018 Update and previous versions of Windows 10, but will provide improved performance on current RS5 insider builds and upcoming versions of Windows 10!
Click to expand...

Source: Windows UI Library Preview released! - Windows Developer BlogWindows Developer Blog

:)

Ahhzz · Jul 23, 2018

Windows 10 Tweaks

Pressing “Windows+Pause Break” (it’s up there next to scroll lock) opens the “System” Window.

Windows 10: In the new version of Windows, Explorer has a section called Quick Access. This includes your frequent folders and recent files. Explorer defaults to opening this page when you open a new window. If you’d rather open the usual This PC, with links to your drives and library folders, follow these steps:

Open a new Explorer window.

Click View in the ribbon.

Click Options.

Under General, next to “Open File Explorer to:” choose “This PC.”

Click OK

credit to Lifehacker.

Hawkstream · Jul 23, 2018

Can you unlock Windows 10 Technical Preview eventually?

Hi,

I am using the Win 10 Tech Preview which is great. When its is finally released in the Fall (or maybe in July as the rumors have suggested) can I just use my Windows 8 Key and turn this install into a full licensed version or will I have to re-install it and use my key then?

Thanks

Protagonist · Jul 23, 2018

Windows 10 Club

So I've tried the Windows 10 Pro Technical Preview Build 9926,... So far so good i like it, it appears to already have DX12.

At list i have an old Laptop to test it on,.. it's good so far and i highly think I'll be upgrading to it day on of release.

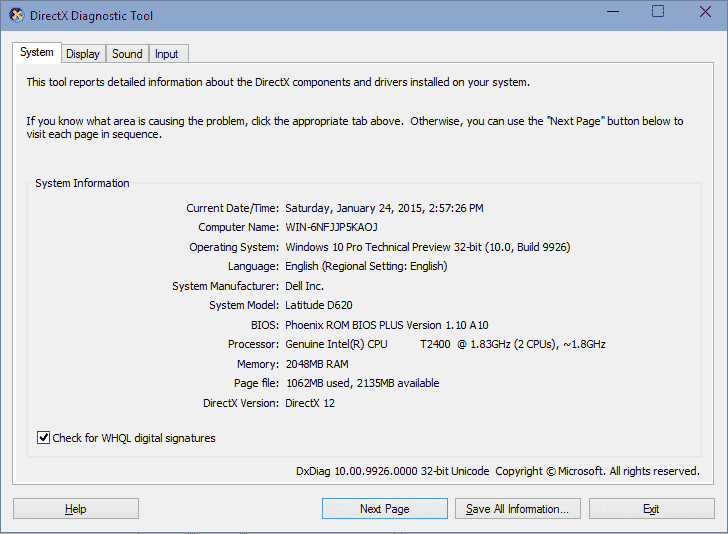

dxdiag screen above
