Windows 10: Xbox App NAT Moderate Server connectivity Blocked

Hello. First I would like to give the best-detailed information about my problem in hopes to try and get this working. This is technically my last option.

I installed a fresh version of Windows 10 Home Premium on my
Alienware Aurora-R4
Intel(R) Core(TM) i7-3930K
16 GB DDR3 RAM
GeForce GTX 1080

Everything works great. I haven't done much with it yet but I've been having issues with the Xbox App and I tried everything and I'm to the point of giving up on Windows 10 and going back to Windows 7.



So when I first saw the issue in the party chat saying ( Your network settings are blocking party chat. 0X89234013) I went ok. I'll probably need to open some ports.

Just as a Note: I can play games online but the party chat is hopeless.
So I opened these ports for my PC IP Address

• Port 88 (UDP)
• Port 3074 (UDP and TCP)
• Port 53 (UDP and TCP)
• Port 80 (TCP)
• Port 500 (UDP)
• Port 3544 (UDP)
• Port 4500 (UDP)

I checked NAT Type in Xbox Networking and it was Strict and Server connectivity is Blocked. I restarted the computer and the modem and no change. Also note, my Xbox One X is on the same line and it doesn't have problems.

I followed the blocked issue on this link and everything is normal.
https://support.xbox.com/en-US/xbox-on-windows/social/server-connectivity-xbox-app-displays-blocked

So that never worked. I started following tuts on the internet like.


CMD Admin
netsh interface tcp show global

Receive-Side Scaling State: enabled
Receive Window Auto-Tuning Level: normal
Add-On Congestion Control Provider: default
ECN Capability: disabled
RFC 1323 Timestamps: disabled
Initial RTO: 3000
Receive Segment Coalescing State: enabled
Non Sack Rtt Resiliency: disabled
Max SYN Retransmissions: 2
Fast Open: enabled
Fast Open Fallback: enabled
HyStart: enabled
Pacing Profile: off


Turning netsh int tcp set global autotuninglevel=disabled
Still did nothing so I put that back to

netsh int tcp set global autotuninglevel=normal

I tried to delete my Network adapter driver and install it again. Nope, still the same.
I went into my Ethernet adapter properties and I saw Everything is checked but Microsoft Network Adapter Multiplexor. I tried Internet Protocol V4 Manual configuration and didn't work.
Some tuts mentioned Regedit but all of them never worked because they showed things mine didn't have.
I tried Disabling Windows Defender Firewall and it did nothing.
I went into Windows Defender Firewall with Advanced Security and it seems fine.
I went into my Modem to see if anything was being blocked since I added Port Forwarding. (Note it's a combo Wi-Fi / LAN and Wi-Fi just fails with teredo)

I checked its firewall and it's not blocking any of the ports. I even tried to disable it and still nothing.
I tried linking my computer to IPv6 DMZ Hosting in the modem and nothing helped.
I tried my other internet line on that modem and still no luck.
I then started to blame Malwarebytes Anti-Malware and deleted it and still the same. I don't have any other AntiVirus software yet besides Malwarebytes Anti-Malware and Windows Defender.
There isn't really much installed yet. Like I said it's a fresh copy with the computer drivers.

There is one thing that actually did work a tad.
In CMD Admin I typed in

netsh
int
teredo
show state
set state client clientport-3544

That broke teredo and so I used the (Fix it) button in Xbox Networking and that turned it from NAT strict to NAT Moderate


show state, shows this.
Type: natawareclient
Server Name: win1807.ipv6.microsoft.com.
Client Refresh Interval : 3544 seconds
Client Port: unspecified
State: qualified
Client Type: teredo host-specific relay
Network: unmanaged
NAT: restricted (port)
NAT Special Behaviour : UPNP: No, PortPreserving: Yes
Local Mapping: 192.168.1.80:55534
External NAT Mapping: Some IP that says it in my location but it's not my internet IP:55534


So this is where I'm at. I installed Windows 10 for the Xbox App and everything I try does not work. It doesn't help Windows 10 is constantly changing and tutorials become pointless.
I hope someone may have an idea because I ran out. I've been dealing with this issue for two weeks now and I lost all hope.

BTW all the changes I did I made sure to keep it all original so no modified changes I did will affect everything.
Hints to update your page Microsoft as CMD is not in the start menu as it's just Powershell in there now.


P.S. The Netflix app doesn't work. Every time I hit play it just say's,
Whoops, something went wrong: Error code U7363-1260-8004B823
I tried it in Google Chrome and it Skips. I try it in Firefox and it works perfectly. Not sure if it's affected by this but I'm guessing so.

:)



xbox app server connectivity blocked

hi

i have a problem with my xbox app

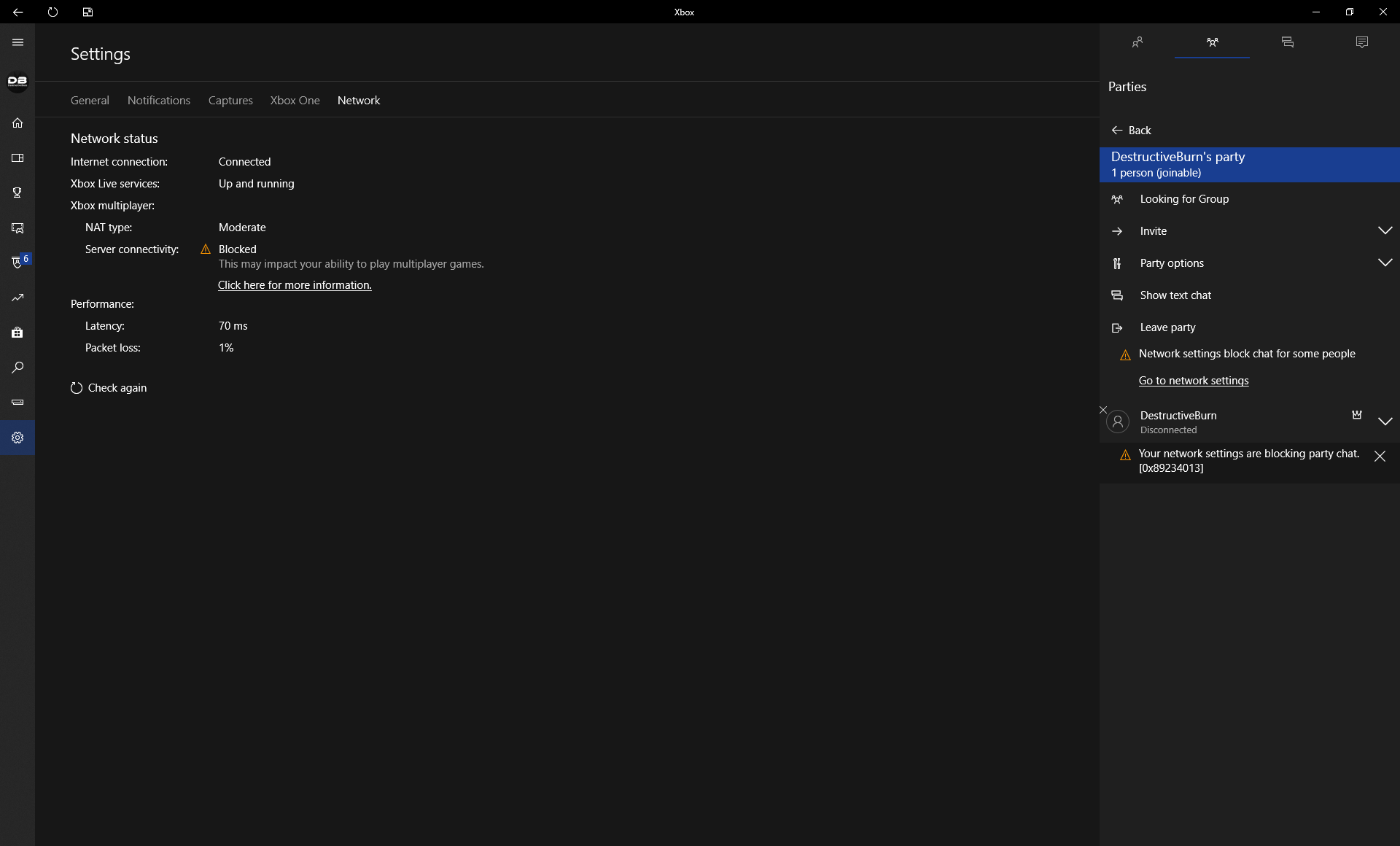

in the network section it says:

internet connection: connected

xbox live services: up and running

xbox multiplayer:

NAT type: moderate

server connectivity: Blocked

this may impact your ability to play multiplayer games

performance:

latency: 221ms

packet loss: 0%

can someone help me plz?



Xbox App "Server Connectivity" "Blocked"

Hi,

There are several reasons why the Xbox app server connectivity is blocked. It is possible that
your PC was unable to establish a Teredo IPsec connection to the Quality of Service (QoS) server or your Firewall settings are blocking the connection. To properly isolate your concern, please provide us the following information:

• Is your computer connected to a wired or wireless internet connection?
• Have you made any changes on your computer prior to the issue?
• Are you experiencing the same issue in safe mode with networking? To start Windows in safe mode with networking, you can follow the steps on this

  link.

In the meantime, you can perform the suggested solutions on this
link.



"Server connectivity = blocked" on Xbox app on Windows 10

Hi MoonBunny17,

If your server connectivity is "Blocked", it means that your computer was unable to establish a Teredo IPsec connection to the Quality of Service (QoS) server. Since you've tried the troubleshooting steps from our support page, let's try to restart the "IP
Helper" and "Xbox Networking Service" by performing the following steps below:

1. Press the Windows Key + R to open the Run box.
2. Type "services" and hit enter to open the Services Window
3. Scroll down until you find an entry called “IP Helper”. Right-click on it, and then click Restart.
4. Scroll all the way down to the bottom and do the same thing for “Xbox Live Networking Service”.
5. Close the window, open the Xbox app and check your connection again.

If the issue persists, I recommend that you try connecting your computer to another network to see if that will change the server connectivity on the Xbox app.

Keep us updated with the results after performing the suggested solutions above.
