Windows 10: 128gb M.2 SSD won’t initialise

Hi all,


Just purchased a used Kingston 128gb M.2 SSD for my computer and when I have installed it and turned on the PC, in disk management it is showing as a 476.9GB disk where when you click properties is called “Intel Raid 0 Volume”. When i attempt to initialise the disk the option is greyed out and if i try to set the disk to offline I get the error “Data error (cyclic redundancy check)”. How do i get this drive to show as rhe 128gb drive it is meant to be and get out of this error.

:)



How to check M.2 SSD Health ?

Hi friends,

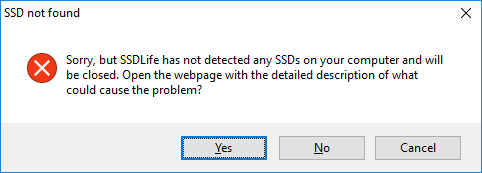

I have a problem while checking my SSD Health. The application like SSD-Life can't recognize my M.2 SSD. My Notebook is HP Spectre 13.

Any suggestion ?

Thanks



M.2 SSD not being able to boot from it, windows doesn't recognise.


Ok, this is what happened after all the comments and suggestions, @Dude: Thanx for the video, my mb had non e of those settings, it had the raid/option memory gene or achi. Can only choose one or the other. @Saltgrass, my settings did point out auto and enabled the pcie x4, gen 3. I did an bios flash as suggested, because my bios was not the latest version, after a reformat the m.2 was picked up, still cant install OS onto it as it states legacy not found, removed my dvd rom from the sata port to another, and the drive was found and installed. Only issue now is that it's still not my OS drive but it at least now works and is installed, but on the Intel rst drive the obtain memory gene option to enable is greyed out, and shows as disabled. However the program lists the M.2 and it is working 100%,. I installed overwhatch onto it, it performs perfectly. But will update the intel driver tonight and see if that makes any difference. Seems the bios flash enabled the settings listed by @Dude that was not present pre-flash.

So the m.2 drive works. I can game off it and install omnto it. Can not install windows on it, gene memmory is enabled, pcie x4 is on and on auto detect, Motherbaord lists all the drives connected, motherboard ahs been updated to latest bios. After flash new settings became available, m.2 is now on memmory gene enabled not achi, windows os is enabled and fast boost is enabled, intel rst is installed and lists all the ssds and the m.2, however the m.2 on memmory gene is dissabled and the option to enable is greyed out. Will update the driver as Essenbe suggested of the m.2 and see if anything changes. Thank you all for the help, I can now atleast use my m.2



SSD won't initialise, or partition.

I wanted to do a clean install of Windows 10, so I entered
DiskPart and performed a "clean" on the SSD, when I suffered a power loss.

After booting the machine back up, I was greeted with a "Recovery: Your PC needs to be repaired. Error 0xc0000034" which I was able to work around by removing the SSD and inserting my USB created with the Media Creation Tool.

When I progressed far enough to select a drive to install Windows 10 on, I plugged the SSD back in. It didn't show.

I removed the SSD again, and have it connected to a different machine via a SATA to USB cable. I opened up Disk Management, where the disk was visible but Not Initialised. I attempted to initialise it, but was told "The specified disk is not convertible
because the size is less than the minimum size required for GPT disks" and so I took to DiskPart once more to attempt to fix the problem.

Listing the disks, I see the SSD with the following information:

Disk ### Status Size Free Dyn Gpt

-------- --------- ----- ---- --- ---

Disk 2 Online 0 B 0 B

Selecting Disk 2, I attempted to create a primary partition, but "DiskPart has encountered an error: The device is not ready."

Everything I do seems to have no effect.

What can I do? There's nothing on the drive for me to lose, so I'm open to anything.

Best,

Thomas
