Windows 10: 2.5" Samsung EVO SSD, will it work on a desktop PC power-sata cables?

I was thinking of buying a 2.5" SSD. Do they just plug into the same cables as a 3.5" hard drive?

:)



Win10 clean install on Samsung SSD 850 EVO

BLUF: SSD is not listed ubder "Where do you want to install Windows?"

Steps Complete:

1. I've create a Win10 bootable install usb.

2. I connect the new Samsung SSD 850 EVO via SATA.

3. I reboot PC and verify SSD is seen by the motherboard/BIOS

4. Begin Win10 install via usb.

5. Get to "Where do you want to install Windows?" and the SSD is not listed

Problems:

1. Samsung does not offer a driver for the 850 on their website

2. Cannot locate driver elsewhere

Unsuccessful Mitigations Steps Attempt:

A. Format & partition SSD via Windows Disk Management, then retried steps 1-5 above....same result

B. Clone existing HHD onto SSD via "Image for Windows" by TeraByte, then verified SSD contents via Windows Explorer....similar result

Can you please offer some advice on locating a driver for a Samsung SSD 850 EVO 1TB drive? Or an alternative method?

Thank you



SSD samsung evo and amd drivers

Hi,

Thank you for writing to Microsoft Community Forums.

The issue could be because of the AMD drivers installed on the computer.

Since the Samsung SSD is working fine with the Microsoft AHCI driver, I suggest you to update the AMD driver and check if that helps. To update the AMD drivers follow the steps from the article

Update drivers in Windows 10.

If updating the drivers didn’t help, I suggest you to roll back the driver to previous build and check if that helps. To roll back the driver to previous build follow the steps mentioned below:

1. Press and hold the Windows + X key on the keyboard.

2. Select Device manager.

3. In Device manager, expand IDE ATA/ATAPI controllers.

4. Right click on AMD SATA Controller and select
   Properties.

5. Navigate to the Driver tab and click on Roll Back Driver.

6. Restart the computer.


Hope it helps.

Nikhar Khare

Microsoft Community - Moderator



Samsung 860 Evo SSD Spotted In SATA-IO Listing

The Samsung 850 EVO SSD has been in the market for almost three years now. In what seems to be an eternity in tech years the 850 EVO SSD, sporting the 3D NAND flash memory, has held its own in the consumer space. Back when it was released, the 850 EVO SSD heralded a new generation of price and performance combination that established it in the high end enthusiast market. With sequential read speeds of up to 550 MB/s and sequential write speeds of up to 520 MB/s, 4 KB Random Read of up to 100,000 IOPS and 4KB Random Write of up to 90,000 IOPS, the 850 EVO solidified and marked a new era of SSD computing.

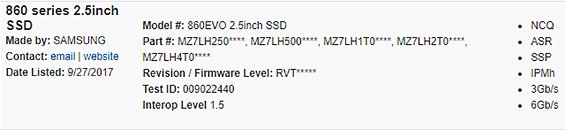

But now it looks like the 860 EVO will take over where the 850 EVO left off. The 860 EVO SSD has been spotted in the database of the Serial ATA International Organization (SATA-IO) in the integrators listing as having passed interoperability. The 860 comes in variants of 250 GB, 500 GB, 1 TB, 2 TB and 4 TB SATA III in a 2.5-inch 7 mm form factor with support for Native Command Queuing (NCQ), ASR, SSP, IPMh, 3 Gb/s and 6 Gb/s transfer speeds. The 250GB drive is labeled under MZ7LH250**** with the following, 500****, 1T0****, 2T0**** marked respectively. No announcement has been made by Samsung.





Source: SATA-IO
