Windows 10: 3D Builder can't intersect, subtract or place objects inside of other objects

I'm really disappointed at all the changes made to 3D builder after the last update. They broke tons of functionality and added none it seems.


I'm trying to place an object inside of another so I can use the subtract functionality, but it seems that there is some lock turned on where I can't move anything inside of any other object. Almost like a setting where it prevents any objects from overlapping others.


There has to be a way to turn this off because it would make the intersect and subtract functions completely useless.


Help?

:)



3D Builder can't intersect or place objects inside of other objects

I'm really disappointed at all the changes made to 3D builder after the last update. They broke tons of functionality and added none it seems.

I'm trying to place an object inside of another so I can use the subtract functionality, but it seems that there is some lock turned on where I can't move anything inside of any other object. Almost like a setting where it prevents any objects from overlapping
others.

There has to be a way to turn this off because it would make the intersect and subtract functions completely useless.

Help?



Object in Microsoft 3D Builder

Could you tell me how to make annotations if I want to show dimensions of the object in Microsoft 3D Builder?

I’d like to demonstrate the object with its size on a 3D viewer. Thank you.

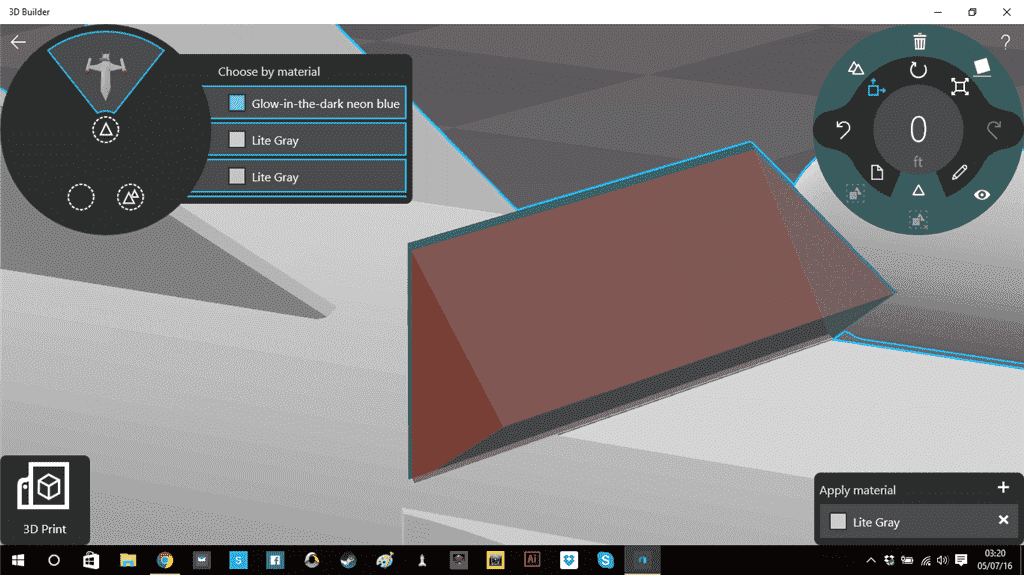

Red silhouette of the object appears when using substract tool on 3D Builder

Original title:- 3d Builder - Red Silhouettes

When using the Subtract tool in 3-D Builder, I sometimes am left with a red silhouette of the object I subtracted, or part of the object. It is registering as part of the remaining shape so I can't delete it. I have tried undo, then redoing the subtract
& get the same result.
