Windows 10: ASUS Zenith Extreme - Wake on LAN not working from android

I cannot find anything relating to this specific motherboard. The ASUS Zenith Extreme.

Here's what I've tried so far. If anyone owns this motherboard and got WOL working then please let me know if I missed out on any steps.

• I have the latest bios update Version 2001 for Windows 10 18363.


• Have the latest drivers for my onboard Intel(R) I211 Gigabit with IP shown in the screenshots below 192.168.1.89

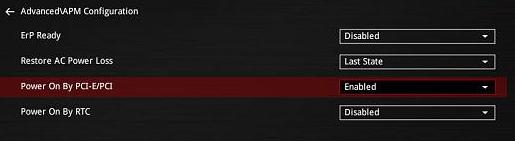

• Enabled the Power On By PCI-E/PCI in the BIOS.






• Disabled the fast boot in the BIOS.

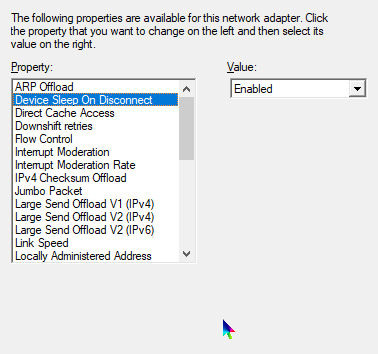

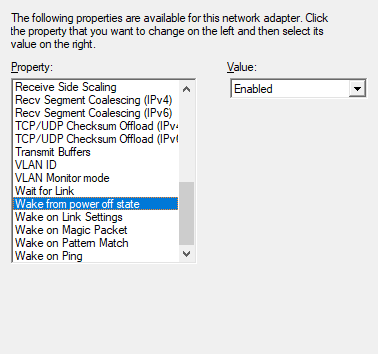

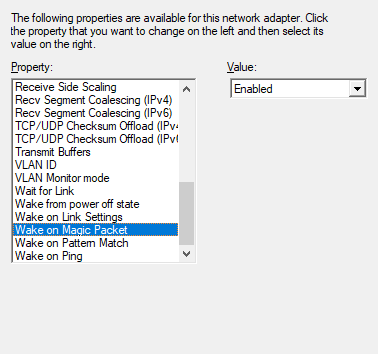

• Enabled these settings in the adapter card settings in Device Manager:

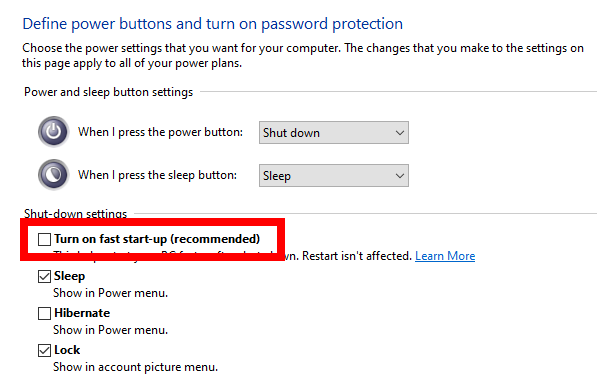

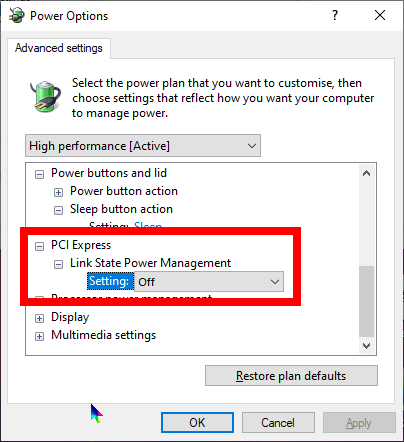

• Power Options

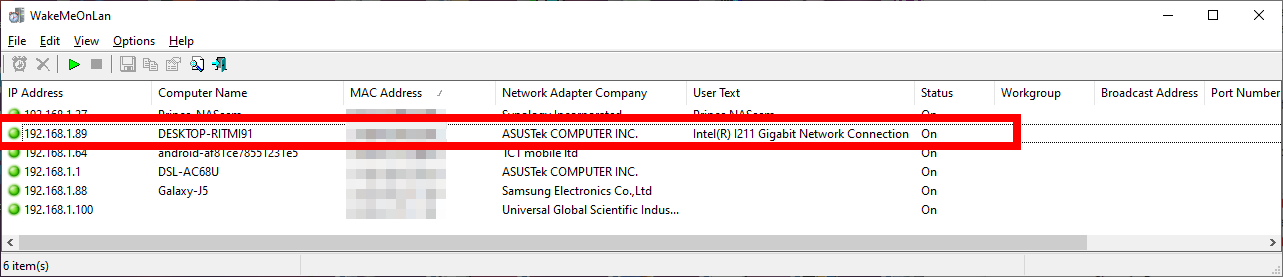

• WakeMeOnLan utility from Nir Sofer

  This shows all the devices in green meaning that they're all on, in which case this is correct.

  From here, I know that the values are correct to enter into the app from the play store.

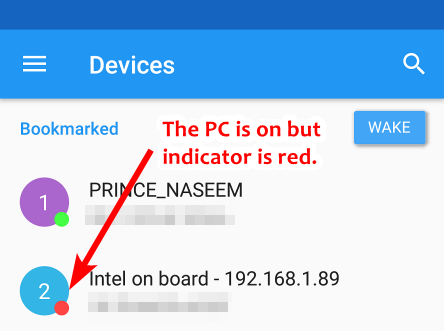

• I then downloaded this from the Play Store. Wake on LAN and entered the same values but it won't wake the PC and the app shows no green overlay to show that it's on like how WakeMeOnLan shows.






• I've also download WakeOnLAN https://wol.aquilatech.com/ and entered in the exact same details there and managed to restart my PC using that, although this was installed on the same machine as I was restarting. But this tells me that it can work but getting it to work with any mobile app isn't working out.


Any help here would be great to fix this issue.

:)



ASUS Zenith Extreme - Wake on LAN not working from android

Yes, I forgot to add that. I've tried that much to get this working I've lost track.

That's the reason I just setting the power to high performance.





I'm thinking there's maybe some port forwarding to do in the router perhaps?



ASUS Zenith Extreme - Wake on LAN not working from android

I cannot find anything relating to this specific motherboard. The ASUS Zenith Extreme.

Here's what I've tried so far. If anyone owns this motherboard and got WOL working then please let me know if I missed out on any steps.

• I have the latest bios update Version 2001 for Windows 10 18363.


• Have the latest drivers for my onboard Intel(R) I211 Gigabit with IP shown in the screenshots below 192.168.1.89


• Enabled the Power On By PCI-E/PCI in the BIOS.






• Disabled the fast boot in the BIOS.


• Enabled these settings in the adapter card settings in Device Manager:


















• Power Options









• WakeMeOnLan utility from Nir Sofer

  This shows all the devices in green meaning that they're all on, in which case this is correct.

  From here, I know that the values are correct to enter into the app from the play store.






• I then downloaded this from the Play Store. Wake on LAN and entered the same values but it won't wake the PC and the app shows no green overlay to show that it's on like how WakeMeOnLan shows.






• I've also download WakeOnLAN WakeOnLAN - WakeOnLAN and entered in the exact same details there and managed to restart my PC using that, although this was installed on the same machine as I was restarting. But this tells me that it can work but getting it to work with any mobile app isn't working out.


Any help here would be great to fix this issue.



ASUS Zenith Extreme - Wake on LAN not working from android

Can you wake this device from another PC's on Lan?
