Windows 10: ATA Channels 0 and 1 showing twice - SSD AHCI + WD Normal HD both SATA 2

Discus and support ATA Channels 0 and 1 showing twice - SSD AHCI + WD Normal HD both SATA 2 in Windows 10 Drivers and Hardware to solve the problem; I have a Q9550 running Windows 10 on a Gigabyte GA-EP45-UD3Rmotherboard. I recently learned that my Samsung EVO 850 SSD was incorrectly using IDE. I... Discussion in 'Windows 10 Drivers and Hardware' started by damoses1, Jun 11, 2020.

  1. damoses1 Win User

    ATA Channels 0 and 1 showing twice - SSD AHCI + WD Normal HD both SATA 2

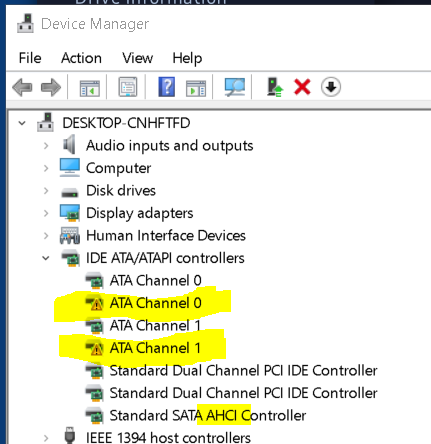

    I have a Q9550 running Windows 10 on a Gigabyte GA-EP45-UD3Rmotherboard. I recently learned that my Samsung EVO 850 SSD was incorrectly using IDE. I changed the registry and bios to AHCI for the SSD, however, I'm now seeing two channels for 0 and 1 in my device manager. One says it's functioning correctly and the other says there's an error. On benchmark tests, my SSD is underperforming but in Samsung Magician it says it's using AHCI. My WD IDE HD is also underperforming but I don't know if it's just due to the age of the PC. Drivers are all updated to the latest. What am I missing? Please help!


    My SSD is in Sata port 0 and my WD IDE HD is in port 1. ATA Channels 0 and 1 showing twice - SSD AHCI + WD Normal HD both SATA 2 1b7a6856-82f7-4e70-a010-0f430533ca1c?upload=true.png ATA Channels 0 and 1 showing twice - SSD AHCI + WD Normal HD both SATA 2 3881a33d-bd62-41dd-95d6-68e3a1f66cde?upload=true.png

    :)

    damoses1, Jun 11, 2020
    #1
  2. slance310 Win User

    Removing both ATA Channel 0 and ATA Channel 1 drivers, causes DVD/HDD issues

    Hi,

    You might want to check out your SATA Controller drivers...

    Do you by chance have TWO Channel 0 and Channel 1 ?

    My machine does because it has two different SATA Controllers...

    Is it possible that those two SATA Channels are configured as "RAID" in your Bios, or are using a RAID driver instead of a standard AHCI\ATA\IDE setting ?

    BTW... CyberLink has been known to cause issues with CD\DVD drives after a major upgrade to another Windows Build...

    If I remember the programs causing issues may be PowerDVD and possibly Power2Go..

    I think this was version 10, but there may be others...

    slance310, Jun 11, 2020
    #2
  3. Catalyst 10.9 AHCI question

    When I installed the AHCI in my computer in the hardware list it was listing all the SATA in IDE/ATAPI section and written AHCI 1.0. Now that I installed the 10.9 AHCI drive from ATI website its now having only those 4:
    -AMD Sata controller
    -ATA channel 0
    -ATA channel 1
    -IDE controller standard double canal PCI.

    Do I still have the AHCI function?

    MohawkAngel, Jun 11, 2020
    #3
  4. ATA Channels 0 and 1 showing twice - SSD AHCI + WD Normal HD both SATA 2

    Windows 10 Freezes When Optical Drive is Used

    IDE ATA/ATAPi Controllers are as follows -

    ATA Channel 0

    ATA Channel 0

    ATA Channel 1

    ATA Channel 1

    Standard Dual Channel PCI IDE Controller

    Standard Dual Channel PCI IDE Controller

    Standard SATA AHCI Controller

    Storage Controllers -

    Microsoft Storage Spaces Controllers

    I currently have a SSD as my primary storage (OS installed)

    A SATA HDD as additional storage

    and an External USB 3.0 drive for non-essential media.

    ThomasPringle, Jun 11, 2020
    #4
