Windows 10: Automatic repair loop with C drive being raw

I'll try to be detail as much as possible so it'll be long, but im just trying to be descriptive as possible! So kindly bear with me!My PC suddenly hanged and became irresponsive, cursor was moving but mouse clicks have no effect!So i tried to open the task manager using the keyboard shortcut - screen still irresponsive i tried switching off the system using alt+f4 - screen still irresponsiveThen i press the power button multiple times - screen still irresponsiveThen i tried to switch the UPS off and just milliseconds before I could switch off the ups - a window appeared saying something like

:)



Stuck in startup repair boot loop, C drive is in RAW

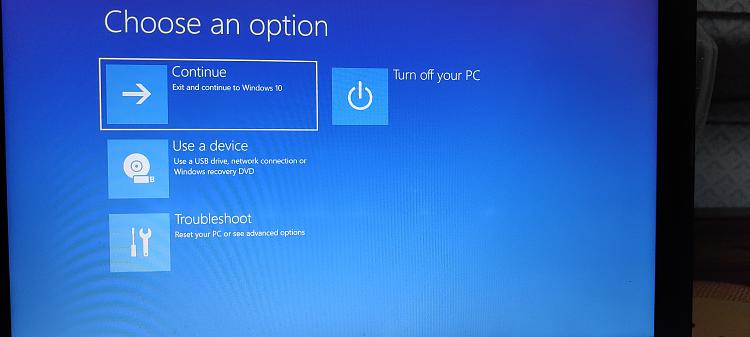

I am not getting that error now. So I don't remember the exact words. Now after 'preparing for automatic repair' and spinning dots, windows starts and I see this screen.

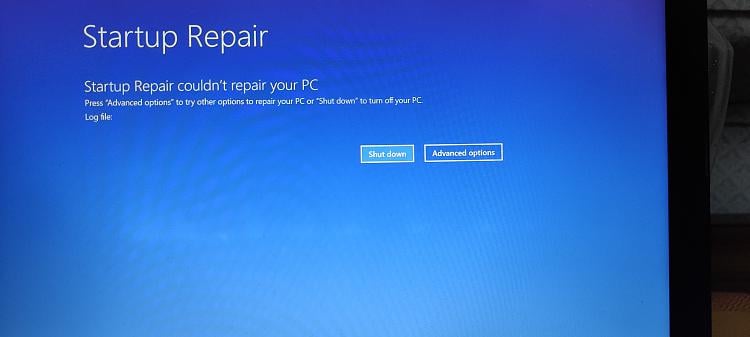

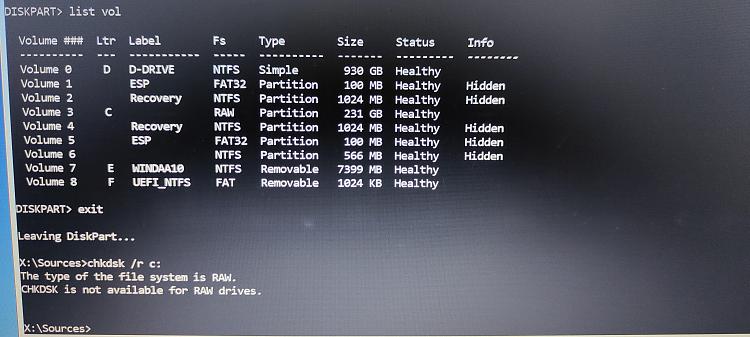

After running startup repair using the bootable win 10 usb, I got this error.

How do I check esp partition and what exactly do I check in it? How do I format it and recreate the boot critical files? Please share step by step methods.I'm doing all this for the first time.



Stuck in startup repair boot loop, C drive is in RAW

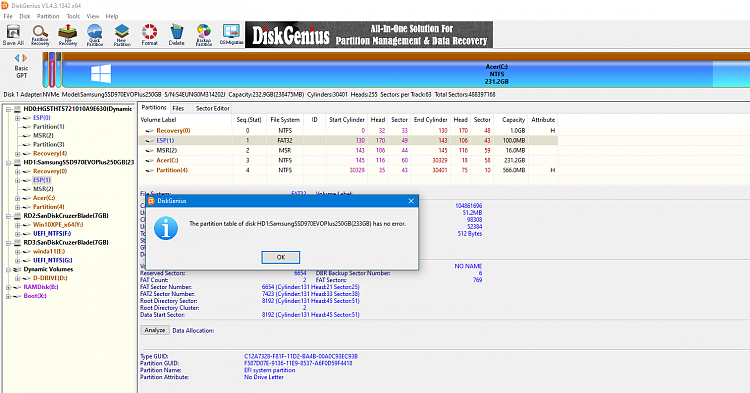

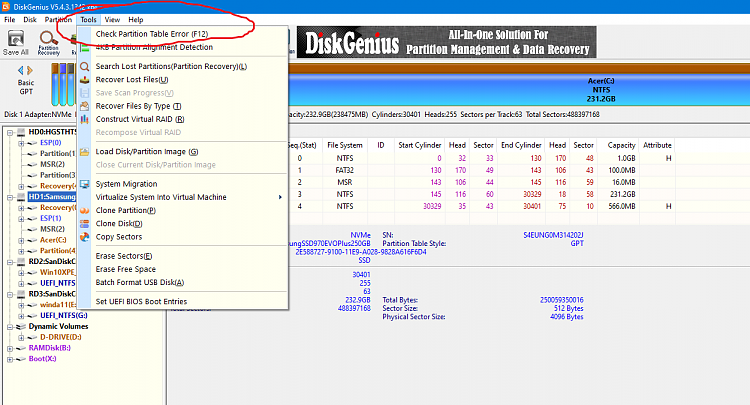

Okay. I'll try with disk genius. - - - Updated - - - Okay I tried this command with disk genius.

I got this result.

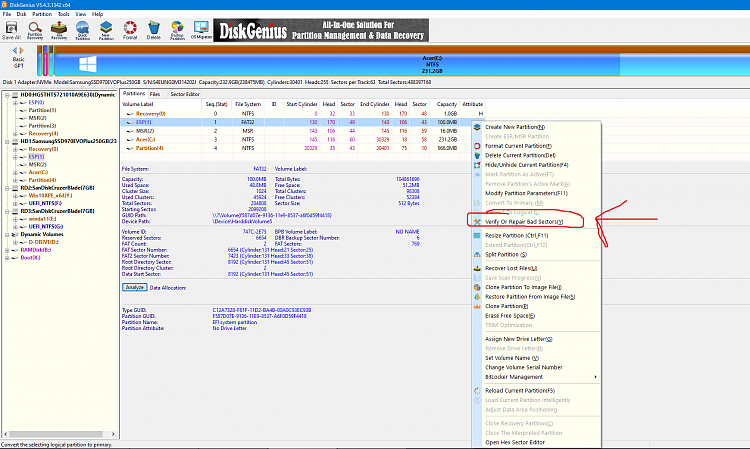

Then I tried this command.

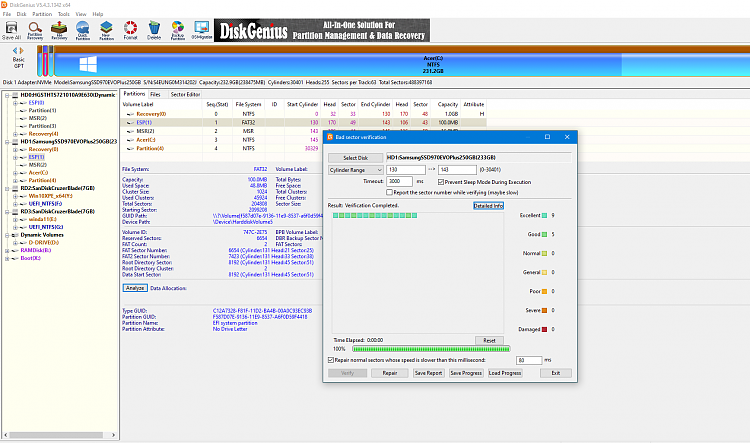

and got this result.

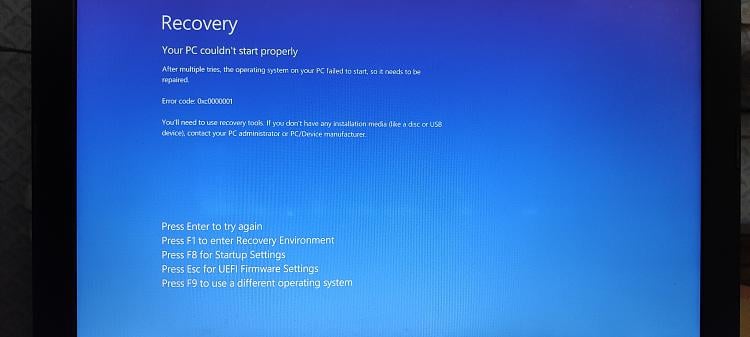

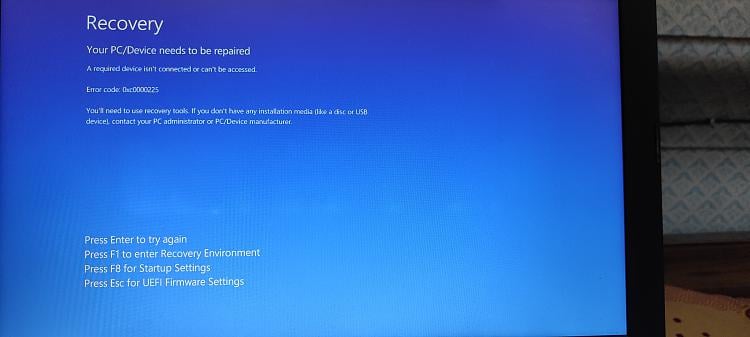

I forgot to mention earlier. 1 hour back, when I checked my C drive it is back to normal. I was able to run chkdsk /f and /r These analyses were done after that. The issue hasn't got resolved yet and I'm still stuck on the startup repair loop. - - - Updated - - - Okay. So I eventually created an image of my C partition using Macrium Reflect PE environment. Everything went fine. For some unknown reason, the image was of approximately 100gb in size whereas my C partition was occupied upto almost 175 GB. Then I booted using the windows 10 USB and deleted all the partitions of the C drive during the installation menu that asks for the location of windows 10. Then I chose the newly formatted C partition to install windows. The installation went fine. I got to the desktop wallpaper screens and icons. Then I booted using Macrium and restored using the image file. After I restarted my laptop. I got this error.

After pressing enter, I got this.

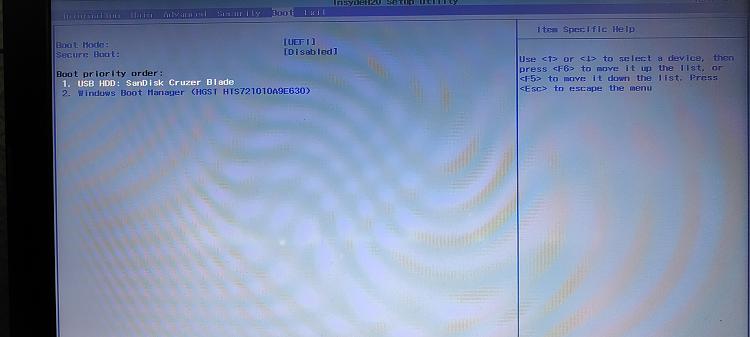

Then I checked in the boot menu of my BIOS. To my surprise, my SSD was not listed in the boot menu. Don’t know why.

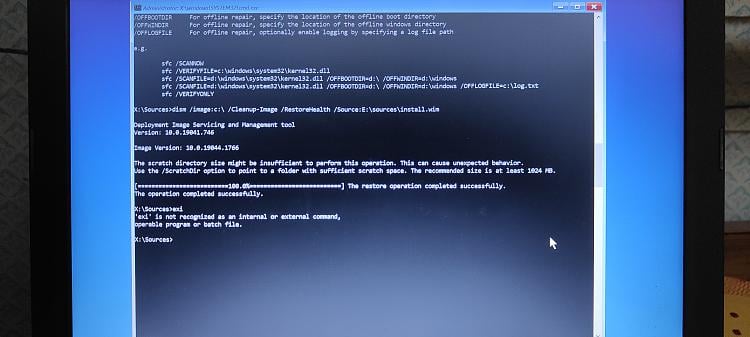

Then I booted using Win 10 USB, and ran sfc scannow. I also ran DISM, trying to restore the image from the official windows files present on the usb drive and got these results.

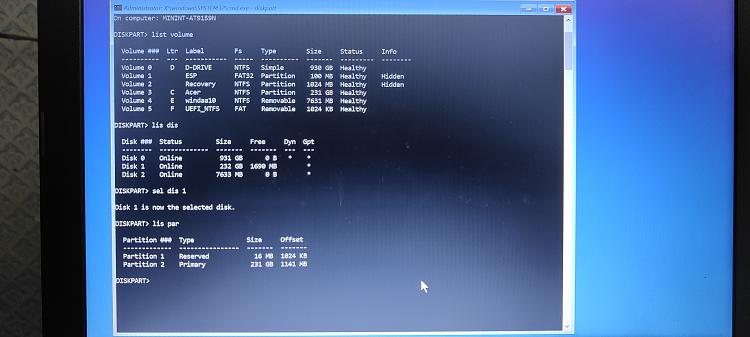

Upon checking the volume information, I got this.

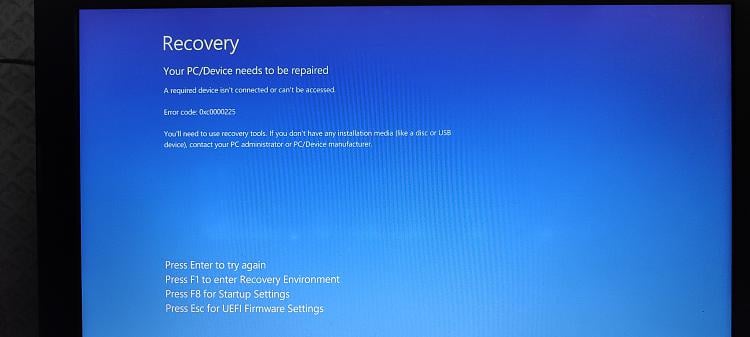

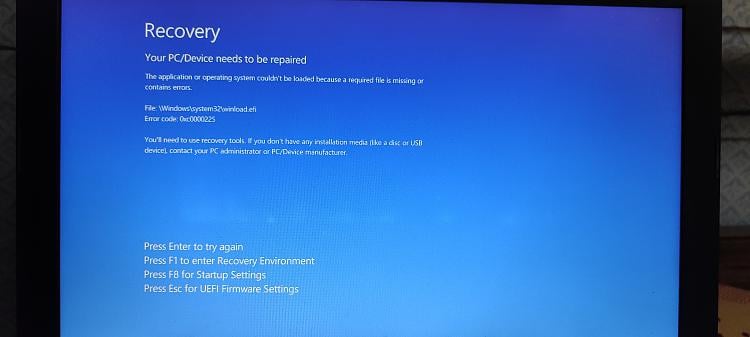

I also tried to fix the bcd using the following commands. bcdboot c:\Windows /s Z: /f ALL The letter Z was assigned to the 100mb ESP partition on the D drive Now this 100mb partition is present on my D drive (SATA). The bcd fixing went well. I got the message ‘Boot files successfully created’ Unfortunately I didn’t click a photograph of the result. Now I booted again in windows and I am seeing this result.

After pressing enter, I got this.

Now I am stuck and absolutely clueless about my next step. Please advise.



Stuck in startup repair boot loop, C drive is in RAW

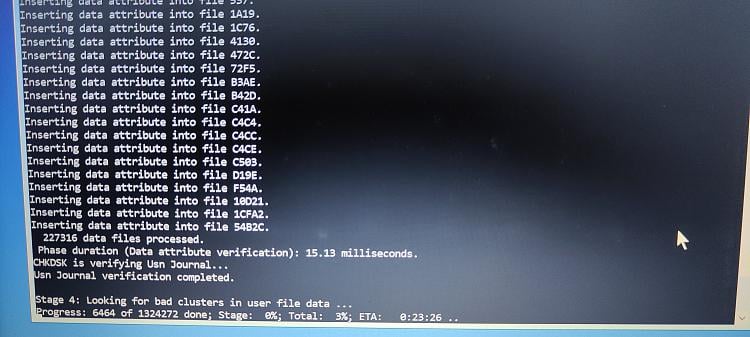

Okay. Some development. I haven't used Windows PE yet. I tried to run chkdsk on c drive in the windows advanced recovery. Here's what I saw initially while the process was running.

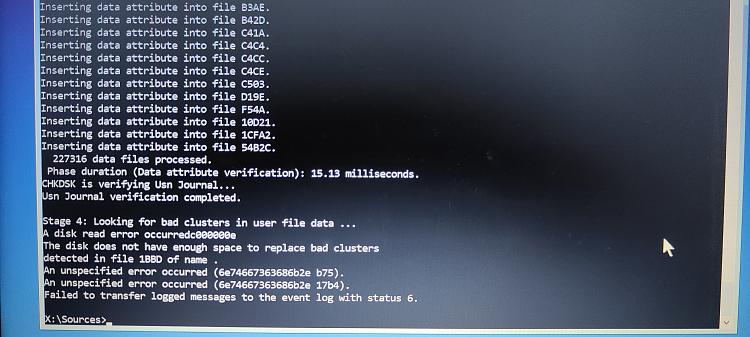

When I ran chkdsk again on C drive, I got this error.
