Windows 10: Battery Charging Indicator

Discus and support Battery Charging Indicator in Windows 10 Drivers and Hardware to solve the problem; As the PC power level drops below a certain level an message appears to "plug in the charger", a few seconds later another message appears "shutting... Discussion in 'Windows 10 Drivers and Hardware' started by Ntracs, Sep 15, 2020.

  1. Ntracs Win User

    Battery Charging Indicator


    As the PC power level drops below a certain level an message appears to "plug in the charger", a few seconds later another message appears "shutting down the computer". By the time I plug in the power supply the computer has shut down

    To assist me in paying more attention to the battery icon, how can I copy it the desktop where I can monitor it more consistently

    Thanks

    :)

    Ntracs, Sep 15, 2020
    #1

  2. Battery Won't Charge Fully

    Make sure to install all Windows important updates.

    Install latest versions of your laptop device drivers you can download the latest device drivers from the device manufacturer or from your laptop manufacturer website.


    Step 1

    1. Shutdown your laptop.

    2. Remove the battery.

    3. Connect the AC power adapter to your laptop.

    4. Power on the laptop

    5. Open the Device Manager by typing Devmgmt.msc into Start Menu or from Control Panel.

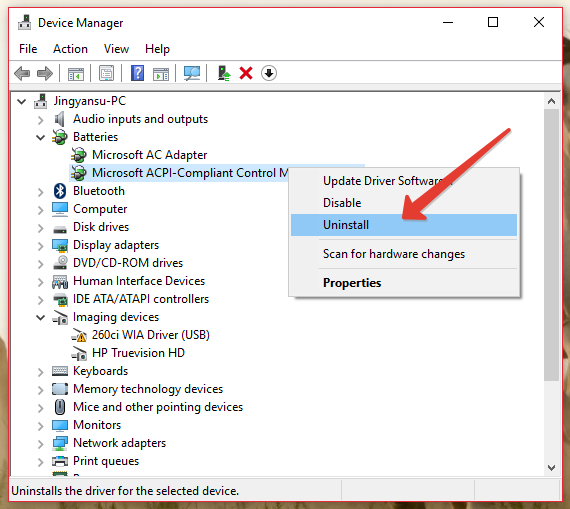

    6. Under the Batteries category, right-click all of the Microsoft ACPI Compliant Control Method Battery listings, and select Uninstall (it’s ok if you only have 1).


    Battery Charging Indicator pbDp4sx.png


    7. Shutdown the laptop.

    8. Insert the battery.

    9. Power on the laptop.

    If above suggestions wont resolve the battery charge issue then follow below steps.




    Step 2

    1. Shutdown the laptop.

    2. Remove the battery.

    3. Start the laptop with only AC adapter connected to laptop.

    4. When you login to Windows OS connect the battery while Windows OS working.





    Step 3

    Reset the System Management Controller. Use one of these methods to reset the SMC, which controls battery management, battery status light.

    1. Shut down the computer and disconnect the power cord.

    2. Remove the battery.

    3. Press and hold the power button for ten seconds.

    4. Reattach the battery and AC power adapter, then start up the laptop.


    Hopefully one of the above suggestions will help you resolve the battery not charging problem. If battery still doesn't charge, you may need to replace your battery.

    FreeBooter, Sep 15, 2020
    #2
  3. Plugged in but battery does not charge

    If the laptop works without the battery then charger is functioning correctly. Take a cloth with a bit of rubbing alcohol on it (or some on-the-go alcohol swabs), and clean the metal contacts that connect your battery to your laptop.

    Make sure to install all Windows important updates.

    Install latest versions of your laptop device drivers you can download the latest device drivers from the device manufacturer or from your laptop manufacturer website.


    Step 1

    1. Shutdown your laptop.

    2. Remove the battery.

    3. Connect the AC power adapter to your laptop.

    4. Power on the laptop

    5. Open the Device Manager by typing Devmgmt.msc into Start Menu or from Control Panel.

    6. Under the Batteries category, right-click all of the Microsoft ACPI Compliant Control Method Battery listings, and select Uninstall (it’s ok if you only have 1).


    Battery Charging Indicator pbDp4sx.png


    7. Shutdown the laptop.

    8. Insert the battery.

    9. Power on the laptop.

    If above suggestions wont resolve the battery charge issue then follow below steps.




    Step 2

    1. Shutdown the laptop.

    2. Remove the battery.

    3. Start the laptop with only AC adapter connected to laptop.

    4. When you login to Windows OS connect the battery while Windows OS working.





    Step 3

    Reset the System Management Controller. Use one of these methods to reset the SMC, which controls battery management, battery status light.

    1. Shut down the computer and disconnect the power cord.

    2. Remove the battery.

    3. Press and hold the power button for ten seconds.

    4. Reattach the battery and AC power adapter, then start up the laptop.


    Hopefully one of the above suggestions will help you resolve the battery not charging problem. If battery still doesn't charge, you may need to replace your battery.

    FreeBooter, Sep 15, 2020
    #3
  4. SJMaye Win User

    Battery Charging Indicator

    Tablet seems dead, but battery indicator shows charged.

    I have a cheap Windows 10 (upgraded) tablet. It is a Best Buy Unbranded model UB15MS10. It has been having problems starting up and the battery seems weak even though the battery charge indicator shows near full.

    When plugged in to the charger the red charging indicator LED is off which indicates it does not need charging and is not charging, however, when I pull the usb charging cable out of the tablet the screen goes black.

    My gut tells me regardless of what the battery charge indicator says the battery is not charged, is bad and needs replacement. Before trying to find a battery and go through replacement I would like to know for sure. Can someone help me with some troubleshooting tips?

    SJMaye, Sep 15, 2020
    #4
