Windows 10: BitLocker TPM Group Policy difference between Allow and Require

Hello,

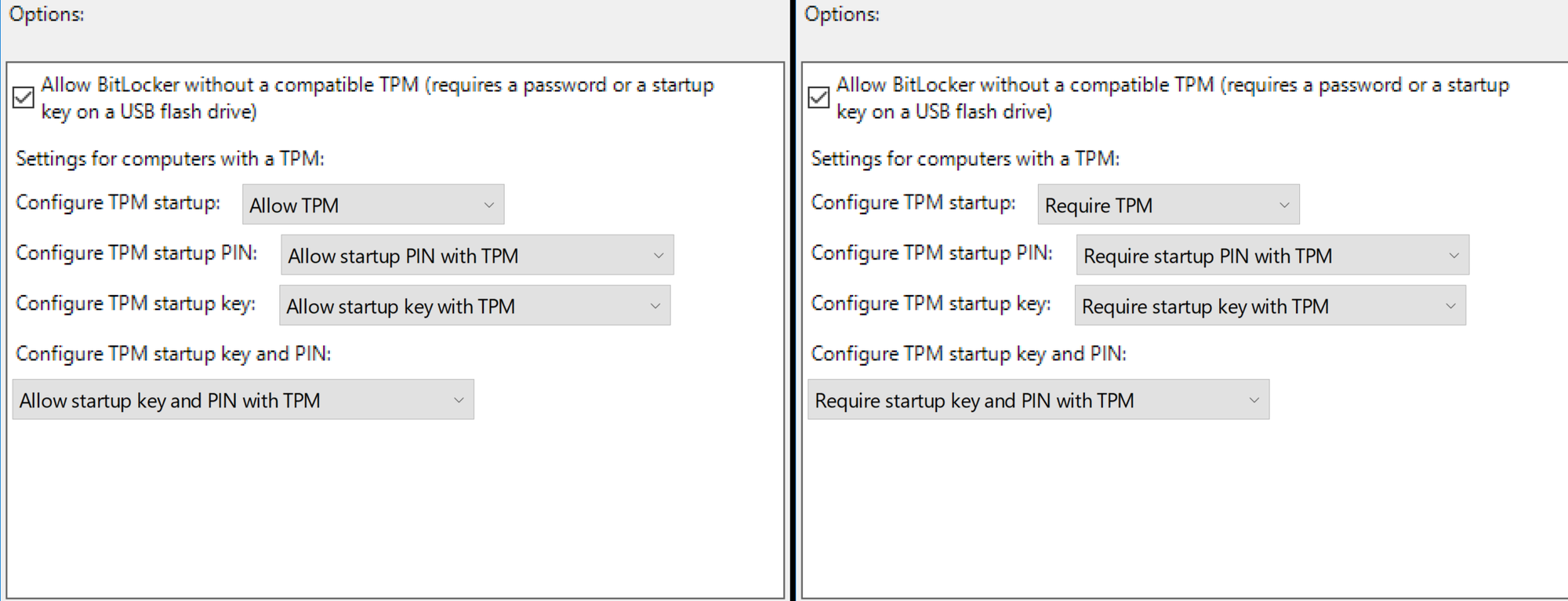

could somebody please explain the differences between "Allow" and "Require" for EACH of these BitLocker Group Policy options:

1. Configure TPM startup: "Allow TPM" vs "Require TPM"
2. Configure TPM startup PIN: "Allow startup PIN with TPM" vs "Require startup PIN with TPM"
3. Configure TPM startup key: "Allow startup key with TPM" vs "Require startup key with TPM"
4. Configure TPM startup key and PIN: "Allow startup key and PIN with TPM" vs "Require startup key and PIN with TPM"

Help is very appreciated!

:)



Bitlocker without TPM

Hi there,

I'm trying to use Bitlocker without TPM

My version is Windows 10 Home, and I try to follow -

To turn on BitLocker Drive Encryption on a computer without a compatible TPM

1. Click Start, type gpedit.mscin the Start Search box, and then press ENTER.
2. If the User Account Control dialog box appears, confirm that the action it displays is what you want, and then click Continue.
3. In the Local Group Policy Editor console tree, click Local Computer Policy, click Administrative Templates, click Windows Components, and then clickBitLocker Drive Encryption.
4. Double-click the setting Control Panel Setup: Enable Advanced Startup Options.
5. Select the Enabled option, select the Allow BitLocker without a compatible TPM check box, and then click OK.

You have changed the policy setting so that you can use a startup key instead of a TPM.

1. Close the Local Group Policy Editor.
2. To force Group Policy to apply immediately, you can click Start, typegpupdate.exe /forcein the Start Search box, and then press ENTER.
3. Click Start, click Control Panel, click Security, and then click BitLocker Drive Encryption.
4. If the User Account Control dialog box appears, confirm that the action it displays is what you want, and then click Continue.
5. On the BitLocker Drive Encryption page, click Turn On BitLocker. This will only appear with the operating system volume.
6. On the Set BitLocker Startup Preferences page, select the Require Startup USB Key at every startup option. This is the only option available for non-TPM configurations. This key must be inserted each time before you start
   the computer.
7. Insert your USB flash drive in the computer, if it is not already there.
8. On the Save your Startup Key page, choose the location of your USB flash drive, and then click Save.
9. On the Save the recovery password page, you will see the following options:

· Save the password on a USB drive. Saves the password to a USB flash drive.

· Save the password in a folder. Saves the password to a folder on a network drive or other location.

· Print the password. Prints the password

While I have a problem on step 4.

Double-click the setting Control Panel Setup: Enable Advanced Startup Options.

I can find "BitLocker Drive Encryption" on my group policy editor, while I cannot find
Control Panel Setup: Enable Advanced Startup Options anywhere.

Thank you for your help.

Best Regards,

Yan



How to set up BitLocker on a pc without TPM

I found the following instructions and they work:

"Thank you for being a part of Windows 10 Technical Preview testing.

You can use Bit locker in Windows 10 without TPM. I would suggest you to try the following steps.

How to Configure Computer to Enable BitLocker without Compatible TPM:

Administrators must follow the steps below to configure their Windows 8 computers to allow enabling Bit Locker Drive Encryption without compatible TPM:

a. Log on to Windows 10 computer with the account that has administrative privileges.

b. Assuming that the computer has been configured to display classic start menu, click Start and at the bottom of the menu in search box type GPEDIT.MSC command and press enter key.

c. On the opened Local Group Policy Editor snap-in from the left pane expand Computer Configuration > Administrative Templates > Windows Components > Bit Locker Drive Encryption and from the expanded list click to select Operating System Devices.

d. From the right pane double-click “Require additional authentication” at startup.

e. On the opened box click to select Enabled radio button and ensure that under Options section Allow Bit Locker without a compatible TPM checkbox is checked.

f. Once done, click Ok button to allow the changes to take effect and close Local Group Policy Editor snap-in."

I never could have set up Bitlocker without this.



group policy query

Hi

Group Policy and Bitlocker encryption is not included in the Home versions of Windows.

Additional requirements to use certain features:

How to Check Windows 10 Computer System Specs & Requirements - Microsoft

• BitLocker To Go requires a USB flash drive (Windows 10 Pro only).

• BitLocker requires either Trusted Platform Module (TPM) 1.2, TPM 2.0 or a USB flash drive
  (Windows 10 Pro and Windows 10 Enterprise only).

Download the Edition Comparisons (.PDF):

http://download.microsoft.com/downl...-DE018B0CD3E5/Windows 10 Compare Editions.pdf

Regards
